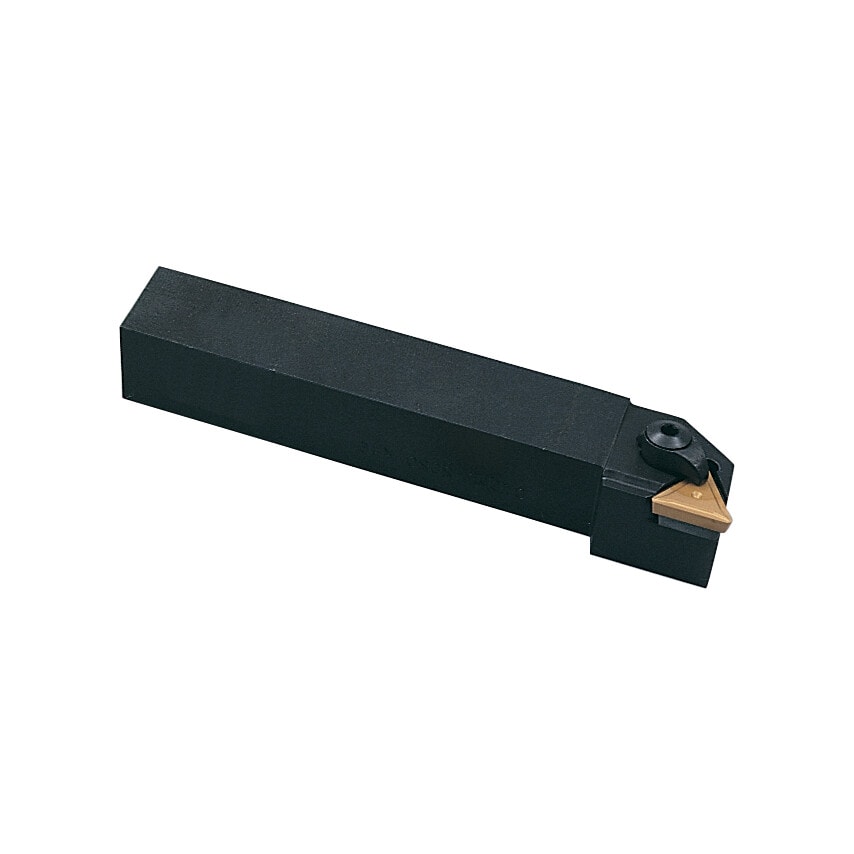

90 approach for 11 positive triangular inserts.
| MFR Part No. | CTGPL2020K16 |
| Set Type | Individual Toolholder |

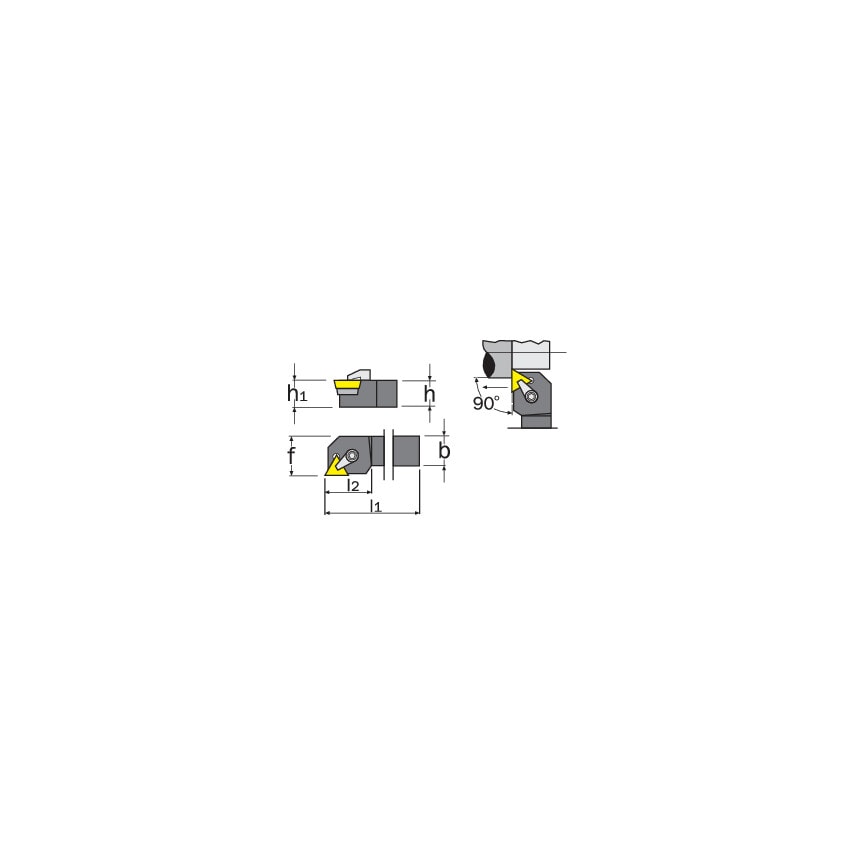

| Side to Cutting Tip (f) | 25 |
| Insert Holding Type | Top Clamp |
| Insert Inscribed Circle | 9.52 |
| Clearance Angle | 11 |
| Insert Shape | Triangular |
| Approach Angle | 90 |
| Neck Length | 28mm |
| Shank Style | Offset |
| Head Length (l2) | 28 |
| Cutting Height (h1) | 20 |
| Insert Cutting Edge Length | 16 |
| Coolant Delivery | External |
| Cutting Direction | Left Hand |
| Shank Width (b) | 20 |
| Overall Length (l1) | 125 |
| Toolholder Style | CTGP |

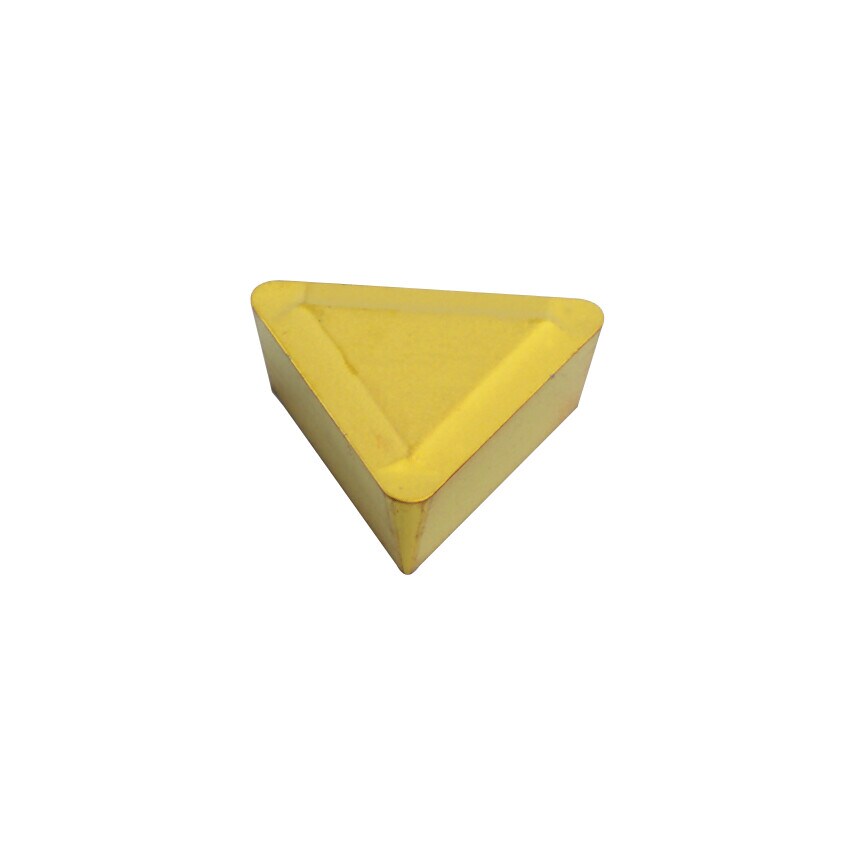

| Insert Style | TP_N | TP_R |
| Shank Material | Steel |
| Shank Height (h) | 20 |
| Insert Size | 1603 |
| ISO Designation | CTGPL 2020K16 |
