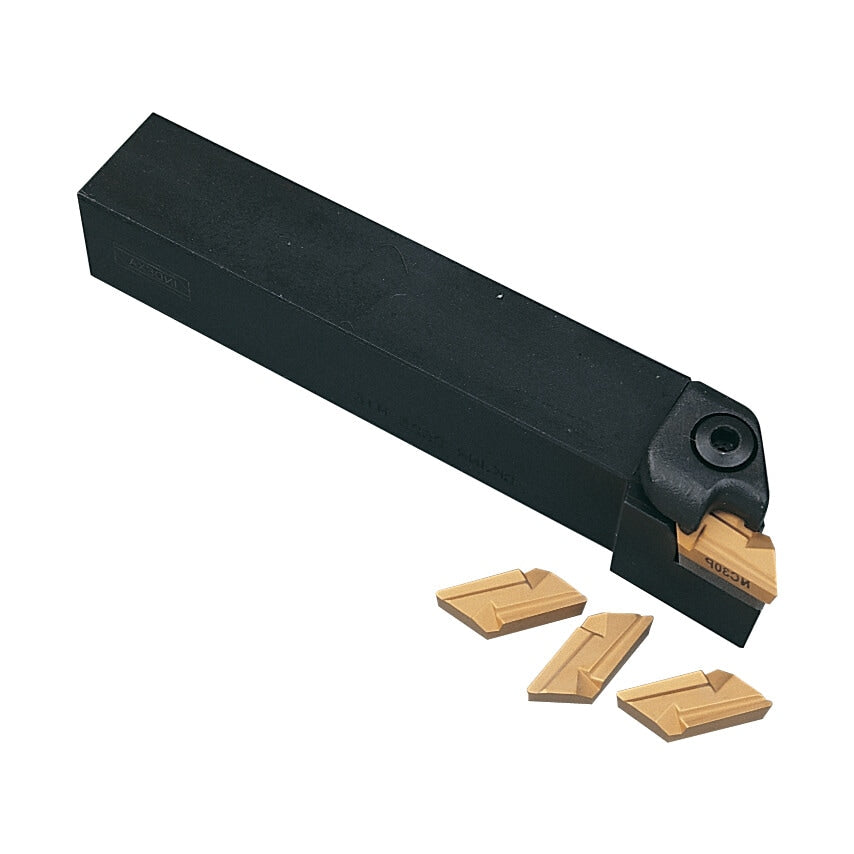

93 approach for 55 negative parallelogram inserts.

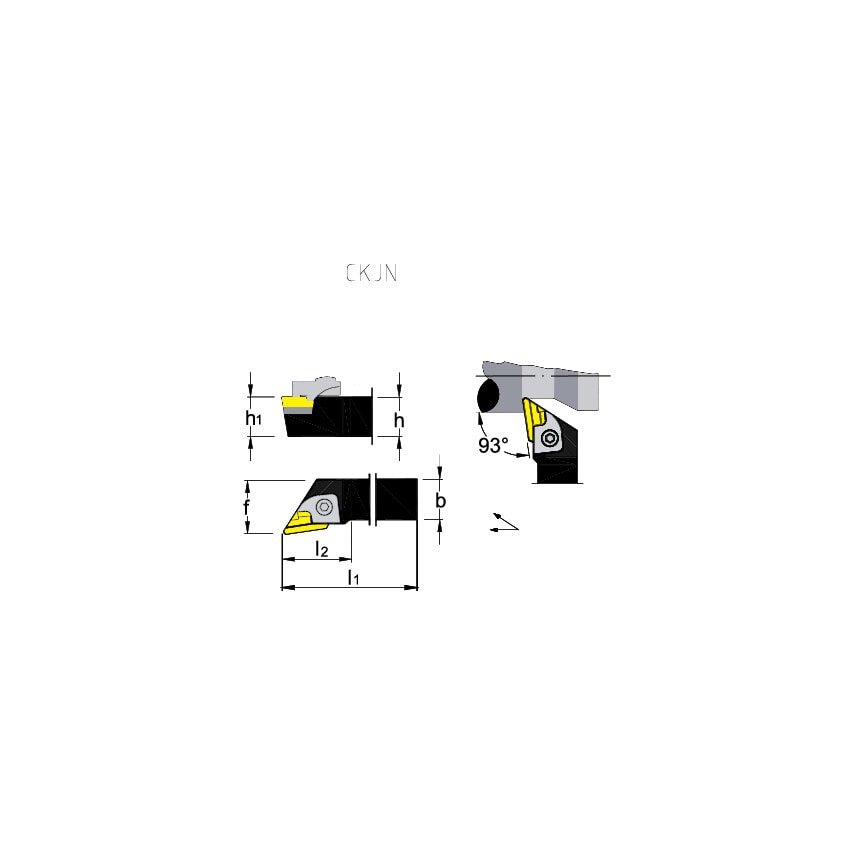

| Cutting Direction | Left Hand |
| Shank Height (h) | 25 |
| Insert Shape | 55\u00b0 Parallelogram |
| Clearance Angle | 0 |
| Shank Material | Steel |
| Approach Angle | 93 |
| Insert Inscribed Circle | 9.52 |
| Neck Length | 34mm |
| Cutting Height (h1) | 25 |
| Toolholder Style | CKJN |
| MFR Part No. | CKJNL2525M16 |
| Insert Style | KN_X |
| ISO Designation | CKJNL 2525M16 |
| Insert Cutting Edge Length | 16 |
| Insert Holding Type | Top Clamp |
| Coolant Delivery | External |
| Overall Length (l1) | 150 |
| Shank Style | Offset |
| Insert Size | 1604 |
| Head Length (l2) | 34 |
| Set Type | Individual Toolholder |
| Side to Cutting Tip (f) | 32 |
| Shank Width (b) | 25 |
