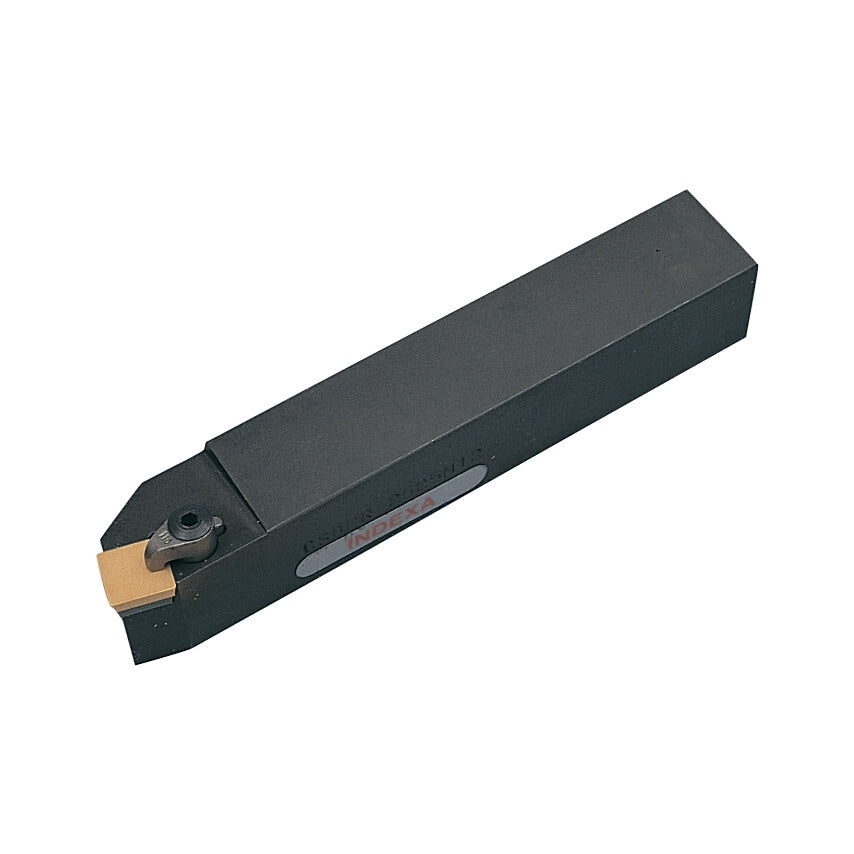

75 Approach for 11 positive square inserts.
| MFR Part No. | CSBPR1616H09 |
| Shank Style | Straight |
| Insert Shape | Square |

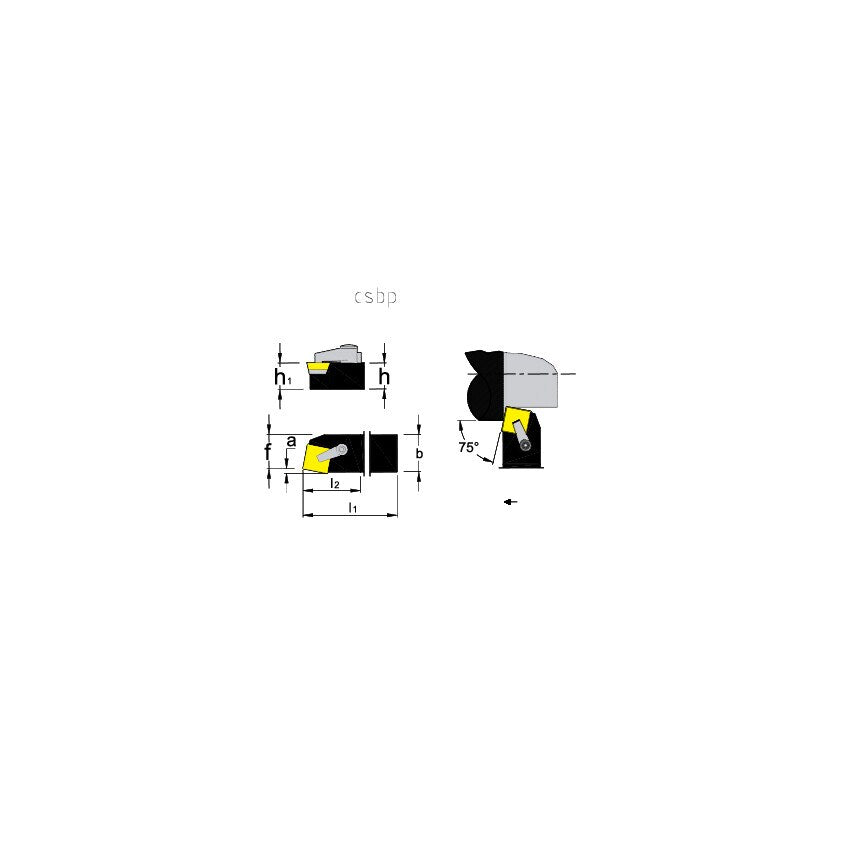

| Side to Cutting Tip (f) | 13 |
| Overall Length (l1) | 100 |
| Head Length (l2) | 22 |
| Set Type | Individual Toolholder |
| Shank Material | Steel |
| ISO Designation | CSBPR 1616H09 |
| Shank Height (h) | 16 |
| Insert Cutting Edge Length | 9 |
| Shank Width (b) | 16 |

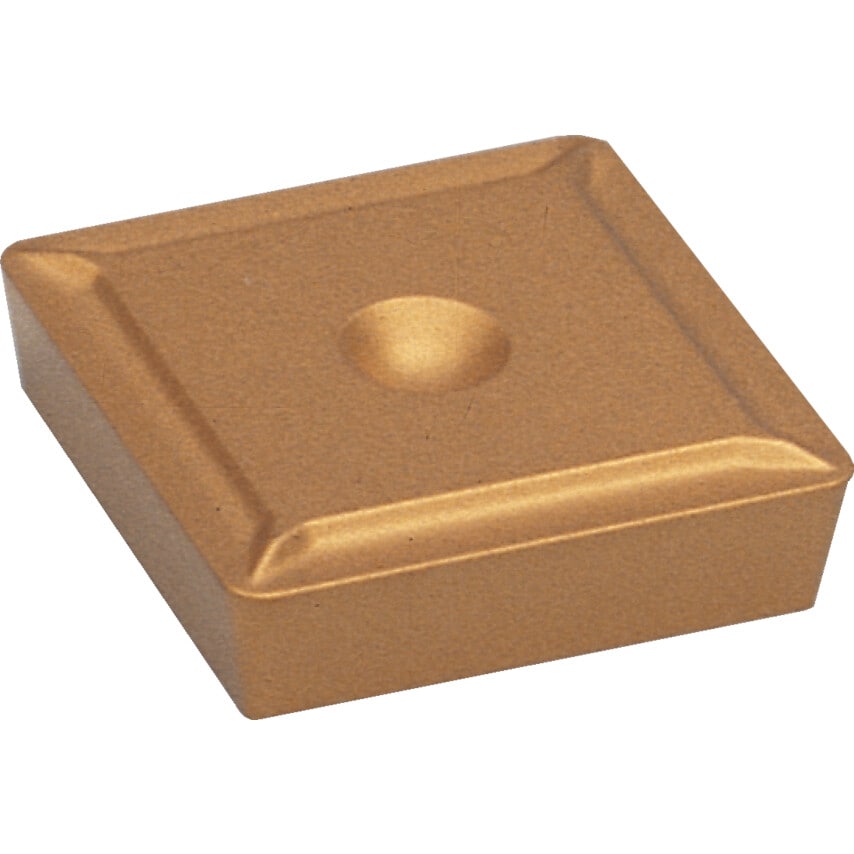

| Insert Size | 0903 |
| Insert Style | SP_N | SP_R |
| Insert Inscribed Circle | 9.52 |
| Coolant Delivery | External |
| Cutting Height (h1) | 16 |
| Neck Length | 22mm |
| Approach Angle | 75 |
| Cutting Direction | Right Hand |
| Toolholder Style | CSBP |
| Clearance Angle | 11 |
| Insert Holding Type | Top Clamp |
