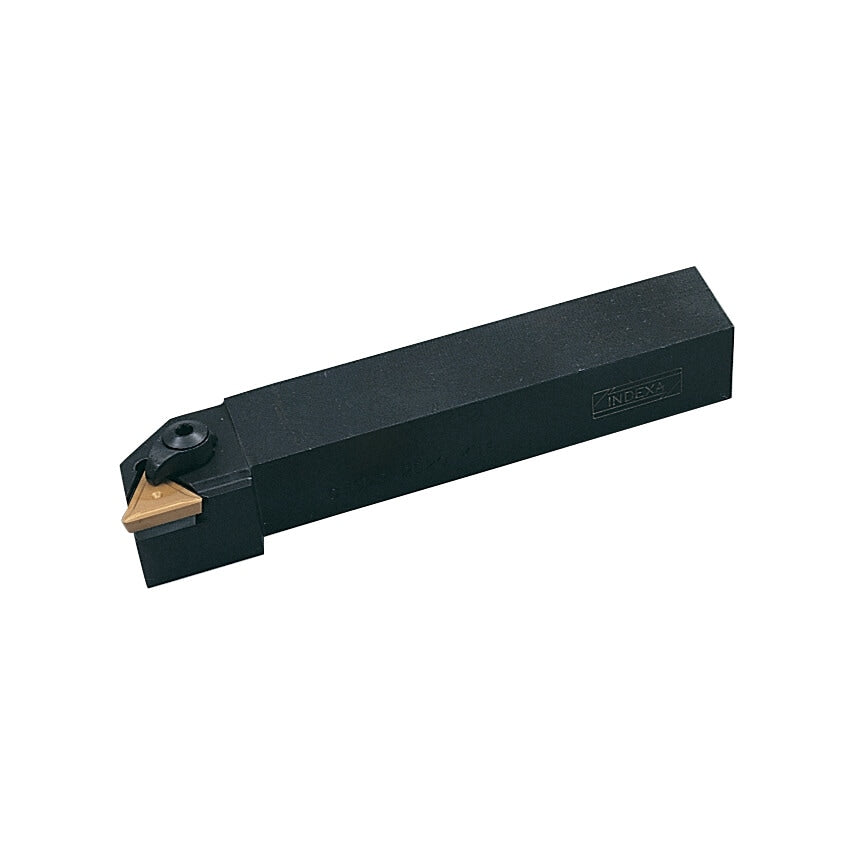

93 approach for negative triangular inserts.
| Insert Cutting Edge Length | 16.00mm |
| Shank Material | Steel |

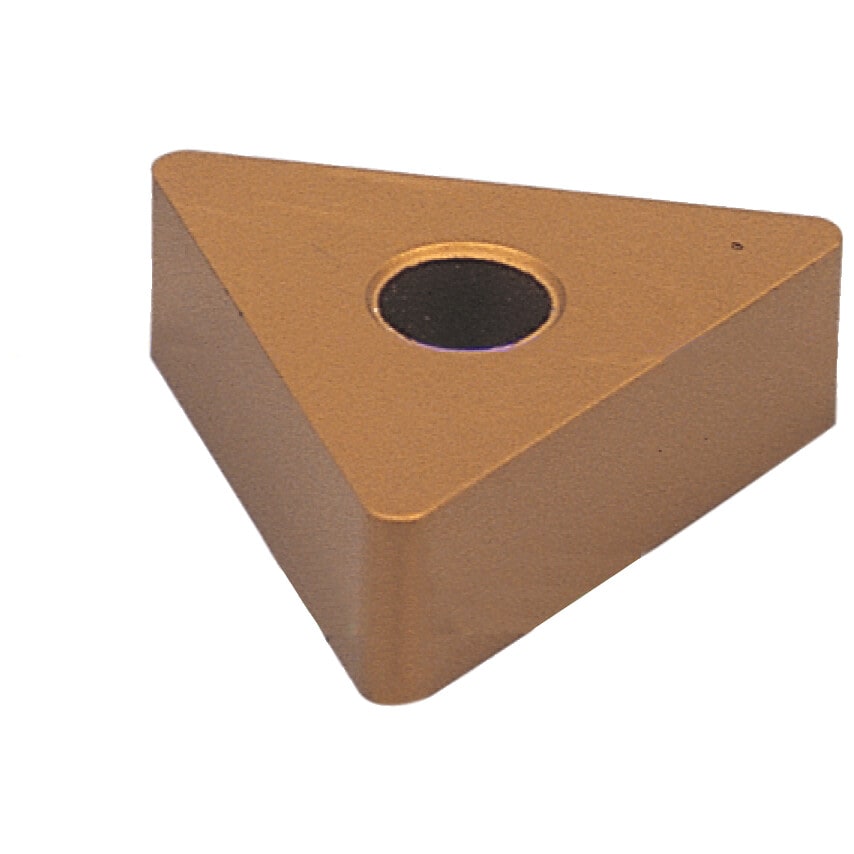

| Insert Shape | Triangular |
| Insert Size | 1604 |
| Shank Style | Offset |
| Insert Style | TN_A | TN_G |

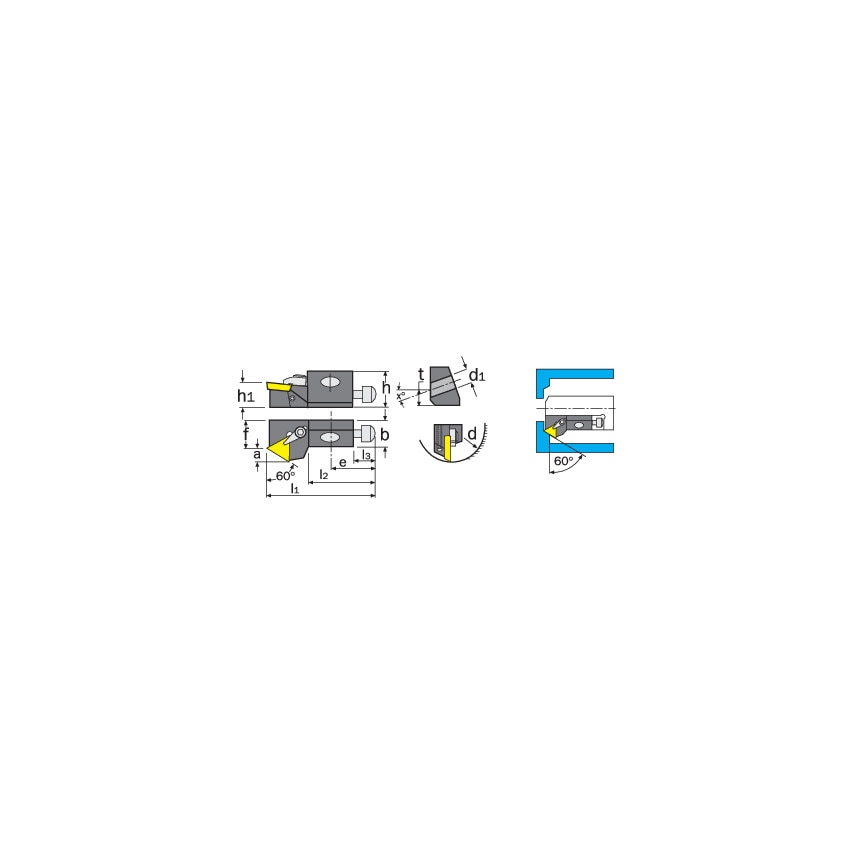

| Side to Cutting Tip (f) | 25mm |
| Head Length (l2) | 34mm |
| MFR Part No. | MTJNR2020K16 |
| Approach Angle | 93\u00b0 |
| Overall Length (l1) | 125mm |
| Insert Holding Type | Top Clamp & Pin Lock |
| Cutting Height (h1) | 20mm |
| ISO Designation | MTJNR 2020K16 |
| Clearance Angle | 0\u00b0 |
| Cutting Direction | Right Hand |
| Shank Width (b) | 20mm |
| Shank Height (h) | 20mm |
| Toolholder Style | MTJN |
| Insert Inscribed Circle | 9.52mm |
| Coolant Delivery | External |
