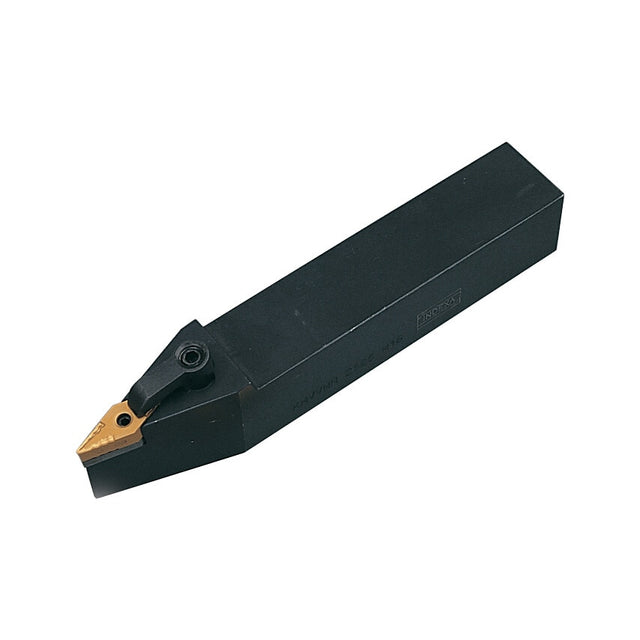

93 approach for negative 35 rhombic inserts.
| Insert Size | 1604 |
| Insert Holding Type | Top Clamp & Pin Lock |
| Approach Angle | 72.5\u00b0 |
| Side to Cutting Tip (f) | 10mm |
| MFR Part No. | MVVNN2020K16-K |
| Insert Inscribed Circle | 9.52mm |
| Shank Height (h) | 20mm |
| Shank Width (b) | 20mm |
| Head Length (l2) | 48mm |

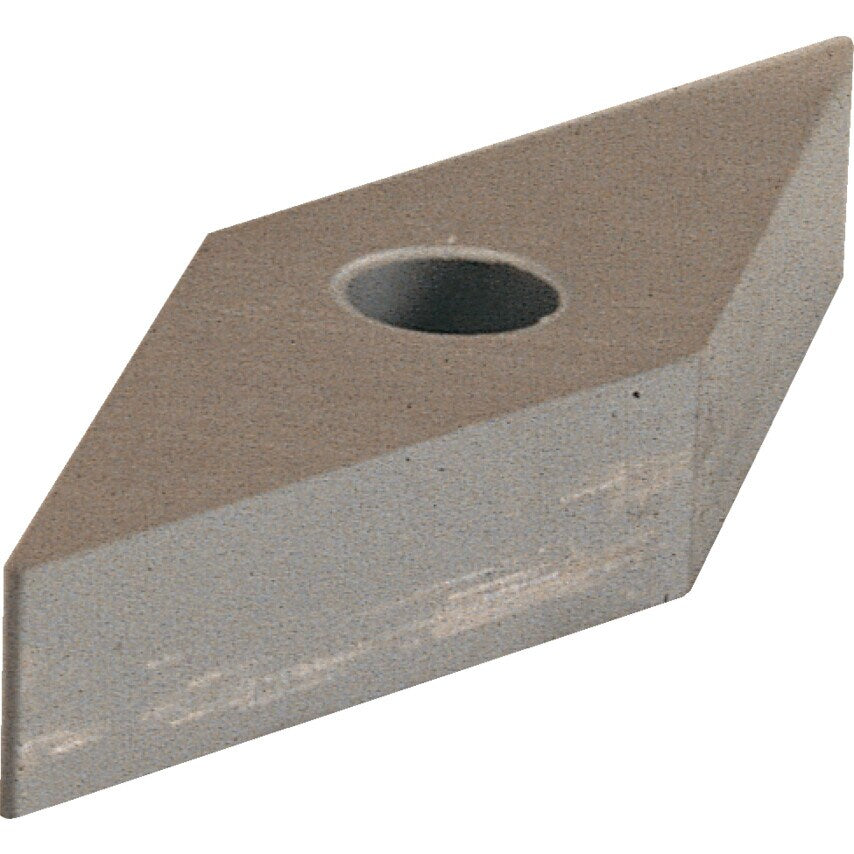

| Insert Shape | 35\u00b0 Rhombic\u00b0 |
| Cutting Height (h1) | 20mm |
| Insert Style | VN_A | VN_G |
| Insert Cutting Edge Length | 16.00mm |
| Shank Style | Straight |
| Cutting Direction | Neutral |
| ISO Designation | MVVNN 2020K16 |
| Coolant Delivery | External |
| Shank Material | Steel |
| Toolholder Style | MVVN |
| Clearance Angle | 0\u00b0 |
| Overall Length (l1) | 125mm |
