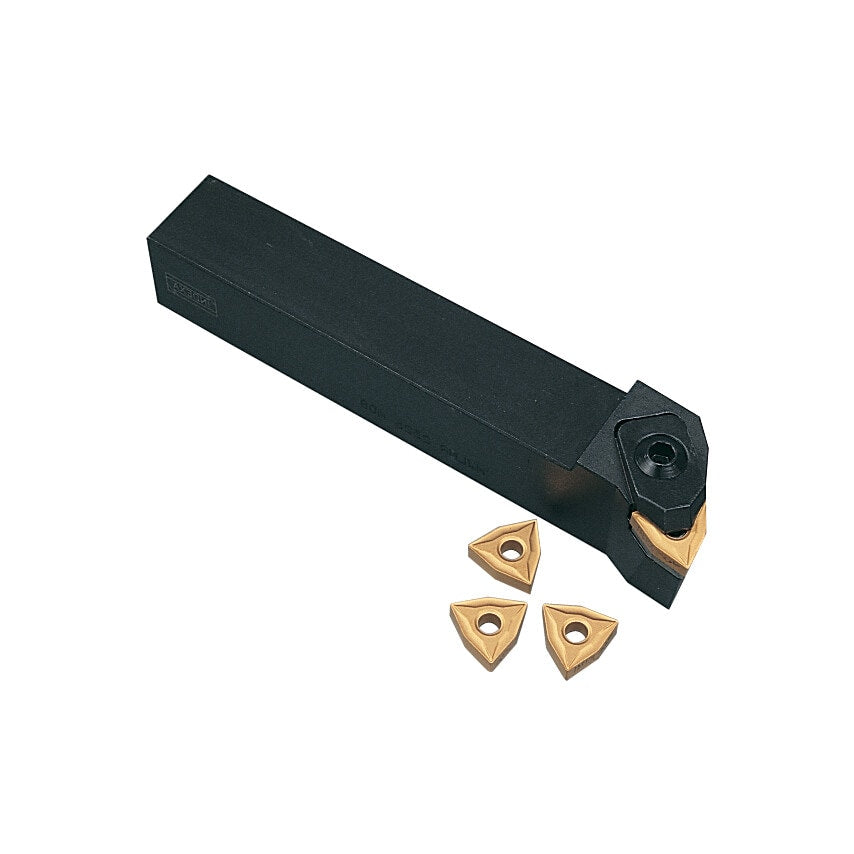

95 approach for negative 80 trigon inserts.
| Shank Material | Steel |
| Insert Cutting Edge Length | 8.00mm |

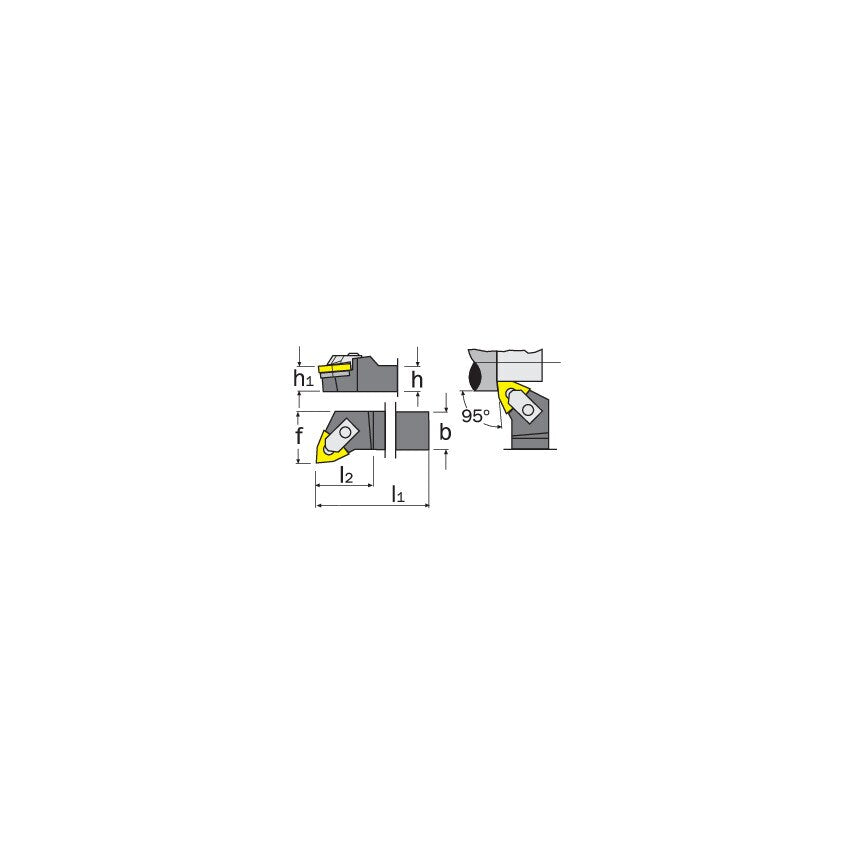

| Head Length (l2) | 34.00mm |
| ISO Designation | MWLNR 3225P08 |
| Cutting Direction | Right Hand |
| Shank Height (h) | 32.00mm |

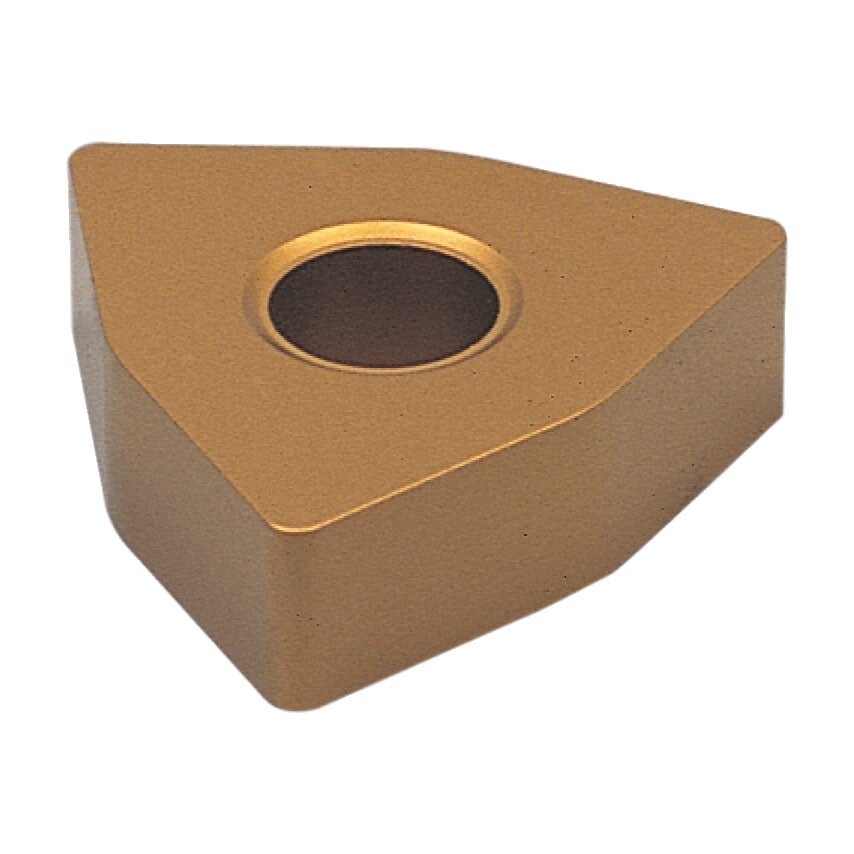

| Insert Shape | Trigon |
| Shank Width (b) | 25.00mm |
| Toolholder Style | MWLN |
| Cutting Height (h1) | 32.00mm |
| MFR Part No. | MWLNR3225P08 |
| Approach Angle | 95\u00b0 |
| Insert Size | 804 |
| Overall Length (l1) | 170.00mm |
| Shank Style | Straight |
| Insert Style | WN_A | WN_G | WN_M |
| Coolant Delivery | External |
| Insert Holding Type | Top Clamp & Pin Lock |
| Insert Inscribed Circle | 12.70mm |
| Side to Cutting Tip (f) | 32.00mm |
| Clearance Angle | 0\u00b0 |
