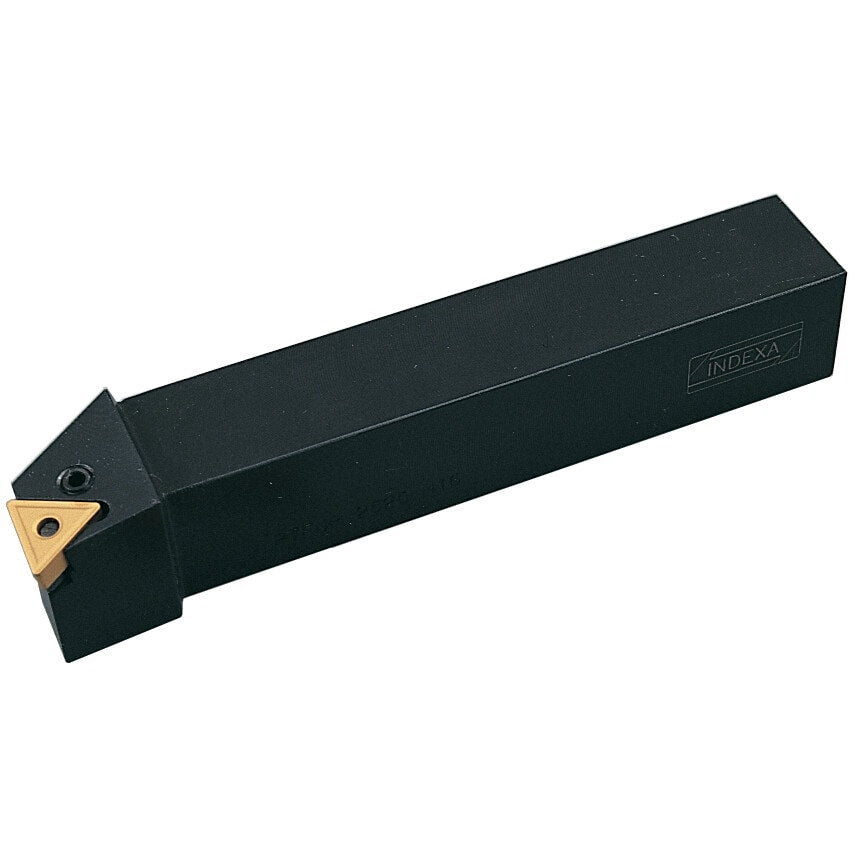

90 approach for negative triangular inserts.

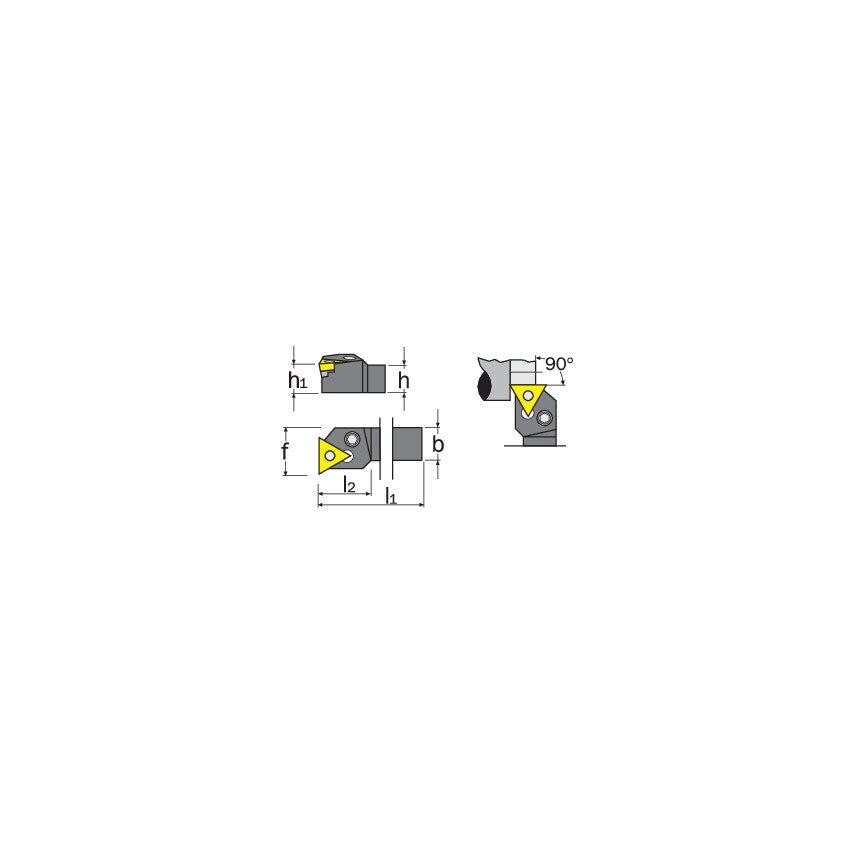

| Side to Cutting Tip (f) | 40 |
| Overall Length | 170mm |
| Cutting Height (h1) | 32mm |
| Clearance Angle | 0\u00b0 |
| Shank Height (h) | 32mm |
| MFR Part No. | 106-3820 |

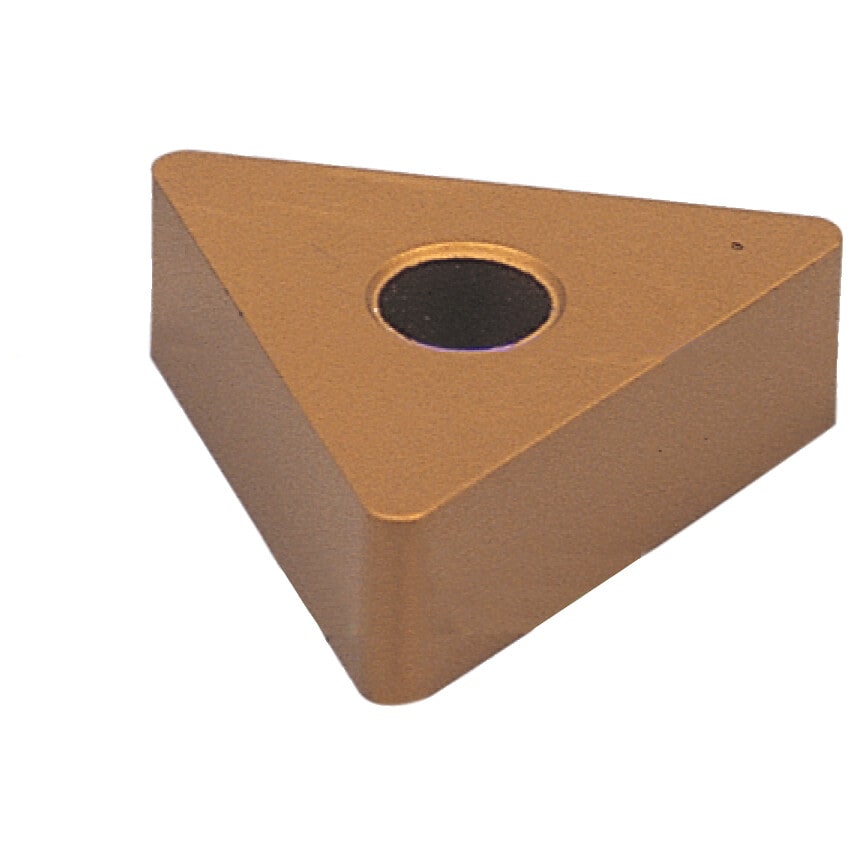

| Insert Style | TN_A | TN_G |
| Insert Shape | Triangular |
| Head Length (l2) | 42 |
| Insert Size | 2704 |
| ISO Designation | PTGNR 1616H16 |
| Cutting Direction | Right Hand |
| Shank Width (b) | 32 |
| Insert Holding Type | Lever Lock |
| Shank Material | Steel |
| Toolholder Style | PTFN |
| Overall Length (l1) | 170mm |
| Shank Height | 32mm |
| Set Type | Individual Toolholder |
| Shank Style | Offset |
| Neck Length | 42mm |
| Coolant Delivery | External |
| Centre to Cutting Tip | 40mm |
| Cutting Height | 32mm |
| Approach Angle | 90\u00b0 |
