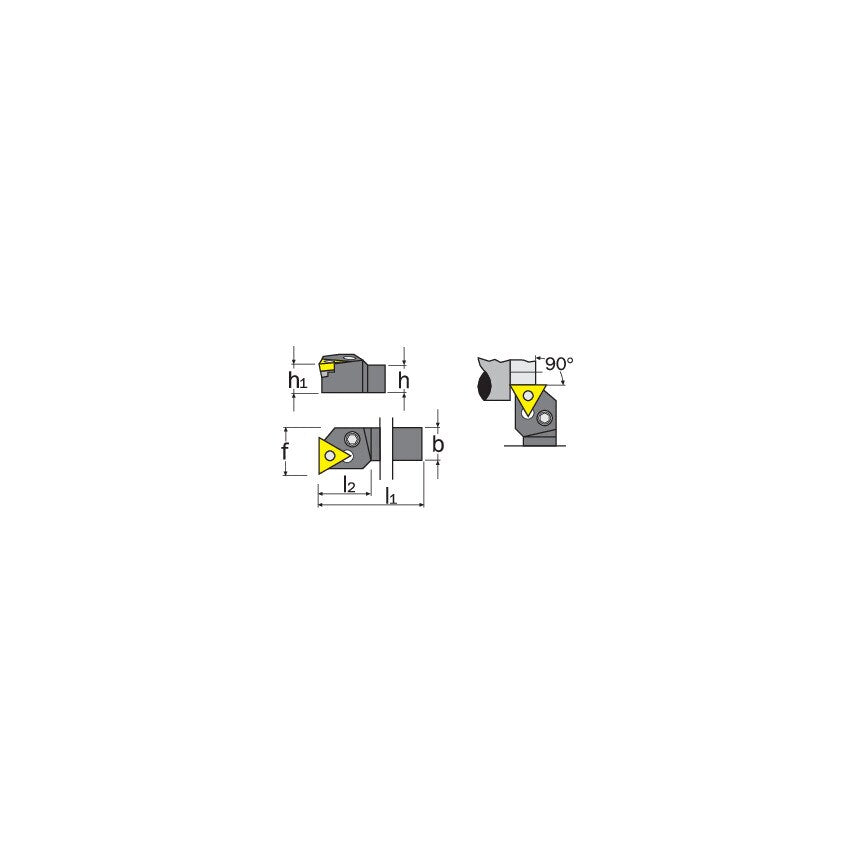

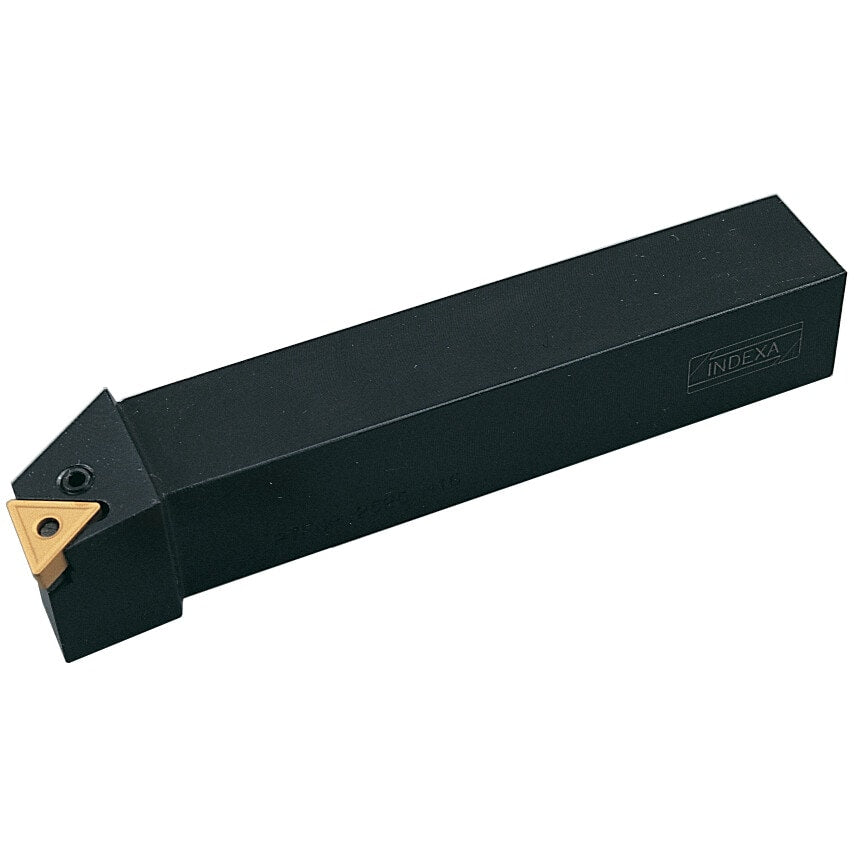

90 approach for negative triangular inserts.
| Shank Material | Steel |
| Shank Height | 25.00mm |
| MFR Part No. | PTFNR2525M16 |
| Shank Style | Offset |
| Shank Width (b) | 25 |
| Clearance Angle | 0\u00b0 |
| Insert Holding Type | Lever Lock |
| Neck Length | 22mm |
| Overall Length (l1) | 150mm |
| Centre to Cutting Tip | 32mm |
| Insert Style | TN_A | TN_G |
| Cutting Height | 25.00mm |
| Cutting Height (h1) | 25mm |
| Overall Length | 150.00mm |
| Set Type | Individual Toolholder |
| Head Length (l2) | 22 |

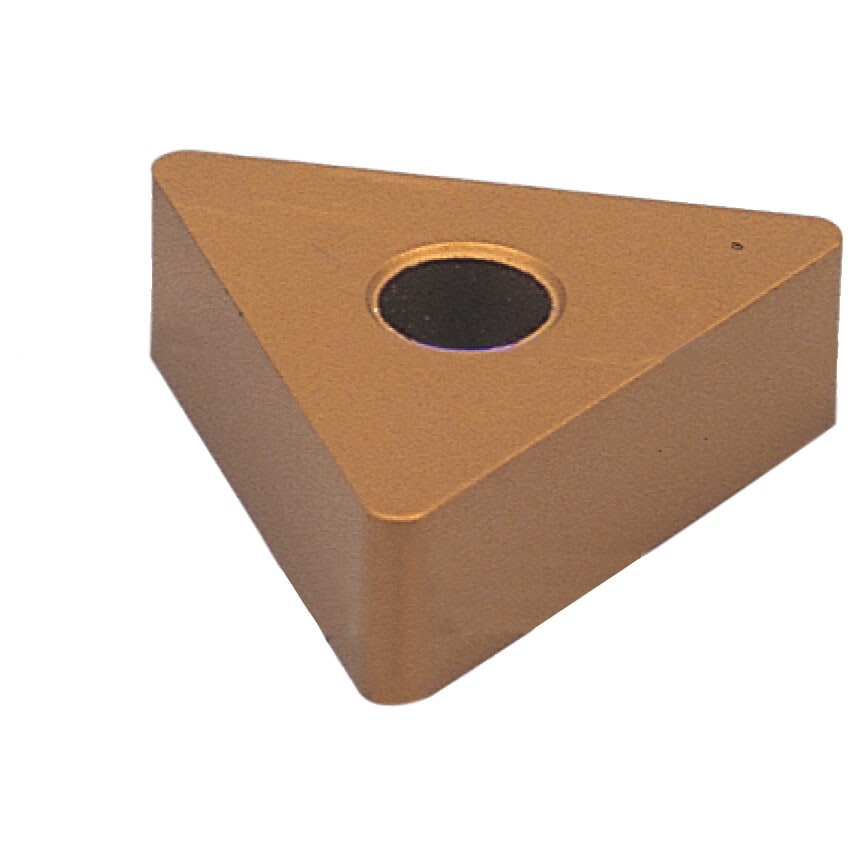

| Insert Shape | Triangular |
| Toolholder Style | PTFN |
| Cutting Direction | Right Hand |
| Approach Angle | 90\u00b0 |
| Insert Size | 1604 |
| Coolant Delivery | External |
| ISO Designation | PTFNR 2525M16 |
| Shank Height (h) | 25mm |
| Side to Cutting Tip (f) | 32 |
