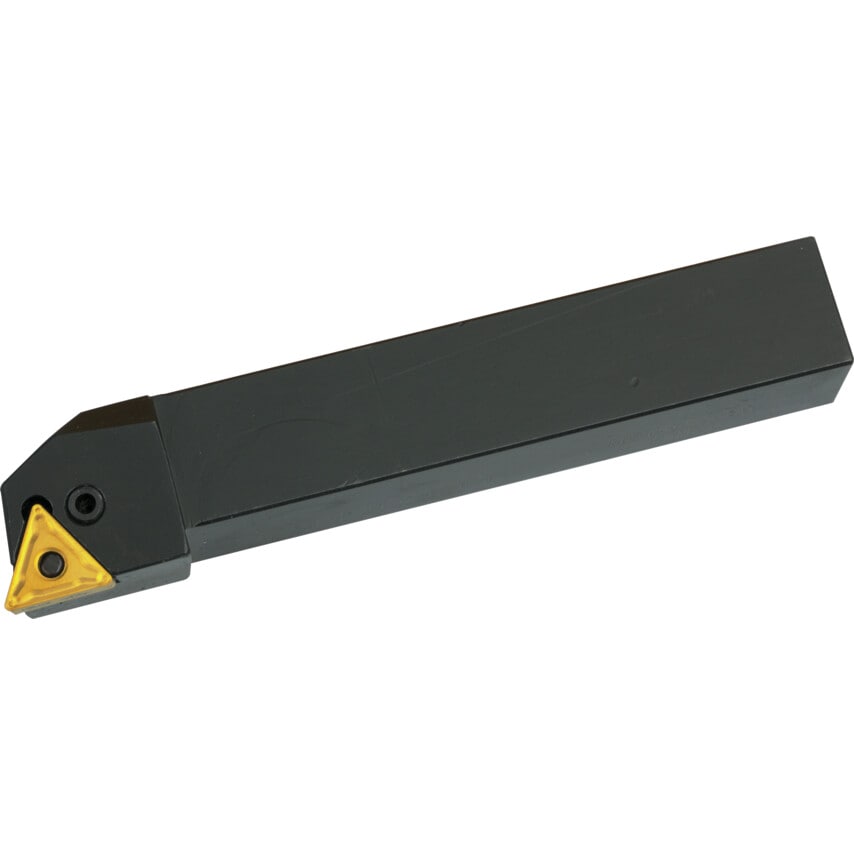

90 approach for negative triangular inserts.
| Clearance Angle | 0\u00b0 |
| Shank Style | Offset |

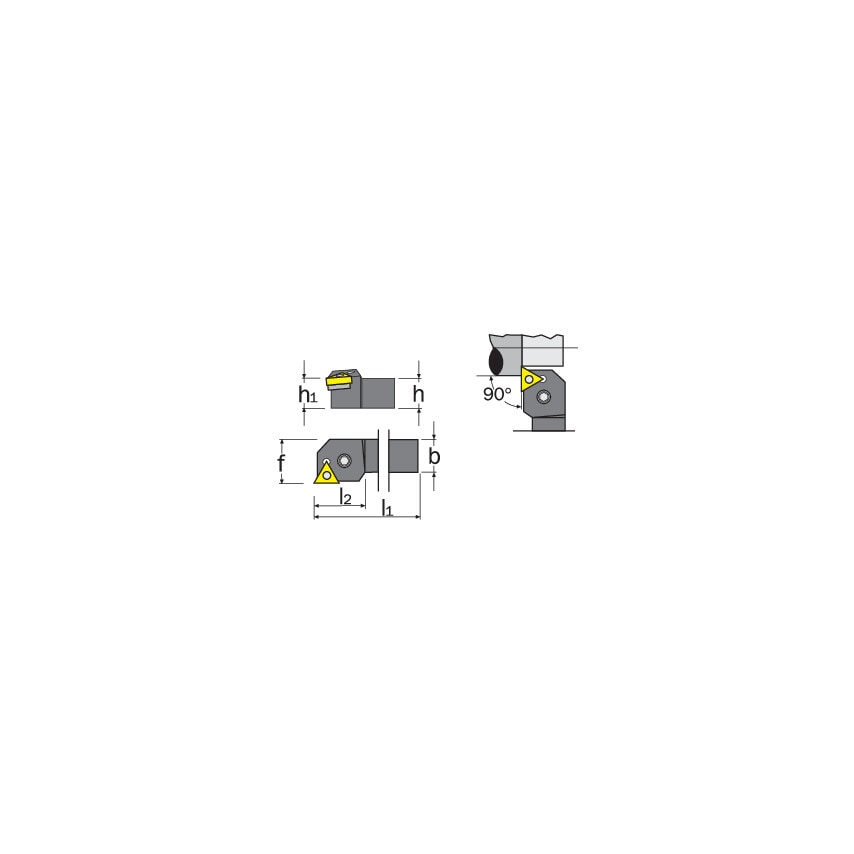

| Head Length (l2) | 22 |
| Set Type | Individual Toolholder |
| MFR Part No. | PTGNR2020K16 |
| Insert Holding Type | Lever Lock |
| Insert Size | 1604 |
| Insert Style | TN_A | TN_G |

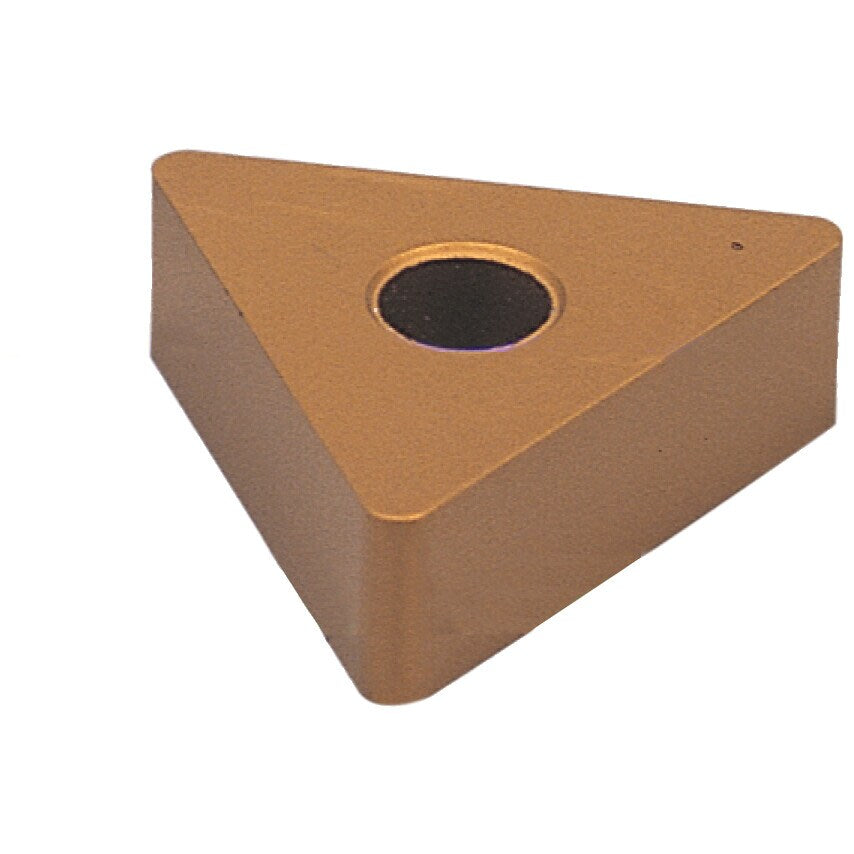

| Insert Shape | Triangular |
| Toolholder Style | PTGN |
| Side to Cutting Tip (f) | 25 |
| Shank Material | Steel |
| Cutting Height (h1) | 20mm |
| Shank Width (b) | 20 |
| Cutting Height | 20.00mm |
| ISO Designation | PTGNL 2020K16 |
| Cutting Direction | Left Hand |
| Coolant Delivery | External |
| Shank Height | 20.00mm |
| Approach Angle | 90\u00b0 |
| Overall Length | 125.00mm |
| Shank Height (h) | 20mm |
| Centre to Cutting Tip | 24mm |
| Neck Length | 22mm |
| Overall Length (l1) | 125mm |
