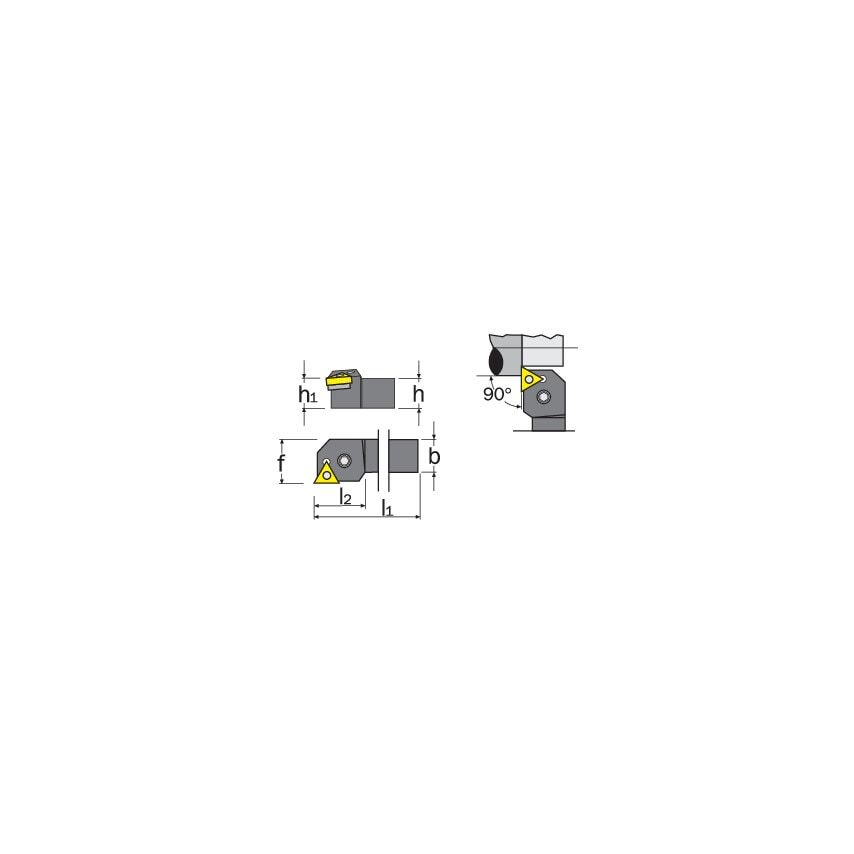

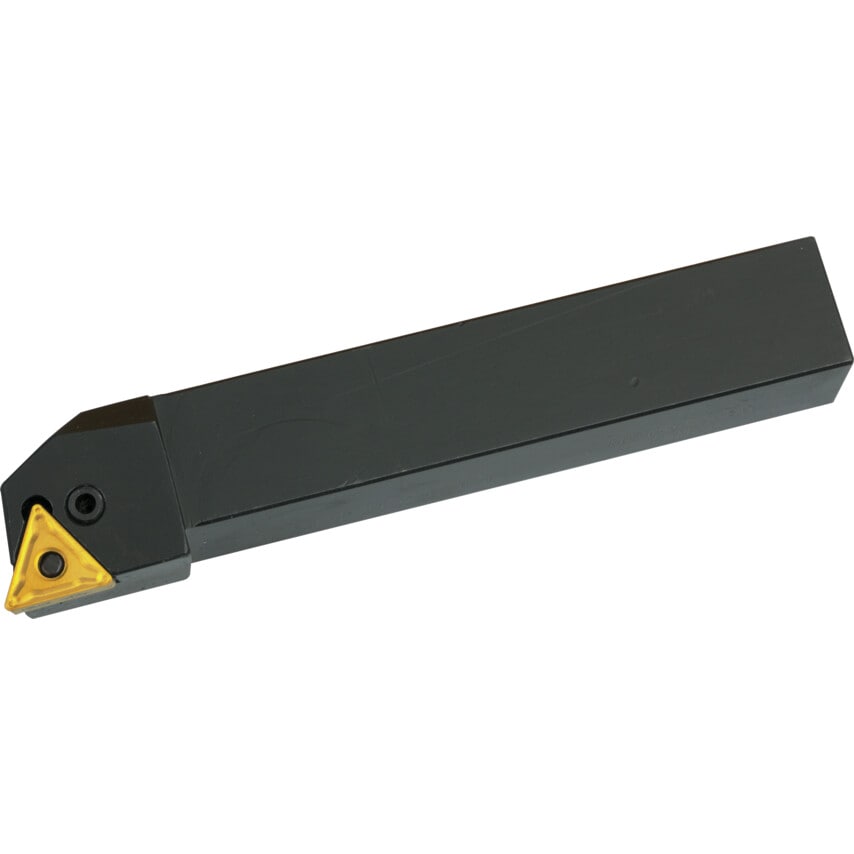

90 approach for negative triangular inserts.
| Shank Height (h) | 16mm |
| Toolholder Style | PTGN |
| Shank Material | Steel |
| Overall Length (l1) | 100mm |
| Shank Style | Offset |
| Shank Width (b) | 16 |
| Insert Holding Type | Lever Lock |
| Shank Height | 16.00mm |
| Overall Length | 100.00mm |
| Insert Size | 1604 |
| Clearance Angle | 0\u00b0 |
| Cutting Height (h1) | 16mm |
| Set Type | Individual Toolholder |
| Centre to Cutting Tip | 20mm |
| Insert Style | TN_A | TN_G |
| Approach Angle | 90\u00b0 |
| Cutting Direction | Left Hand |
| ISO Designation | PTGNL 1616H16 |
| Insert Shape | Triangular |
| Head Length (l2) | 22 |
| Neck Length | 22mm |
| Side to Cutting Tip (f) | 20 |
| Cutting Height | 16.00mm |
| Coolant Delivery | External |
| MFR Part No. | PTGNR1616H16 |
