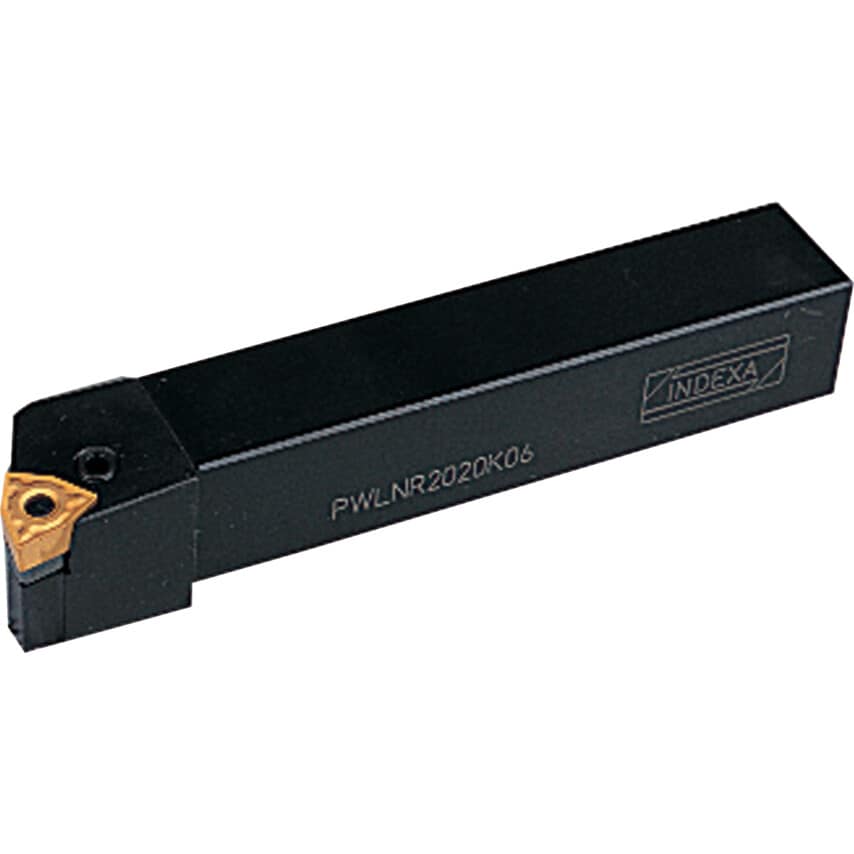

95 approach for negative 80 trigon inserts.
| Overall Length | 125.00mm |
| Insert Size | 604 |
| Shank Height (h) | 20mm |
| Insert Holding Type | Lever Lock |
| Shank Width (b) | 20 |
| Neck Length | 25mm |
| Toolholder Style | PWLN |
| Overall Length (l1) | 125mm |
| Shank Style | Offset |
| Set Type | Individual Toolholder |
| Head Length (l2) | 25 |
| Side to Cutting Tip (f) | 25 |
| Cutting Height | 20.00mm |
| Approach Angle | 95\u00b0 |
| Insert Style | WN_A | WN_G |
| Clearance Angle | 0\u00b0 |
| ISO Designation | PWLNL 2020K06 |
| Centre to Cutting Tip | 25mm |
| Cutting Direction | Left Hand |

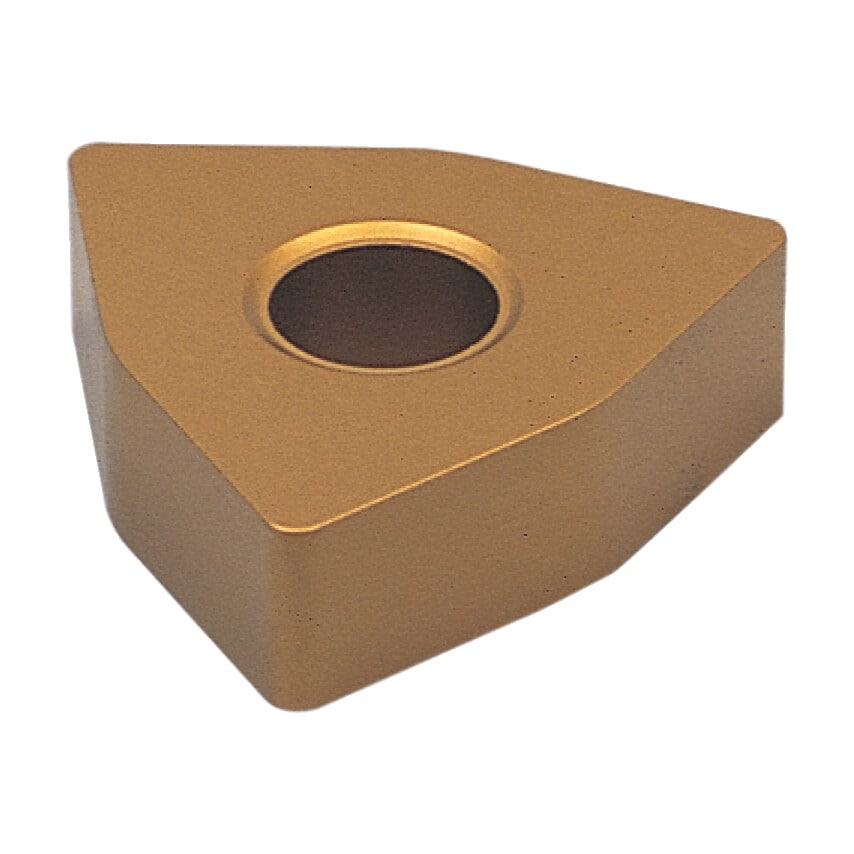

| Insert Shape | 80\u00b0 Trigon |
| Coolant Delivery | External |
| Cutting Height (h1) | 20mm |
| Shank Material | Steel |
| Shank Height | 20.00mm |
