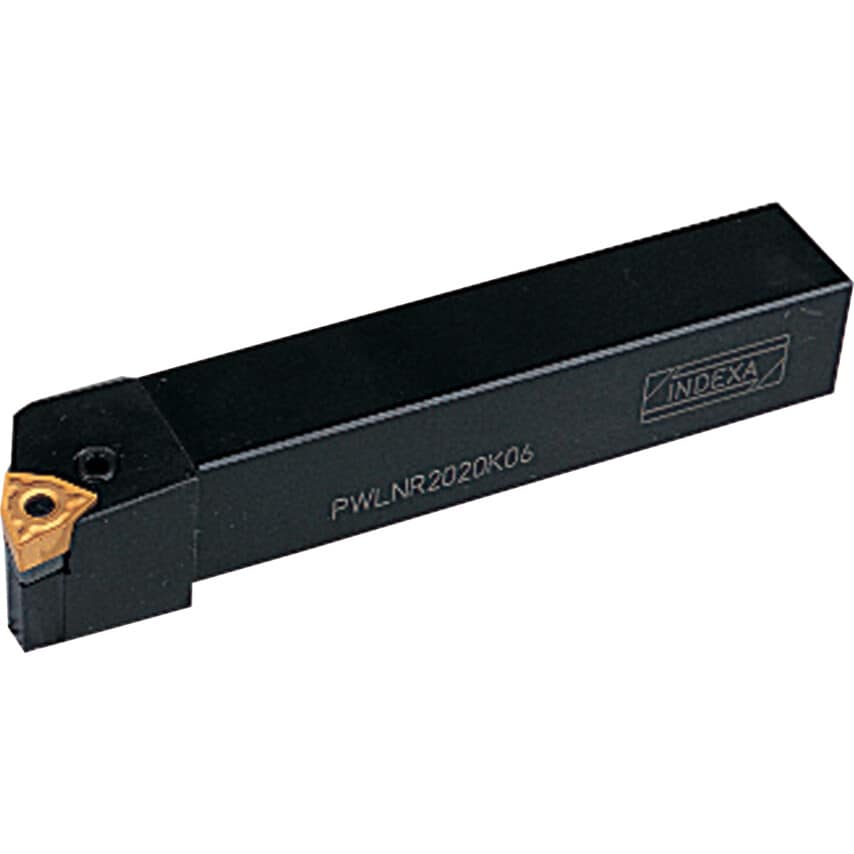

95 approach for negative 80 trigon inserts.

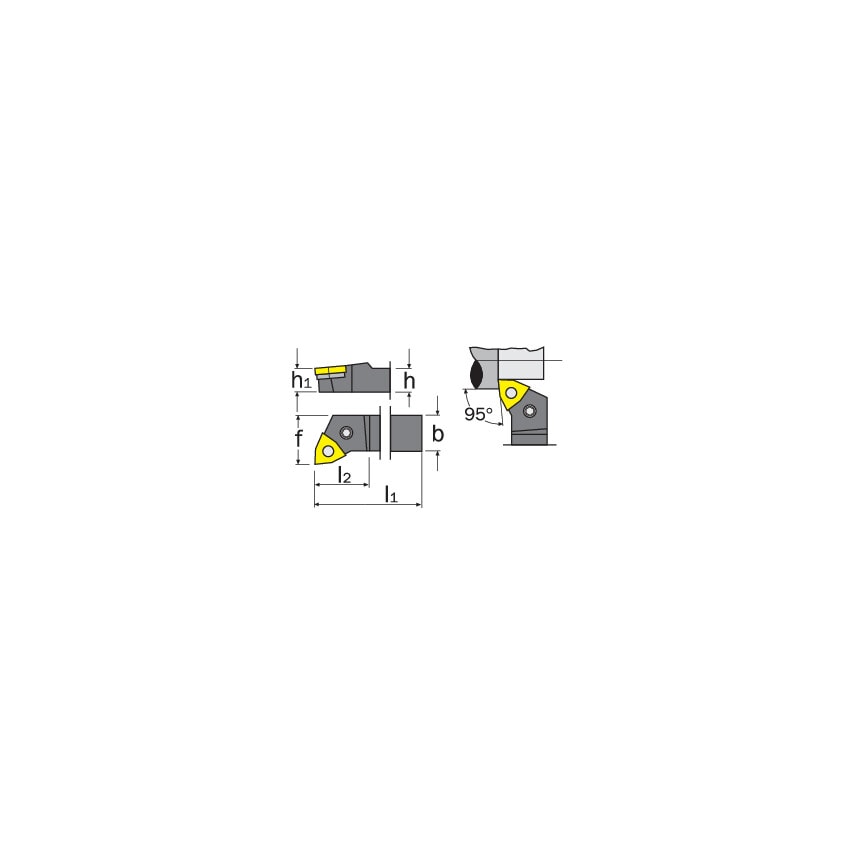

| ISO Designation | PWLNL 1616H06 |
| Shank Width (b) | 16 |
| Clearance Angle | 0\u00b0 |
| MFR Part No. | PWLNR1616H06 |
| Shank Height | 16.00mm |
| Overall Length | 100.00mm |
| Shank Style | Offset |
| Cutting Height (h1) | 16mm |
| Cutting Height | 16.00mm |
| Cutting Direction | Left Hand |
| Shank Height (h) | 16mm |
| Insert Size | 604 |
| Shank Material | Steel |
| Overall Length (l1) | 100mm |
| Toolholder Style | PWLN |
| Coolant Delivery | External |
| Approach Angle | 95\u00b0 |
| Head Length (l2) | 21 |

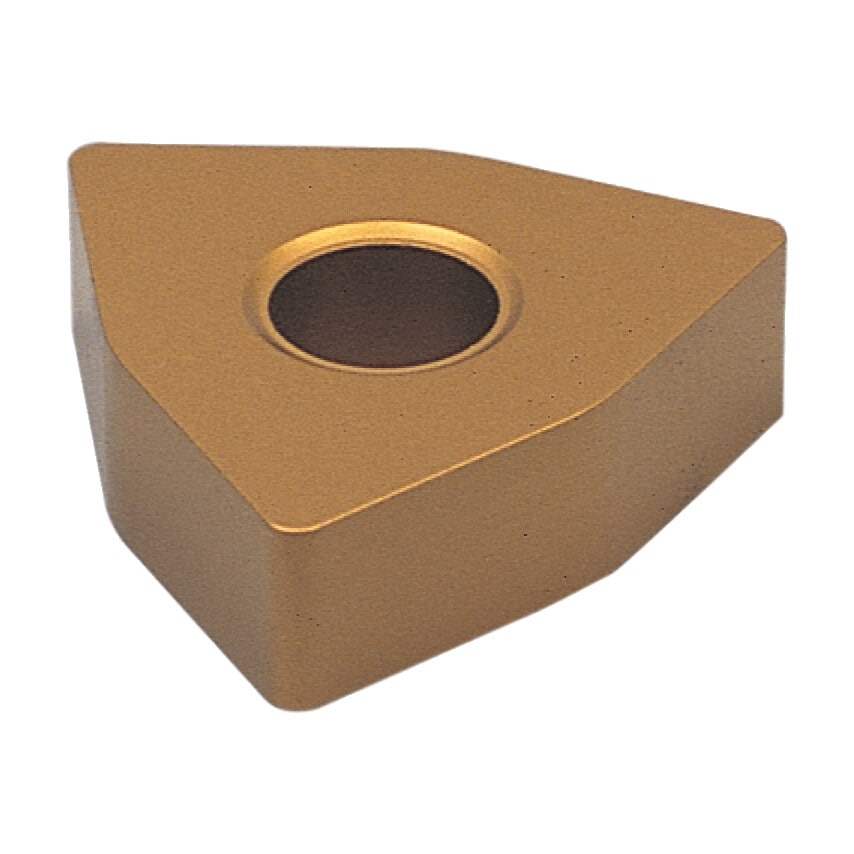

| Insert Shape | 80\u00b0 Trigon |
| Insert Holding Type | Lever Lock |
| Insert Style | WN_A | WN_G |
| Centre to Cutting Tip | 20mm |
| Side to Cutting Tip (f) | 20 |
| Set Type | Individual Toolholder |
| Neck Length | 21mm |
