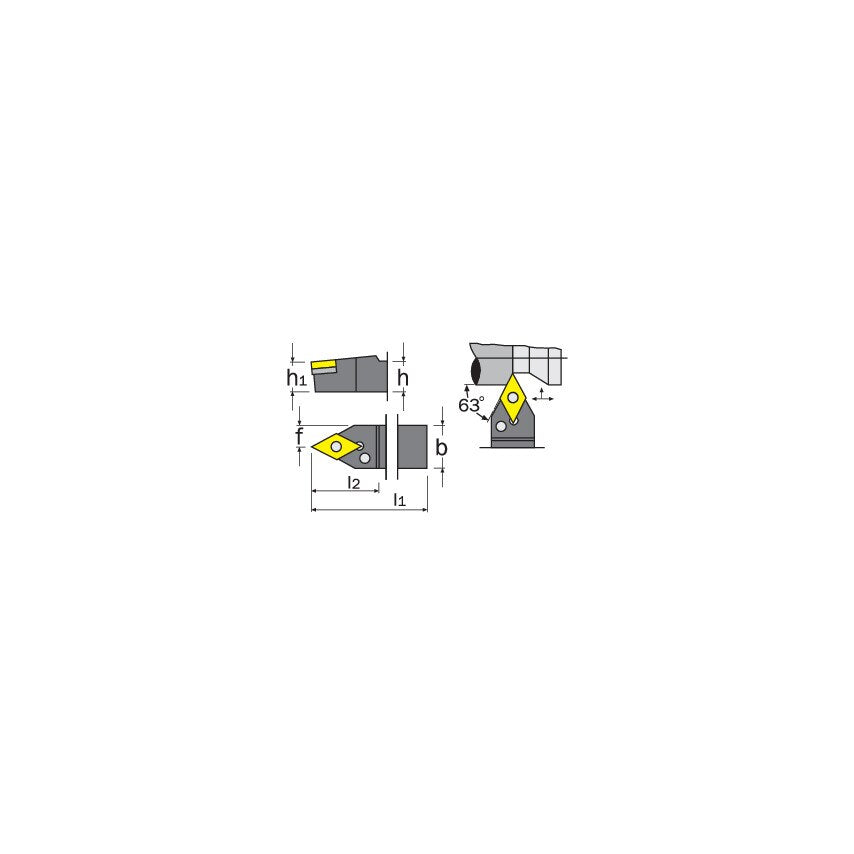

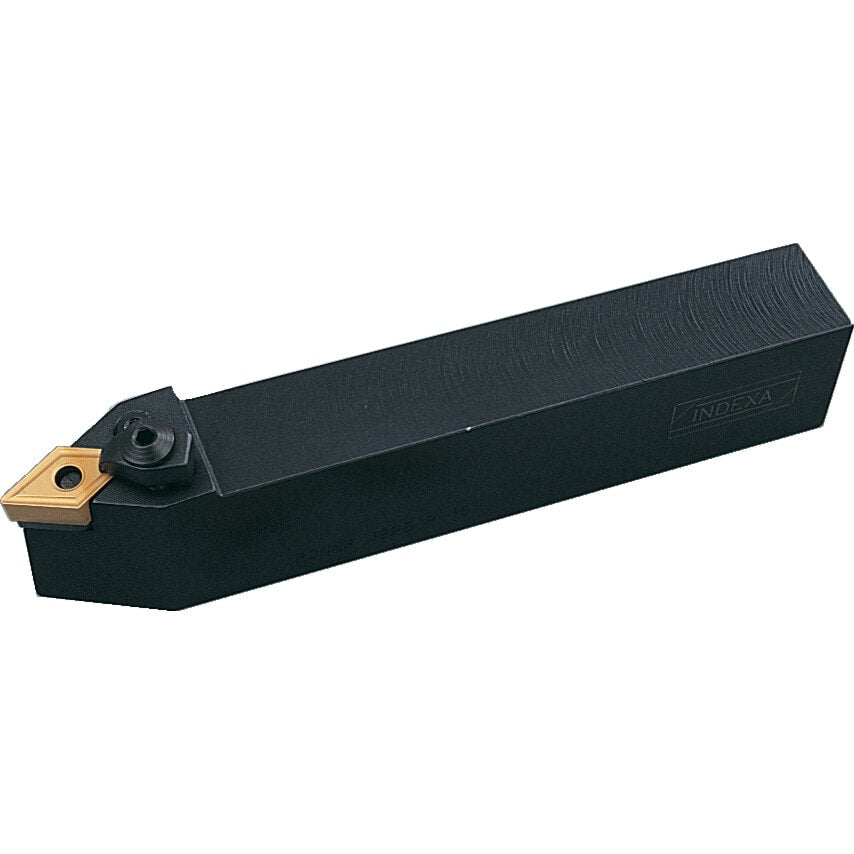

63 Approach for negative 55 rhombic inserts.
| Insert Style | DN_A | DN_G |
| Cutting Height | 25.00mm |
| Shank Width (b) | 25 |
| Clearance Angle | 0\u00b0 |
| Overall Length (l1) | 150mm |
| Shank Material | Steel |
| Neck Length | 34mm |
| Set Type | Individual Toolholder |
| Shank Height (h) | 25mm |
| Head Length (l2) | 34 |
| Side to Cutting Tip (f) | 12.5 |
| Approach Angle | 63\u00b0 |
| Shank Style | Straight |
| Cutting Height (h1) | 25mm |
| Insert Holding Type | Lever Lock |
| Toolholder Style | PDNN |
| Coolant Delivery | External |
| MFR Part No. | 106-2580 |
| Overall Length | 150.00mm |
| Centre to Cutting Tip | 12.5mm |

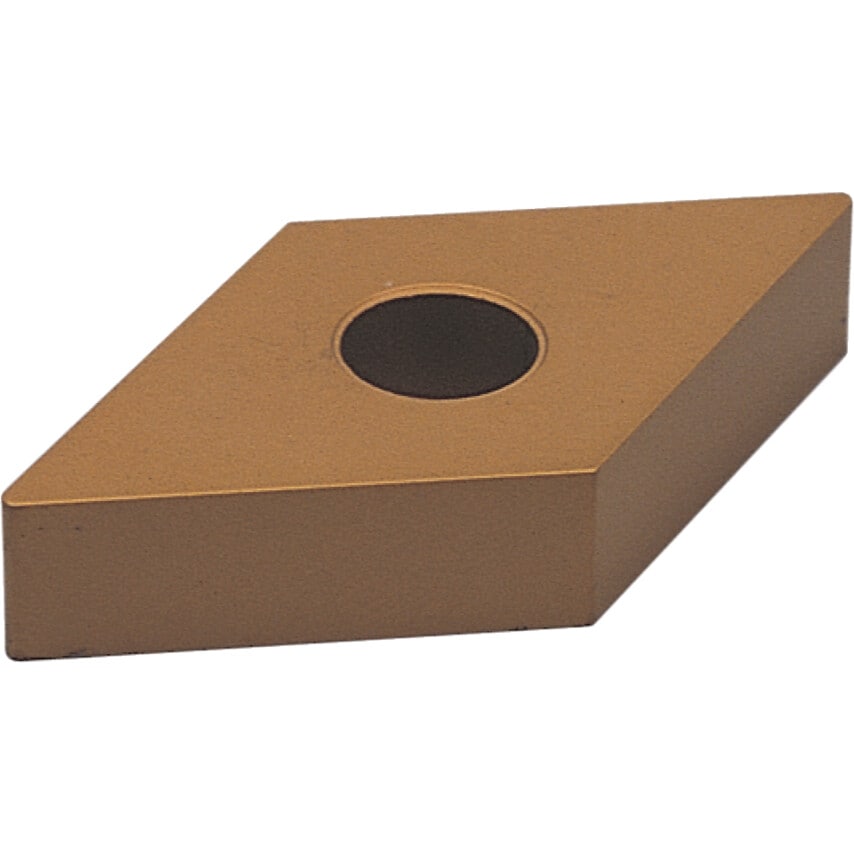

| Insert Shape | 55\u00b0 Rhombic |
| Cutting Direction | Right Hand |
| ISO Designation | PDNNR 2525M15 |
| Shank Height | 25.00mm |
| Insert Size | 1504 | 1506 |
