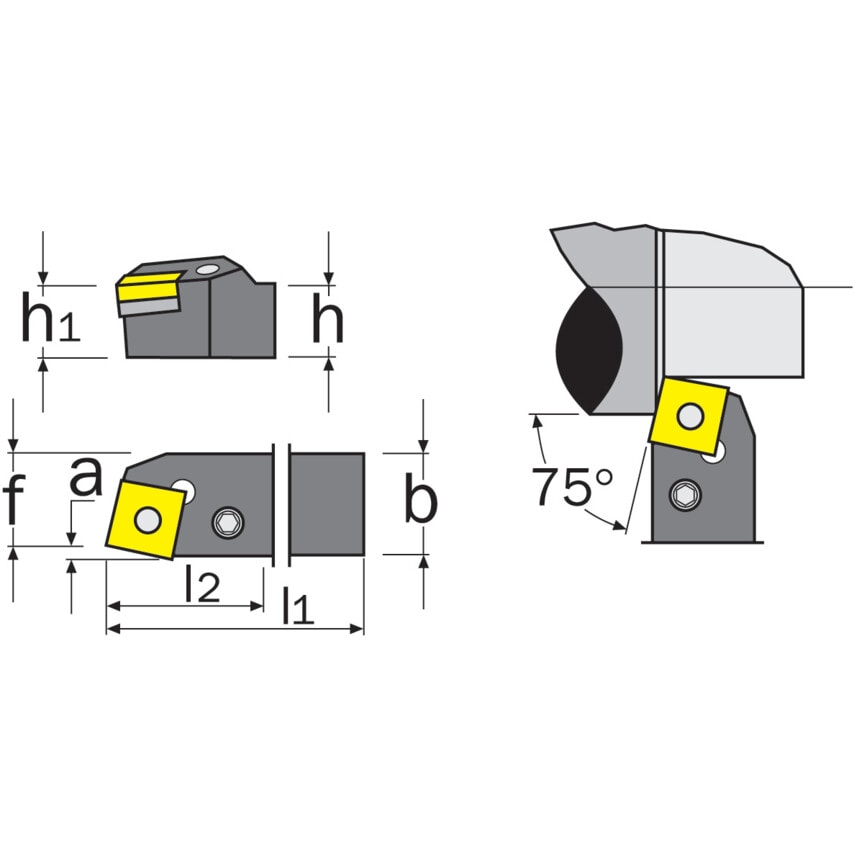

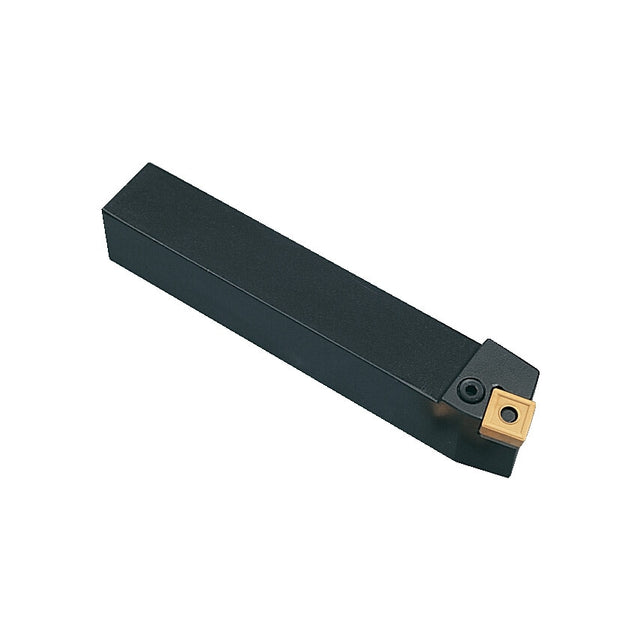

75 approach for negative square inserts.
| ISO Designation | PSBNL 2020K12 |
| Insert Shape | Square |
| Insert Style | SN_A | SN_G |
| Cutting Height | 20mm |
| Shank Material | Steel |
| Coolant Delivery | External |
| Shank Height | 20mm |
| Shank Width (b) | 20 |
| Overall Length (l1) | 125mm |
| Shank Style | Straight |
| Neck Length | 28mm |
| Overall Length | 125mm |
| Set Type | Individual Toolholder |
| Cutting Direction | Left Hand |
| Insert Size | 1204 |
| Approach Angle | 75\u00b0 |
| Shank Height (h) | 20mm |
| Toolholder Style | PSBN |
| Head Length (l2) | 28 |
| Centre to Cutting Tip | 17mm |
| Insert Holding Type | Lever Lock |
| Clearance Angle | 0\u00b0 |
| MFR Part No. | PSBNL2020K12 |
| Cutting Height (h1) | 20mm |
| Side to Cutting Tip (f) | 17 |
