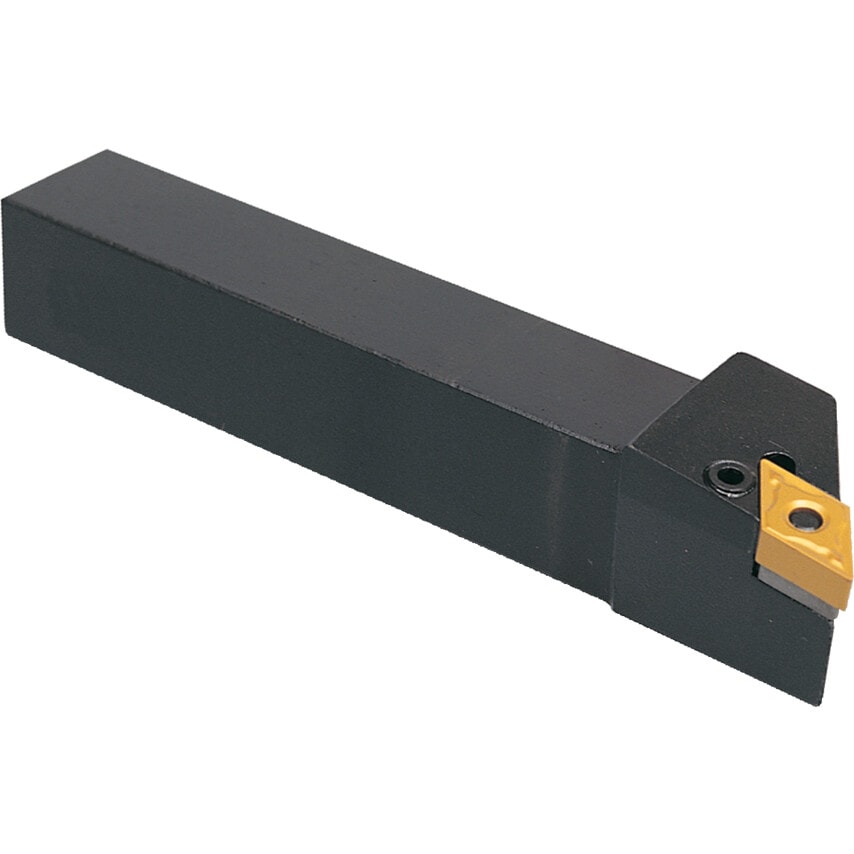

93 approach for negative 55 rhombic inserts.
| Cutting Height | 25.00mm |
| Shank Style | Offset |
| Clearance Angle | 0\u00b0 |
| Insert Holding Type | Lever Lock |
| Overall Length | 150.00mm |
| Shank Height | 25.00mm |

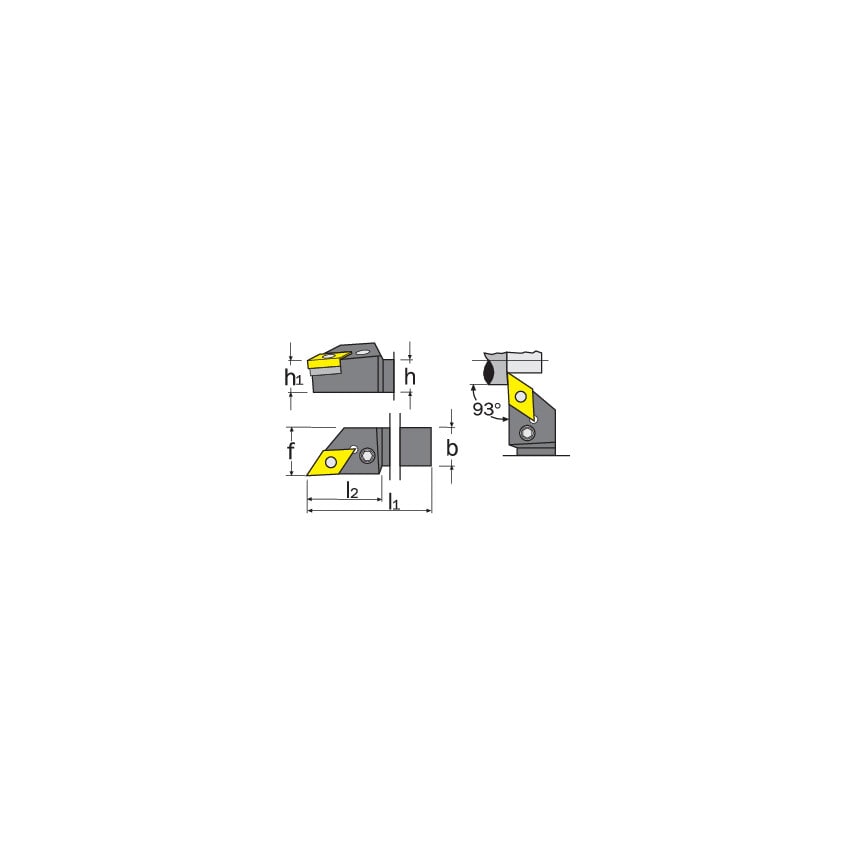

| Cutting Height (h1) | 25mm |
| Overall Length (l1) | 150mm |
| Cutting Direction | Left Hand |
| Insert Size | 1504 | 1506 |
| Centre to Cutting Tip | 32mm |
| Approach Angle | 93\u00b0 |
| MFR Part No. | PDJNL2525M15 |
| Insert Style | DN_A | DN_G |
| Shank Height (h) | 25mm |
| Toolholder Style | PDJN |
| Neck Length | 34mm |
| Coolant Delivery | External |
| Set Type | Individual Toolholder |
| Shank Width (b) | 25 |
| ISO Designation | PDJNL 2525M15 |
| Shank Material | Steel |

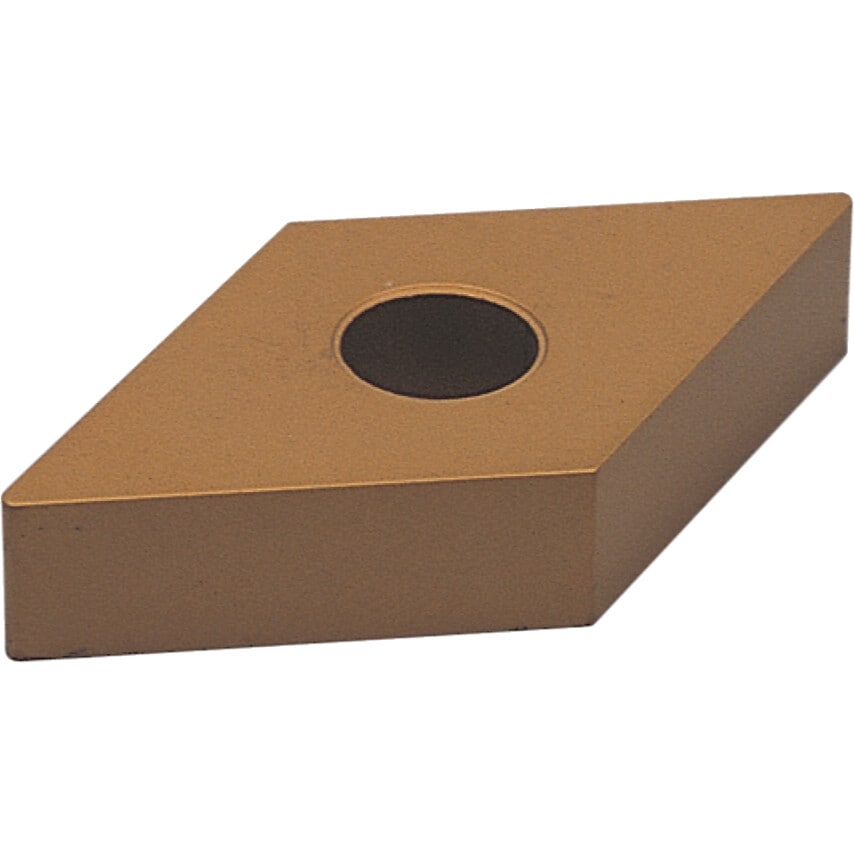

| Insert Shape | 55\u00b0 Rhombic |
| Head Length (l2) | 34 |
| Side to Cutting Tip (f) | 32 |
