£3.63
1
of
3
Loading...

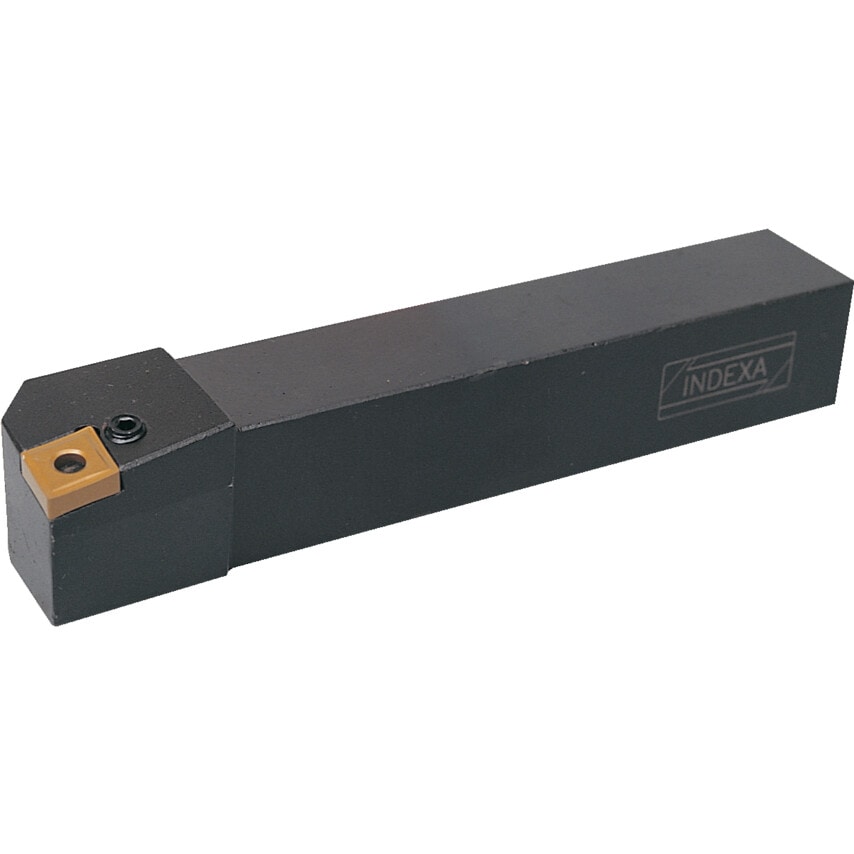

95 Approach for negative 80 rhombic inserts.
| Clearance Angle | 0\u00b0 |
| Coolant Delivery | External |
| ISO Designation | PCLNR 4040S19 |
| Neck Length | 45mm |
| Approach Angle | 95\u00b0 |
| Overall Length (l1) | 250mm |
| Shank Material | Steel |
| Cutting Height | 40mm |
| Head Length (l2) | 45 |
| Shank Height | 40mm |
| Side to Cutting Tip (f) | 50 |
| Insert Style | CN_A | CN_G |
| Shank Width (b) | 40 |
| Cutting Direction | Right Hand |
| Insert Holding Type | Lever Lock |
| Shank Height (h) | 40mm |
| Shank Style | Offset |
| Cutting Height (h1) | 40mm |
| Overall Length | 250mm |
| Centre to Cutting Tip | 50mm |
| Toolholder Style | PCLN |
| Set Type | Individual Toolholder |
| Insert Shape | 80 Rhombic |
| MFR Part No. | PCLNR4040S19 |
| Insert Size | 1906 |
