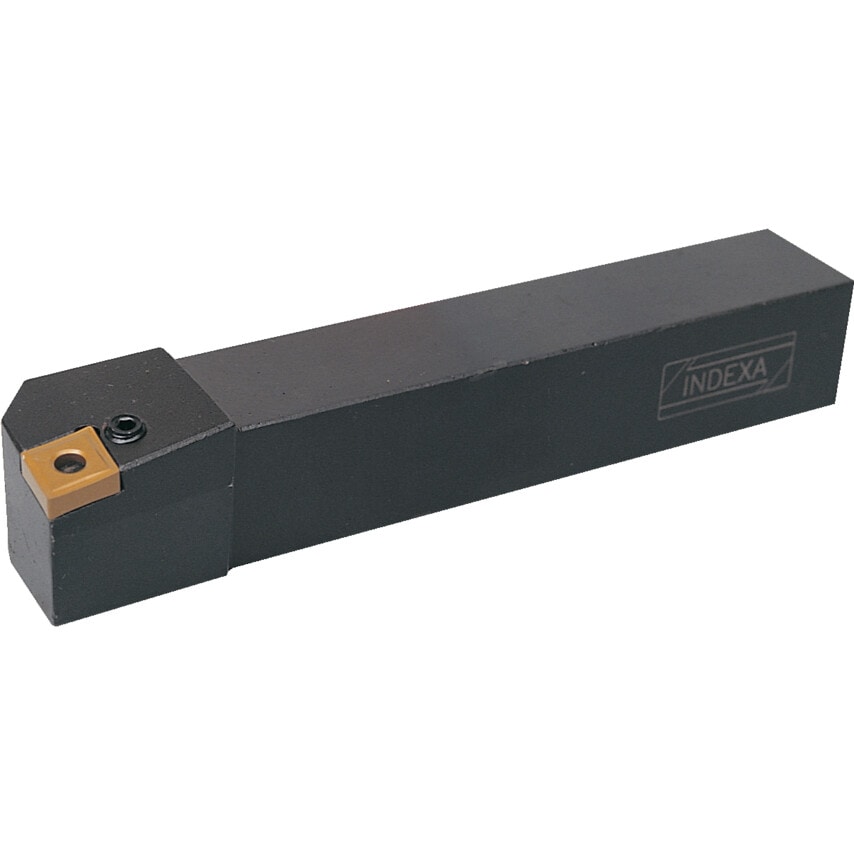

95 Approach for negative 80 rhombic inserts.
| Shank Height | 16.00mm |
| ISO Designation | PCLNR 1616H12 |
| Insert Size | 1204 |
| Set Type | Individual Toolholder |
| Neck Length | 26mm |
| Cutting Height | 16.00mm |
| Approach Angle | 95\u00b0 |
| Centre to Cutting Tip | 20mm |
| Shank Height (h) | 16mm |
| Clearance Angle | 0\u00b0 |
| Overall Length (l1) | 100mm |
| Cutting Direction | Right Hand |
| Shank Style | Offset |
| Shank Material | Steel |
| Side to Cutting Tip (f) | 20 |
| Insert Holding Type | Lever Lock |
| Toolholder Style | PCLN |
| Insert Style | CN_A | CN_G |
| Coolant Delivery | External |
| Head Length (l2) | 26 |
| Insert Shape | 80\u00b0 Rhombic |
| Overall Length | 100.00mm |
| Cutting Height (h1) | 16mm |
| Shank Width (b) | 16 |
