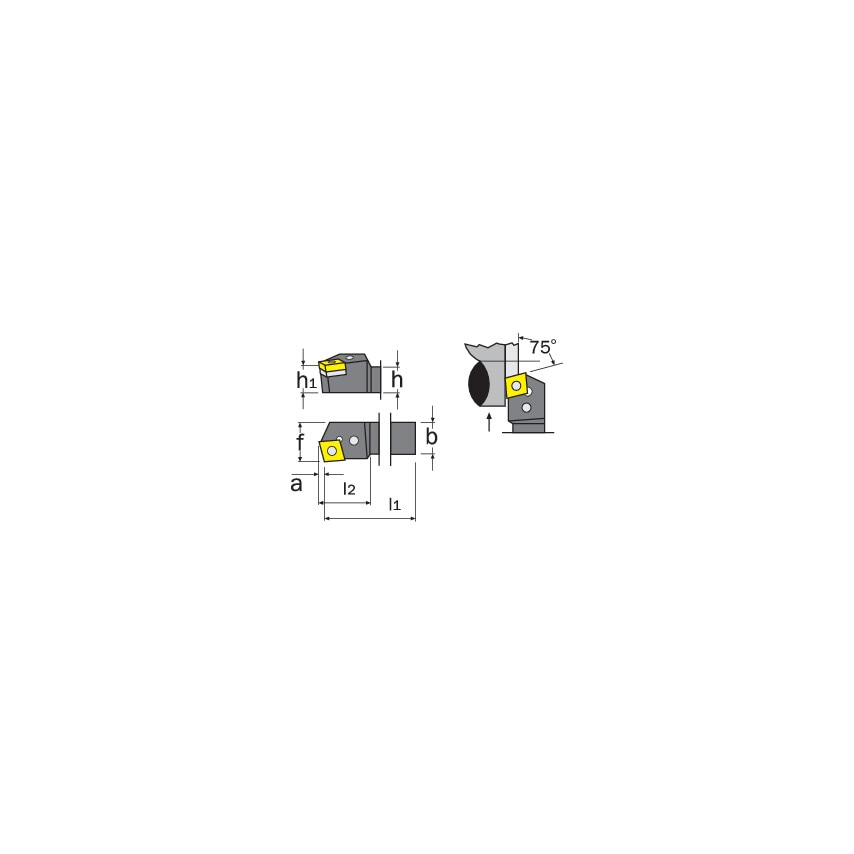

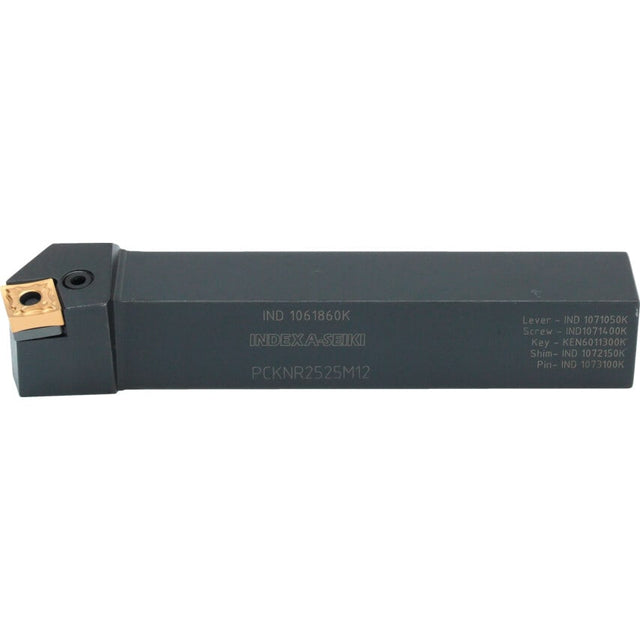

75 approach for negative 80 rhombic inserts.
| Overall Length | 150.00mm |
| Insert Style | CN_A | CN_G |
| Shank Height | 25.00mm |
| Set Type | Individual Toolholder |
| Insert Holding Type | Lever Lock |
| Clearance Angle | 0\u00b0 |
| Shank Style | Offset |
| Toolholder Style | PCKN |
| Insert Size | 1204 |
| Shank Height (h) | 20mm |
| Head Length (l2) | 34 |
| Cutting Height | 25.00mm |
| MFR Part No. | 106-1860 |
| Approach Angle | 75\u00b0 |
| Shank Material | Steel |
| Centre to Cutting Tip | 22mm |
| Shank Width (b) | 25 |
| Insert Shape | 80\u00b0 Rhombic |
| Neck Length | 34mm |
| Cutting Direction | Right Hand |
| Cutting Height (h1) | 25mm |
| Overall Length (l1) | 150mm |
| ISO Designation | PCKNR 2525M12 |
| Coolant Delivery | External |
| Side to Cutting Tip (f) | 22 |
