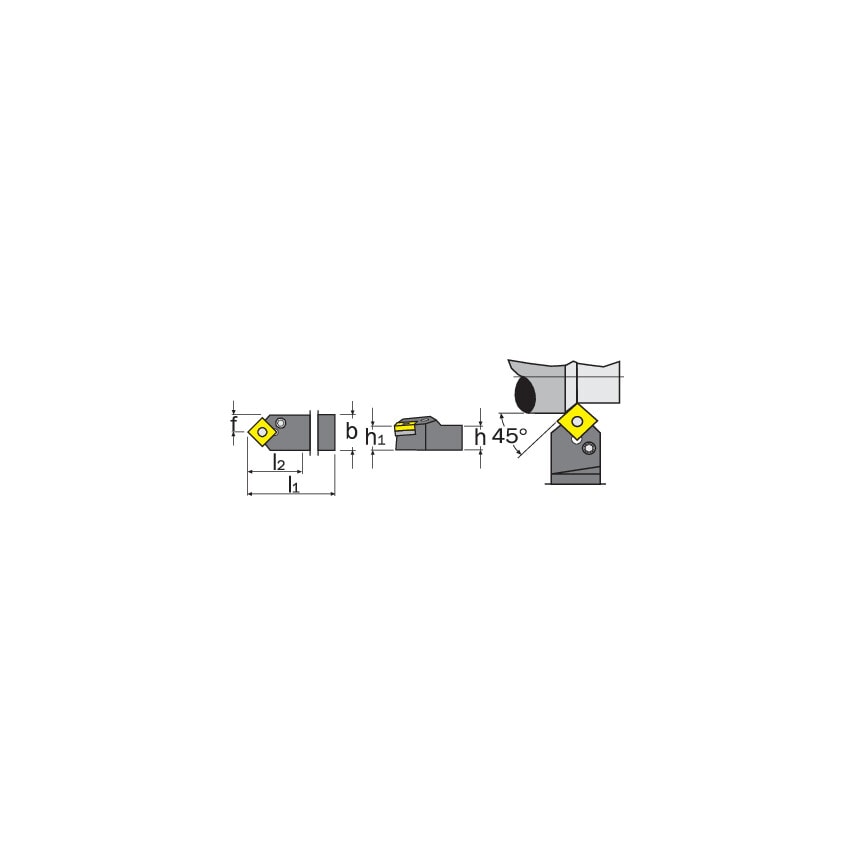

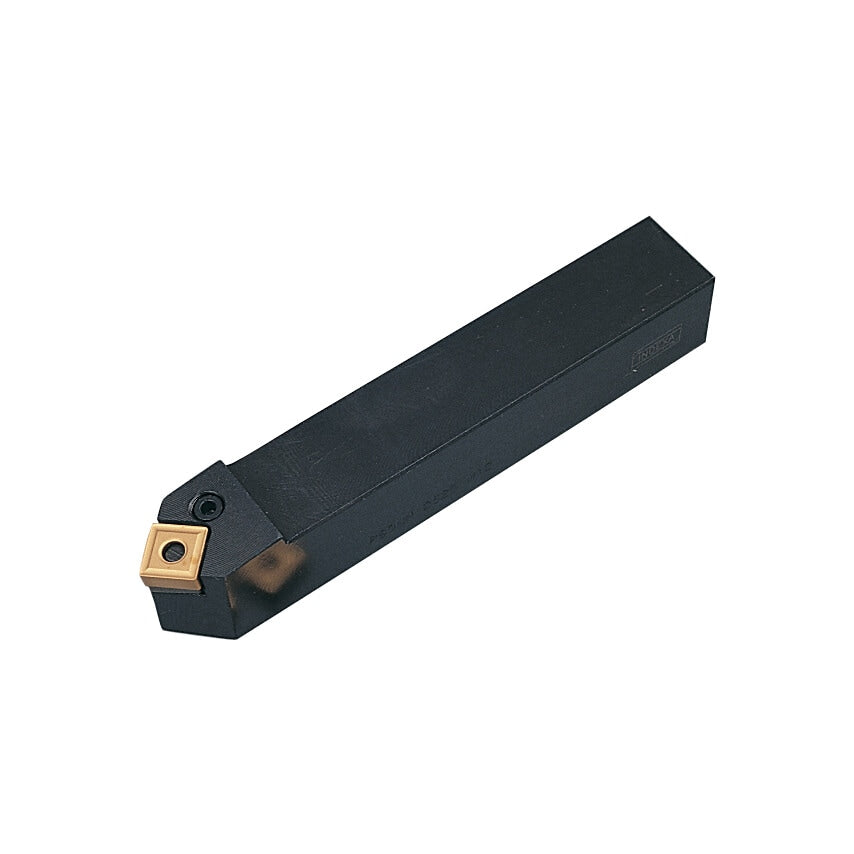

45 straight approach for negative square inserts.
| Cutting Height (h1) | 16mm |
| Neck Length | 22mm |
| Overall Length | 100.00mm |
| Insert Size | 903 |
| Shank Height (h) | 16mm |
| Shank Style | Straight |
| Overall Length (l1) | 100mm |

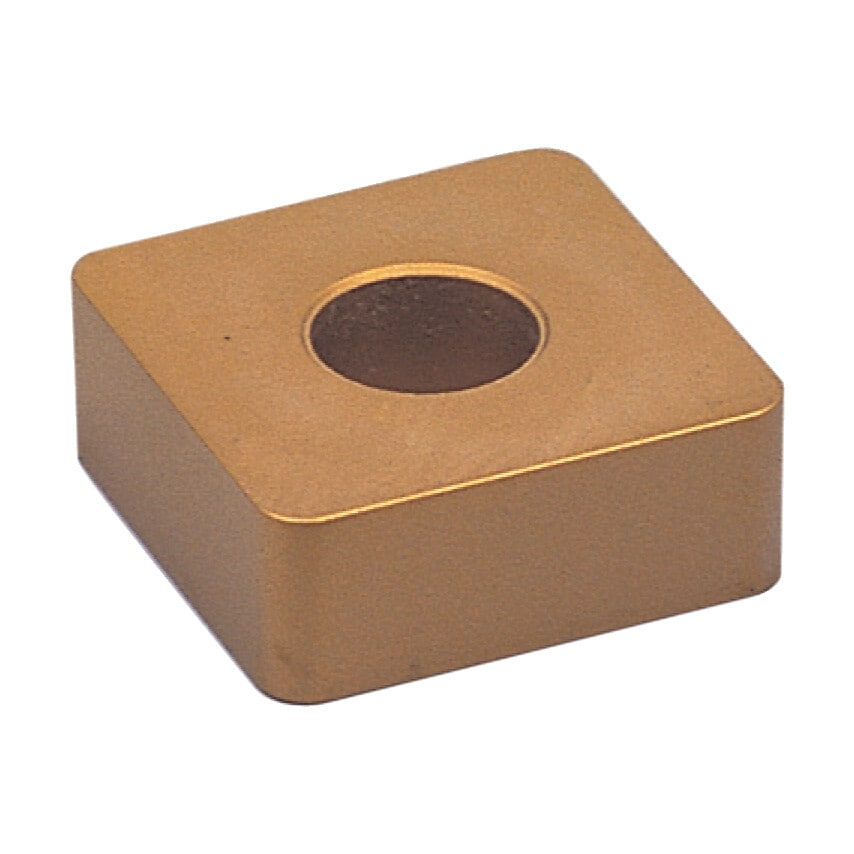

| Insert Style | SN_A | SN_G |
| Centre to Cutting Tip | 8mm |
| Side to Cutting Tip (f) | 8 |
| MFR Part No. | PSDNN1616H09 |
| Coolant Delivery | External |
| Toolholder Style | PSDN |
| Approach Angle | 45\u00b0 |
| Cutting Direction | Neutral |
| Shank Width (b) | 16 |
| Insert Holding Type | Lever Lock |
| Insert Shape | Square |
| Head Length (l2) | 22 |
| Set Type | Individual Toolholder |
| ISO Designation | PSDNN 1616H09 |
| Cutting Height | 16.00mm |
| Shank Material | Steel |
| Shank Height | 16.00mm |
| Clearance Angle | 0\u00b0 |
