90 approach for negative round inserts.

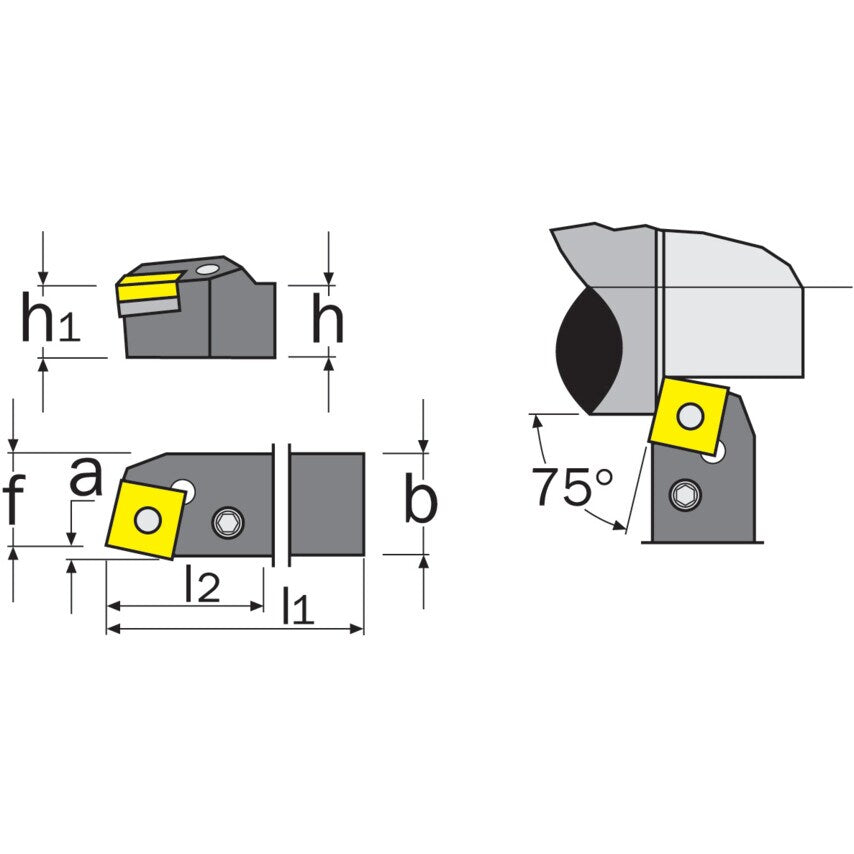

| Shank Material | Steel |
| Overall Length (l1) | 150mm |
| ISO Designation | PSBNR 2525M15 |
| Coolant Delivery | External |
| Side to Cutting Tip (f) | 22 |
| Neck Length | 34mm |
| Set Type | Individual Toolholder |
| Centre to Cutting Tip | 22mm |
| Approach Angle | 75\u00b0 |
| Shank Height | 25mm |
| Cutting Height | 25mm |
| Shank Width (b) | 25 |
| Cutting Height (h1) | 25mm |
| Shank Height (h) | 25mm |
| Insert Size | 1506 |
| Insert Holding Type | Lever Lock |
| Clearance Angle | 0\u00b0 |
| Insert Shape | Square |
| Head Length (l2) | 34 |
| Shank Style | Straight |
| Toolholder Style | PSBN |
| Cutting Direction | Right Hand |
| Insert Style | SN_A | SN_G |
| Overall Length | 150mm |
