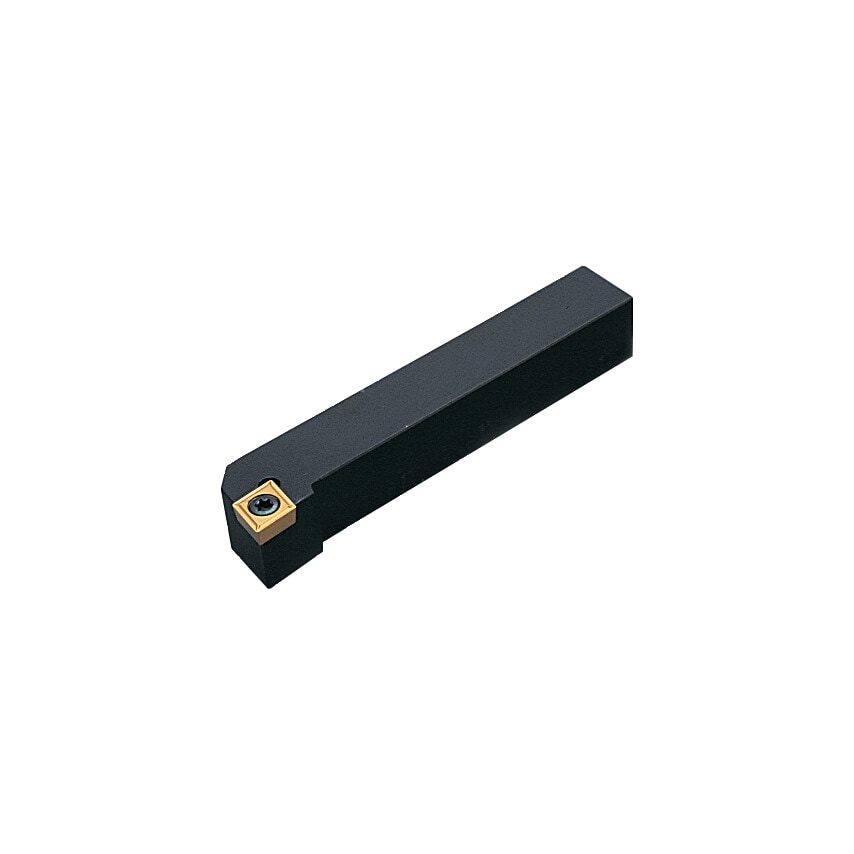

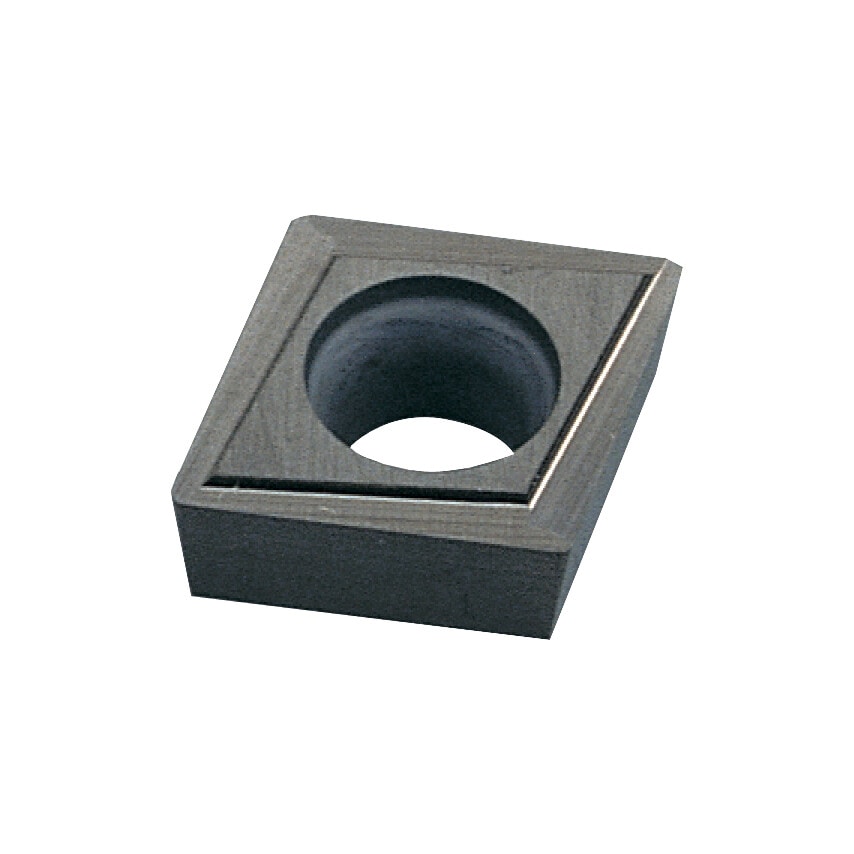

95 approach for 7 positive 80 rhombic inserts.
| Insert Style | CC_T |
| Approach Angle | 95\u00b0 |
| Overall Length (l1) | 80mm |
| Cutting Height (h1) | 12mm |
| Shank Material | Steel |
| Shank Style | Offset |
| Shank Height (h) | 12mm |
| Coolant Delivery | External |
| Insert Size | 09T3 |
| Head Length (l2) | 16mm |
| MFR Part No. | SCLCR1212F09 |
| Insert Cutting Edge Length | 9mm |
| Side to Cutting Tip (f) | 16mm |
| ISO Designation | SCLCL 1212F09 |
| Neck Length | 16mm |
| Insert Inscribed Circle | 9.52mm |
| Insert Holding Type | Screw-On |
| Clearance Angle | 7\u00b0 |
| Cutting Direction | Left Hand |
| Set Type | Individual Toolholder |
| Shank Width (b) | 12mm |
| Toolholder Style | SCLC |
| Insert Shape | 80\u00b0 Rhombic |
