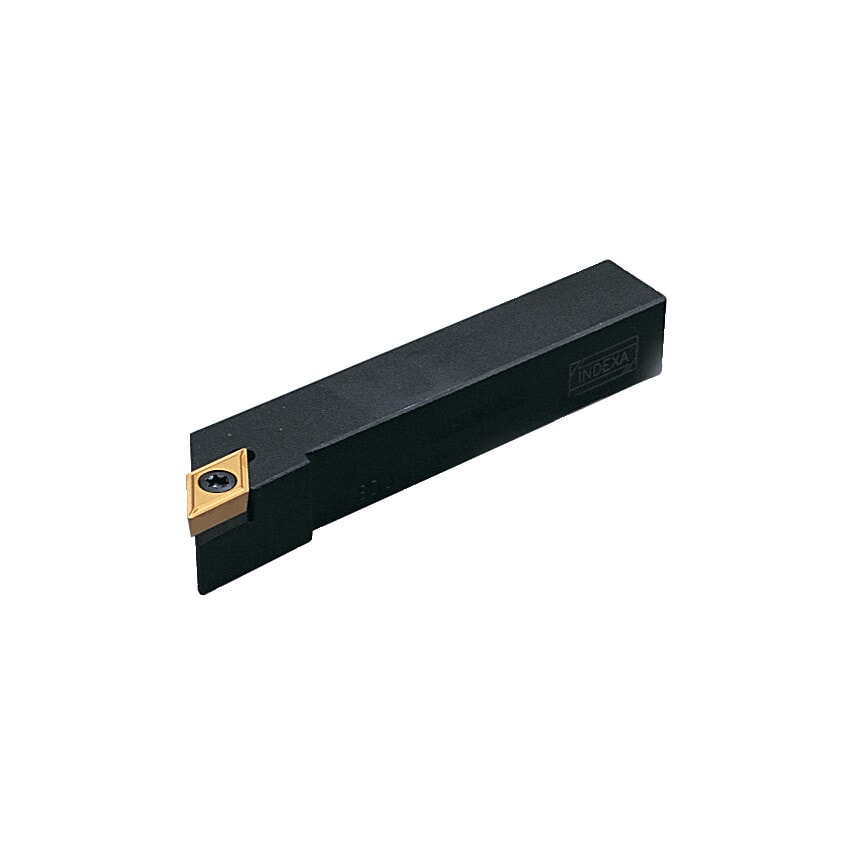

93 approach for 7 positive 55 rhombic inserts.
| Cutting Direction | Left Hand |
| ISO Designation | SDJCL 2525M11 |
| Shank Height (h) | 25mm |
| Approach Angle | 93\u00b0 |
| Shank Material | Steel |
| Insert Size | 11T3 |
| MFR Part No. | SDJCR2525M11 |
| Insert Style | DC_T |
| Neck Length | 22mm |
| Side to Cutting Tip (f) | 32mm |
| Set Type | Individual Toolholder |
| Coolant Delivery | External |
| Insert Shape | 55\u00b0 Rhombic |
| Toolholder Style | SDJC |
| Shank Width (b) | 25mm |
| Shank Style | Offset |
| Insert Holding Type | Screw-On |
| Cutting Height (h1) | 25mm |
| Head Length (l2) | 22mm |
| Overall Length (l1) | 150mm |
| Clearance Angle | 7\u00b0 |
| Insert Inscribed Circle | 9.52mm |
| Insert Cutting Edge Length | 11mm |
