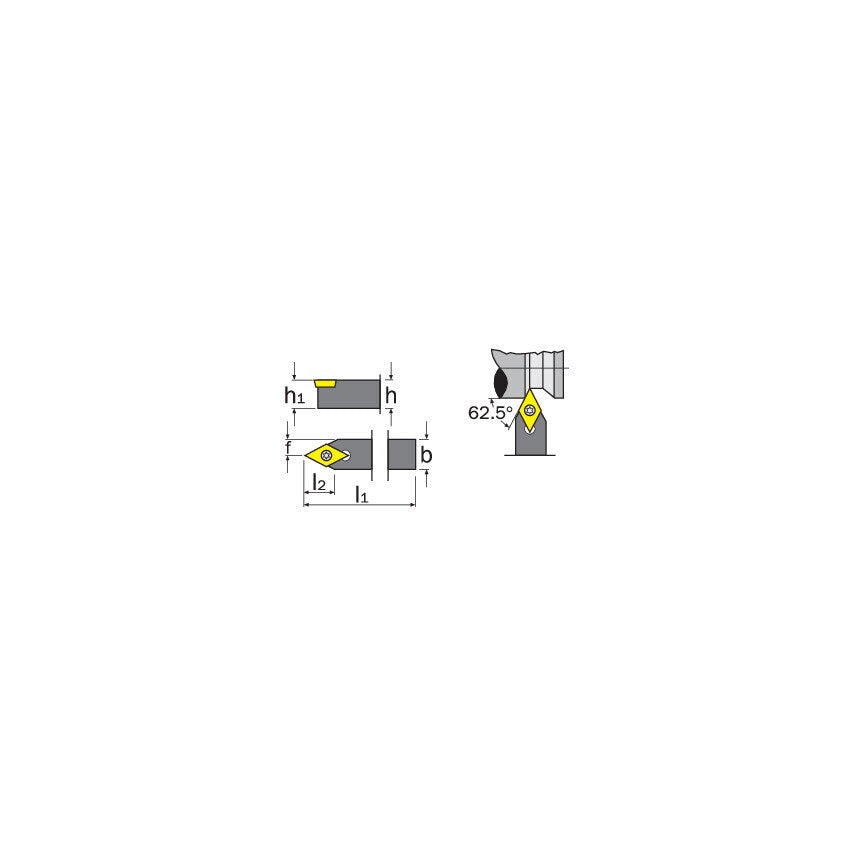

62.5 approach for 7 positive 55 rhombic inserts.
| Shank Material | Steel |
| Overall Length (l1) | 125mm |
| Shank Width (b) | 20mm |

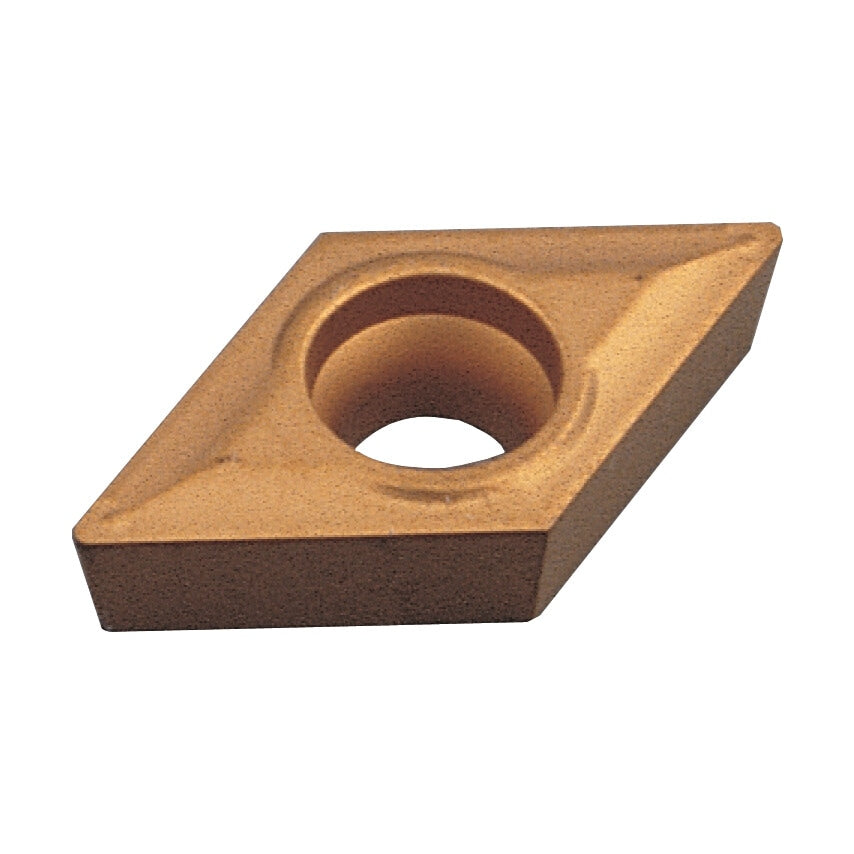

| Insert Shape | 55\u00b0 Rhombic |
| Insert Inscribed Circle | 9.52mm |
| Insert Cutting Edge Length | 11mm |
| Shank Style | Straight |
| Cutting Height (h1) | 20mm |

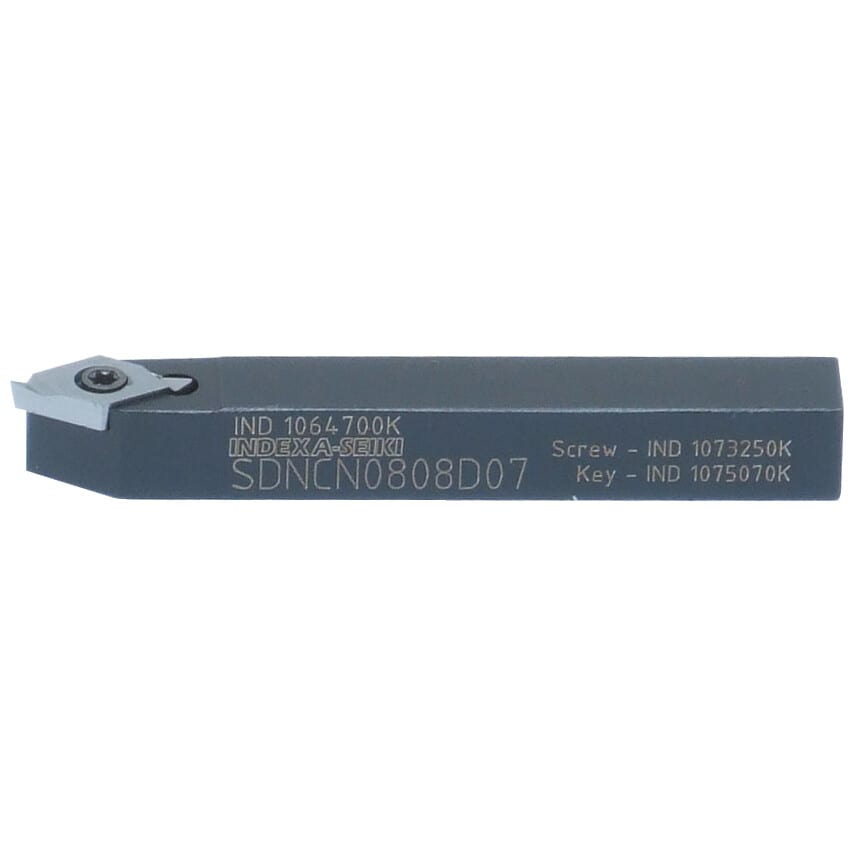

| Product Type | External Toolholder |
| Head Length (l2) | 22mm |
| Insert Holding Type | Screw-On |
| Set Type | Individual Toolholder |
| Clearance Angle | 7\u00b0 |
| Insert Size | 11T3 |
| Insert Style | DC_T |
| Neck Length | 22mm |
| Approach Angle | 62.5\u00b0 |
| Coolant Delivery | External |
| ISO Designation | SRDCN 1616H08 |
| Side to Cutting Tip (f) | 10mm |
| Shank Height (h) | 20mm |
| MFR Part No. | SDNCN2020K11 |
| Cutting Direction | Neutral |
| Toolholder Style | SRDC |
