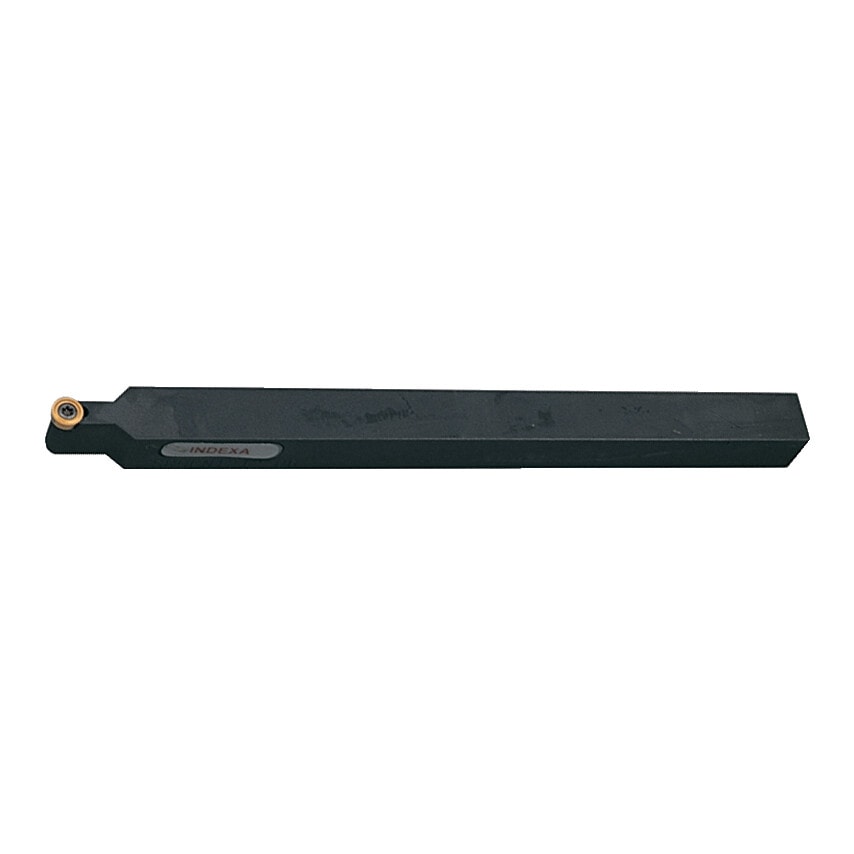

90 approach for positive round inserts.

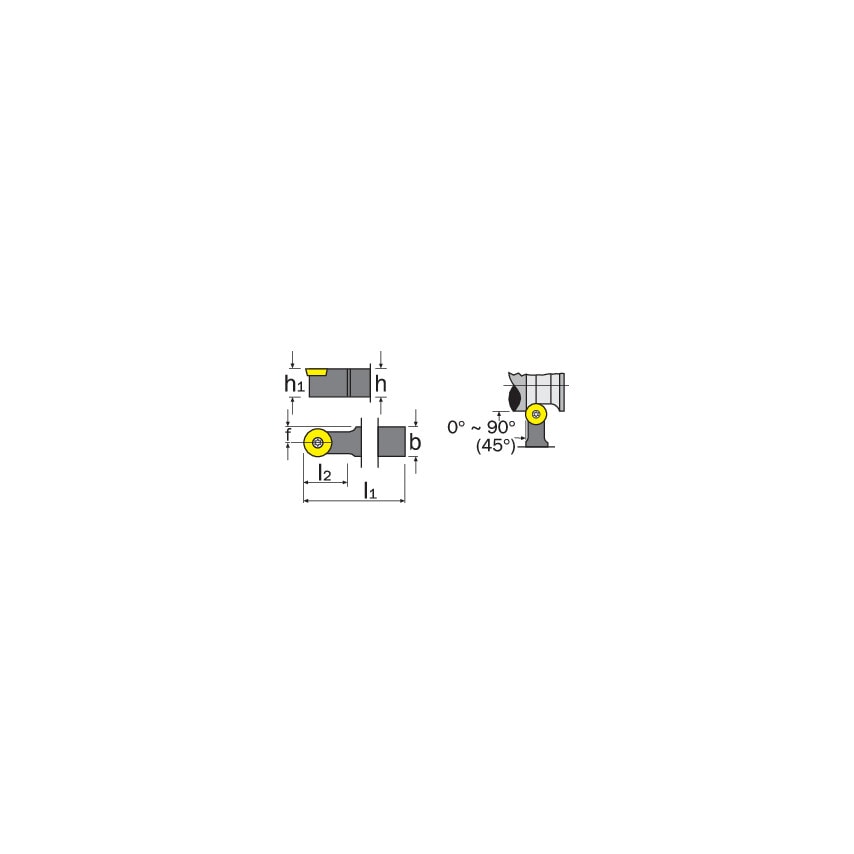

| Clearance Angle | 7\u00b0 |
| Insert Size | 0803MO |
| Neck Length | 20mm |
| Insert Inscribed Circle | 8mm |

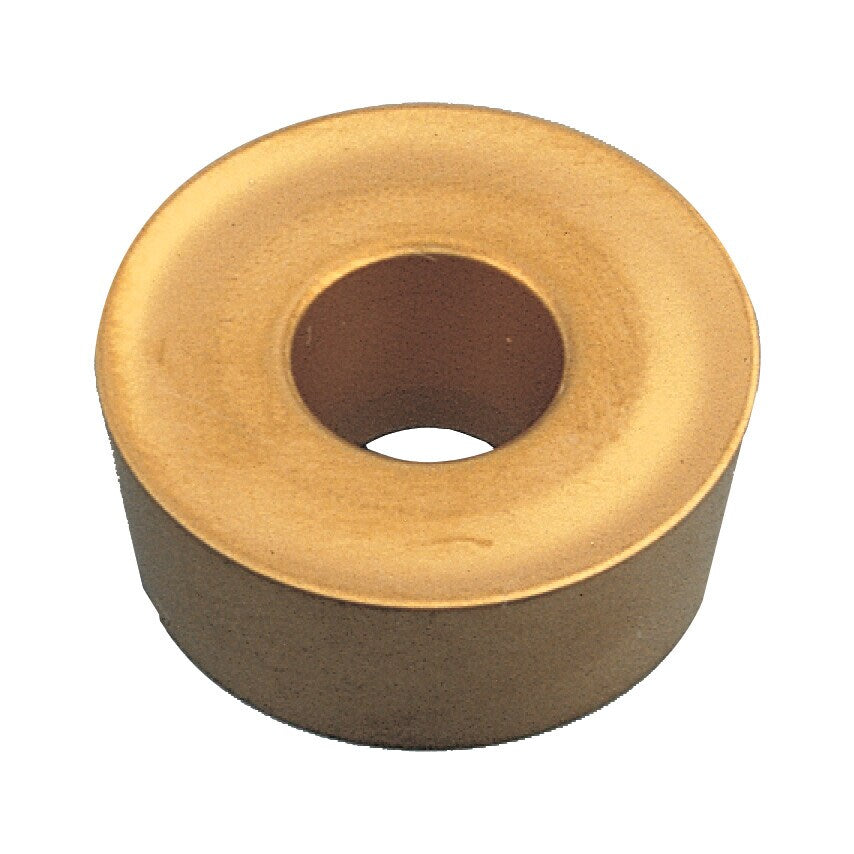

| Insert Shape | Round |
| Side to Cutting Tip (f) | 12mm |
| Toolholder Style | SRDC |
| Insert Cutting Edge Length | 6mm |
| Shank Material | Steel |
| Cutting Height (h1) | 20mm |
| Cutting Direction | Neutral |
| Shank Width (b) | 20mm |
| Shank Style | Straight |
| Coolant Delivery | External |
| Overall Length (l1) | 125mm |
| Approach Angle | 90\u00b0 |
| MFR Part No. | SRDCN2020K08 |
| Shank Height (h) | 20mm |
| Insert Style | RC_M | RC_T |
| Insert Holding Type | Screw-On |
| Set Type | Individual Toolholder |
| ISO Designation | SRDCN 2525M06 |
| Head Length (l2) | 20mm |
