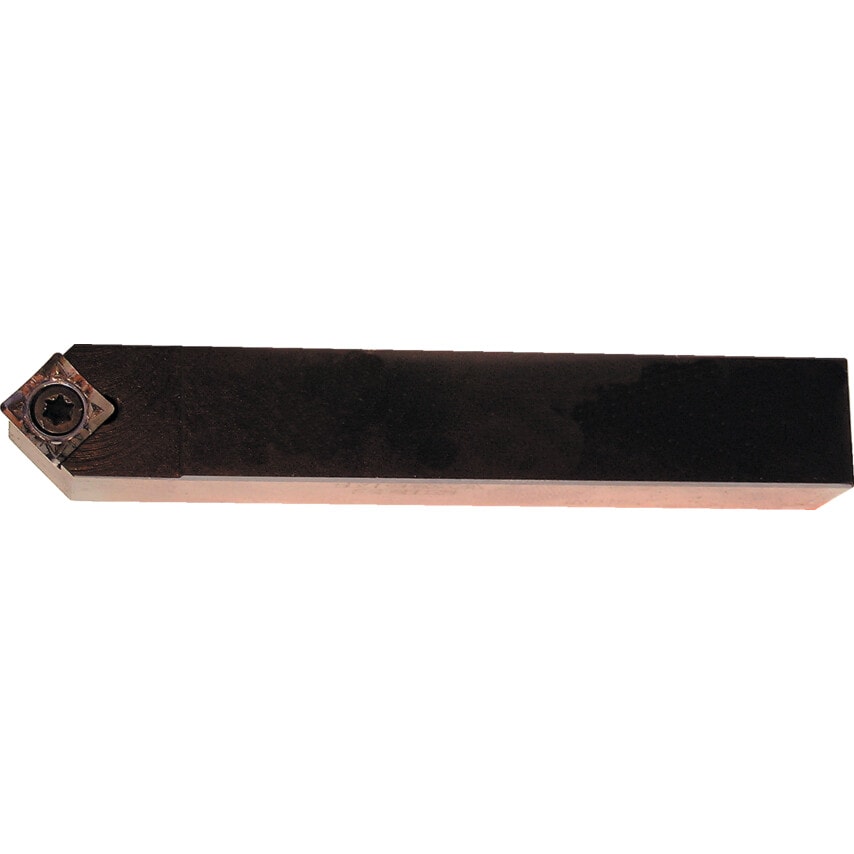

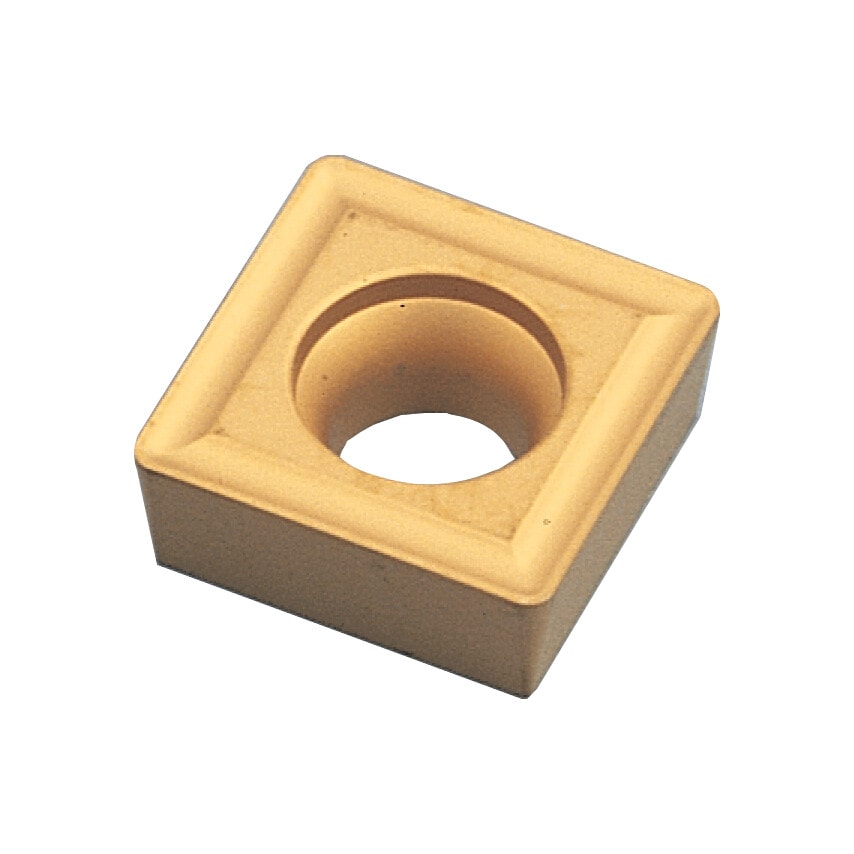

45 approach for 7 positive square inserts.

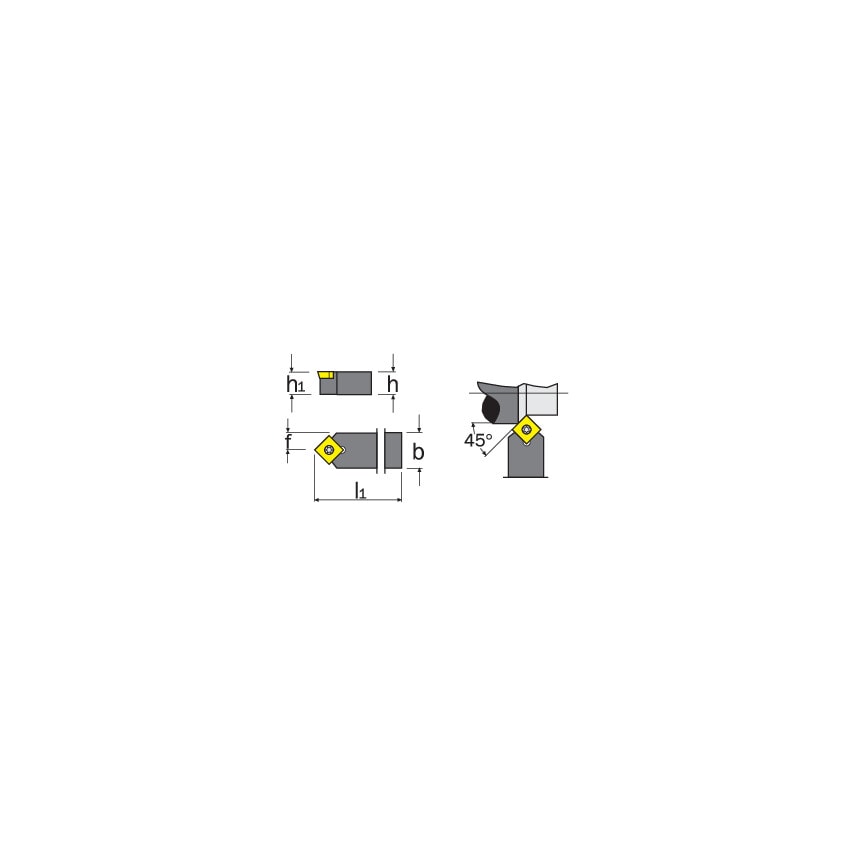

| Shank Width (b) | 12mm |
| Insert Holding Type | Screw-On |
| ISO Designation | SSDCN 1616H09 |
| Shank Style | Straight |
| Side to Cutting Tip (f) | 6mm |
| Cutting Direction | Neutral |
| Shank Material | Steel |
| Toolholder Style | SSDC |
| Coolant Delivery | External |
| Insert Cutting Edge Length | 9mm |
| Overall Length (l1) | 80mm |
| Insert Inscribed Circle | 9.52mm |
| MFR Part No. | SSDCN1212F09 |
| Insert Style | SC_T |
| Approach Angle | 45\u00b0 |
| Set Type | Individual Toolholder |
| Shank Height (h) | 12mm |
| Insert Size | 09T3 |
| Cutting Height (h1) | 12mm |
| Insert Shape | Square |
| Clearance Angle | 7\u00b0 |
