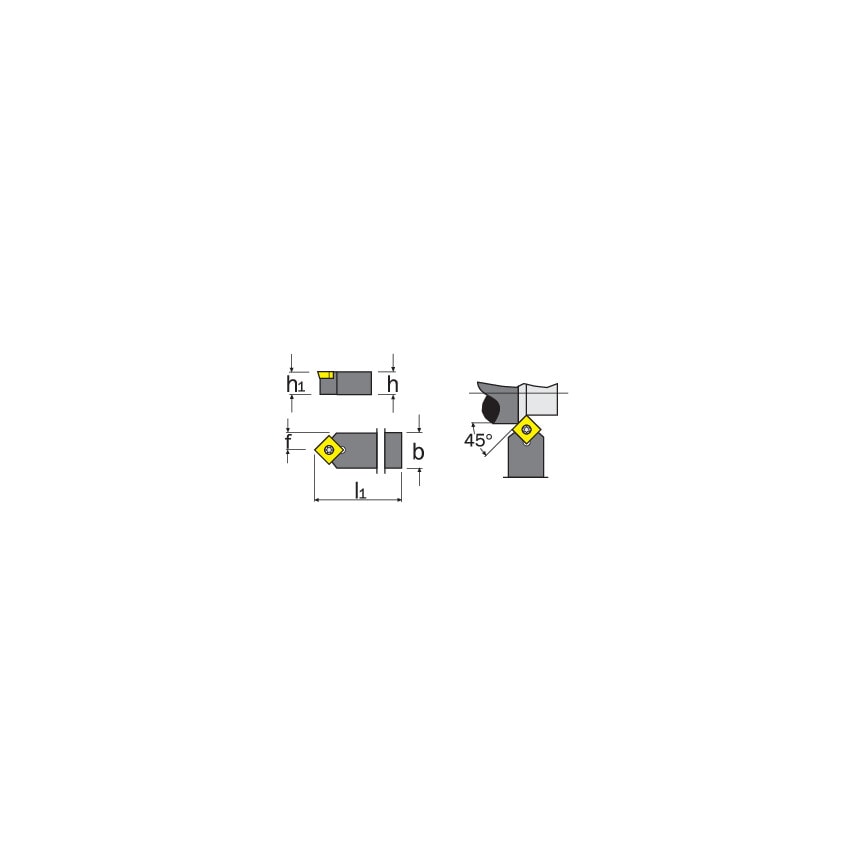

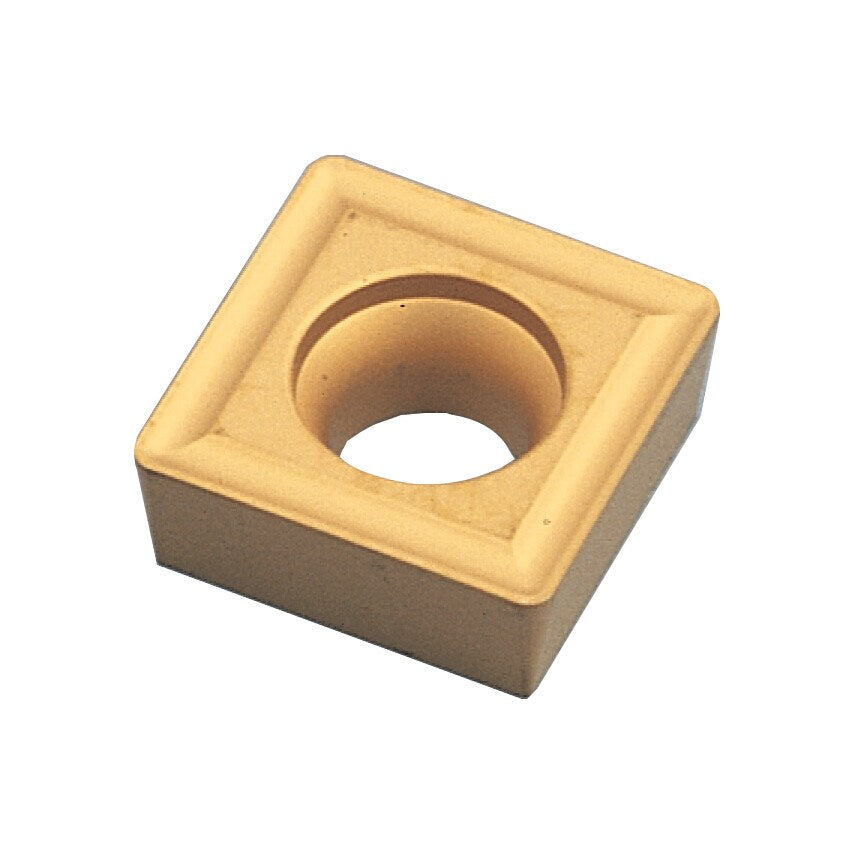

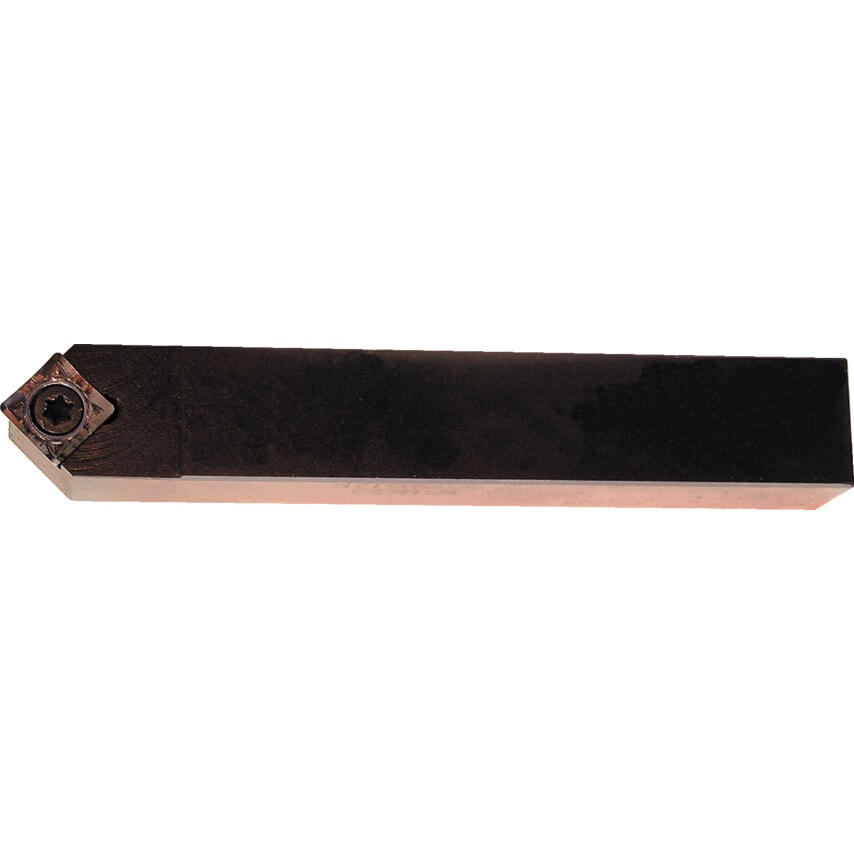

45 approach for 7 positive square inserts.
| Clearance Angle | 7\u00b0 |
| Set Type | Individual Toolholder |
| Insert Cutting Edge Length | 12mm |
| Shank Material | Steel |
| Shank Width (b) | 20mm |
| Cutting Height (h1) | 20mm |
| Insert Shape | Square |
| Cutting Direction | Neutral |
| Coolant Delivery | External |
| Insert Style | SC_T |
| Shank Style | Straight |
| Shank Height (h) | 20mm |
| Side to Cutting Tip (f) | 10mm |
| Insert Size | 1204 |
| MFR Part No. | SSDCN2020K12 |
| Approach Angle | 45\u00b0 |
| Insert Inscribed Circle | 12.7mm |
| Overall Length (l1) | 125mm |
| Insert Holding Type | Screw-On |
| ISO Designation | SSSCL 1212F09 |
| Toolholder Style | SSSC |
