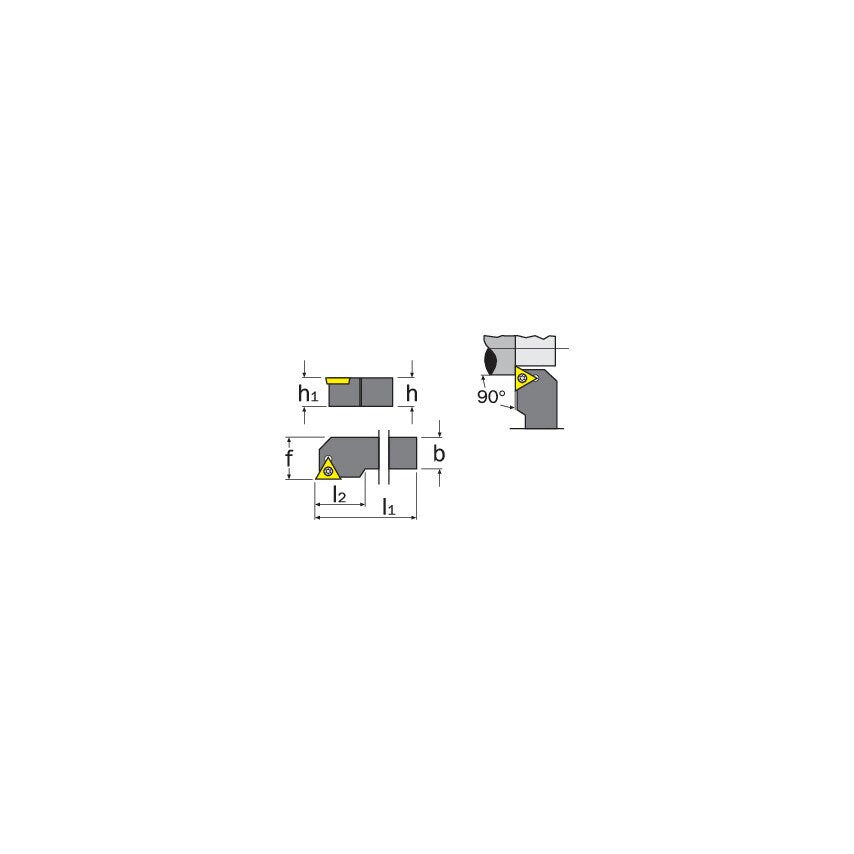

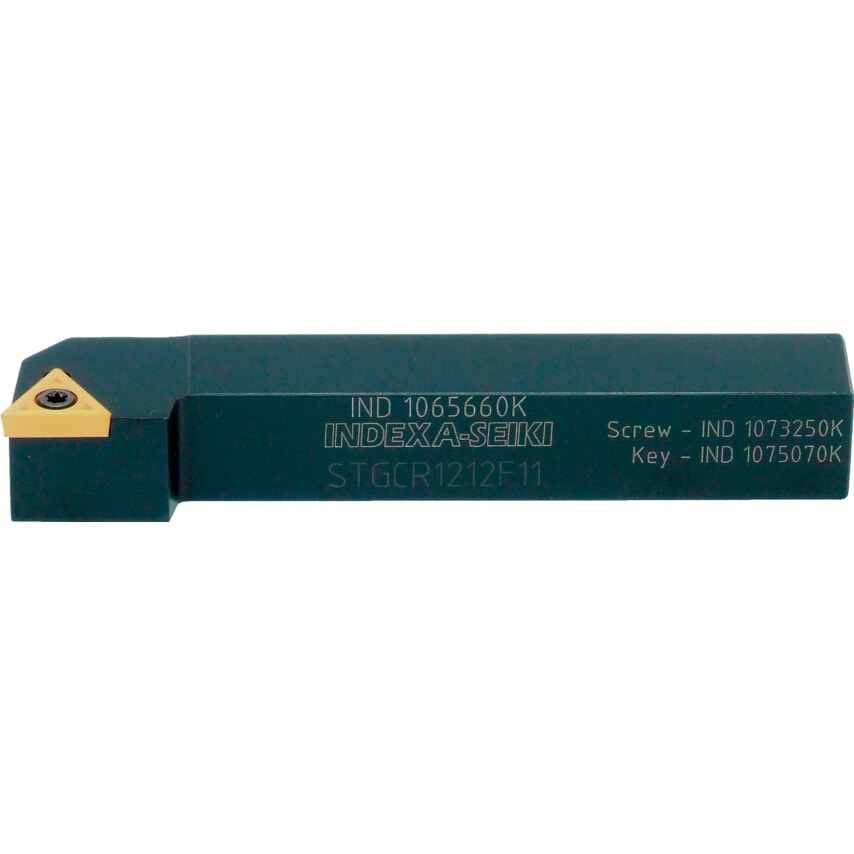

90 approach for 7 positive triangular inserts.
| Set Type | Individual Toolholder |
| MFR Part No. | STGCR1010E09 |
| Clearance Angle | 7\u00b0 |
| Head Length (l2) | 16mm |
| Shank Height (h) | 10mm |

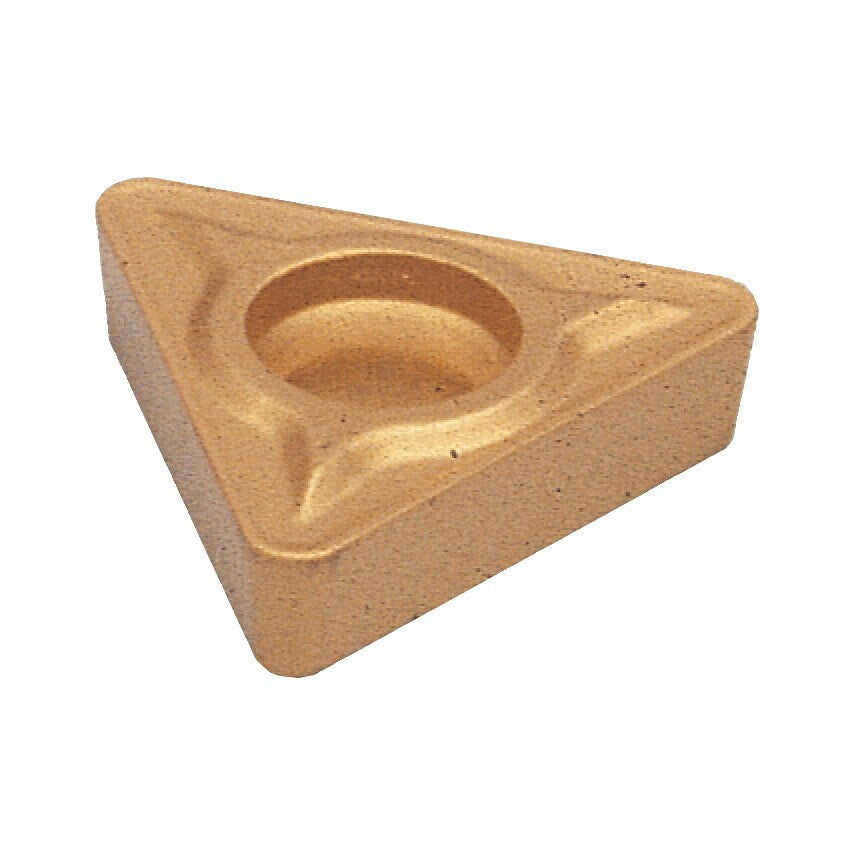

| Insert Shape | Triangular |
| Insert Inscribed Circle | 5.56mm |
| Insert Style | TC_T |
| Insert Cutting Edge Length | 9mm |
| Shank Material | Steel |
| Cutting Direction | Left Hand |
| ISO Designation | STGCL 1010E09 |
| Cutting Height (h1) | 10mm |
| Approach Angle | 90\u00b0 |
| Shank Width (b) | 10mm |
| Insert Holding Type | Screw-On |
| Overall Length (l1) | 70mm |
| Coolant Delivery | External |
| Shank Style | Offset |
| Side to Cutting Tip (f) | 12mm |
| Insert Size | 09T3 |
| Neck Length | 16mm |
| Toolholder Style | STGC |
