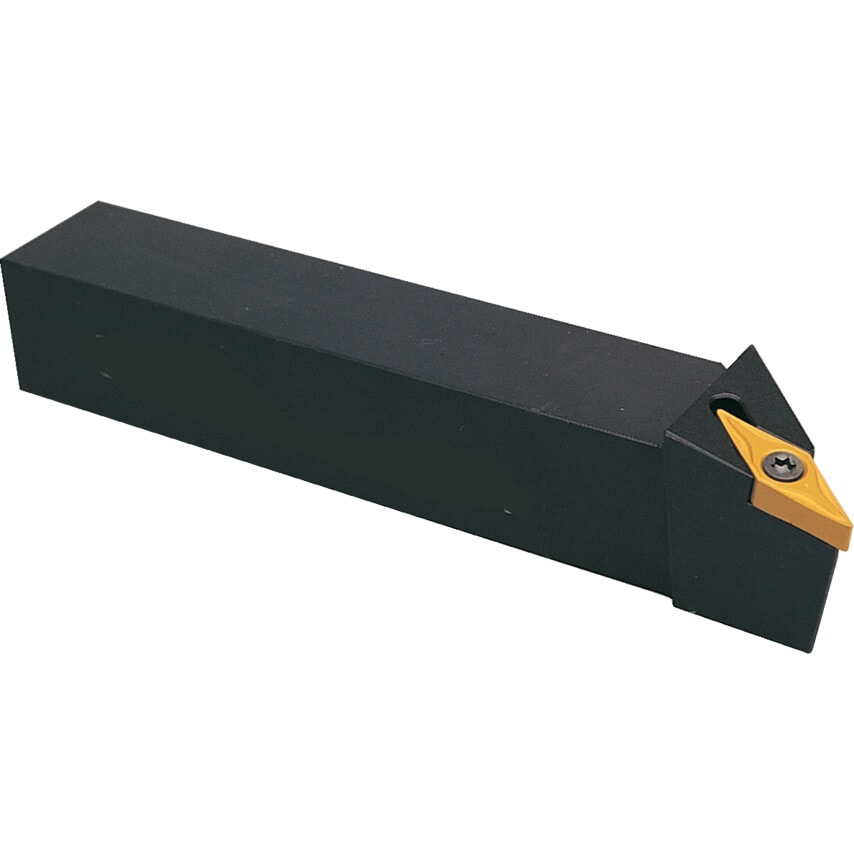

93 approach for 35 negative rhombic inserts.
| Coolant Delivery | External |

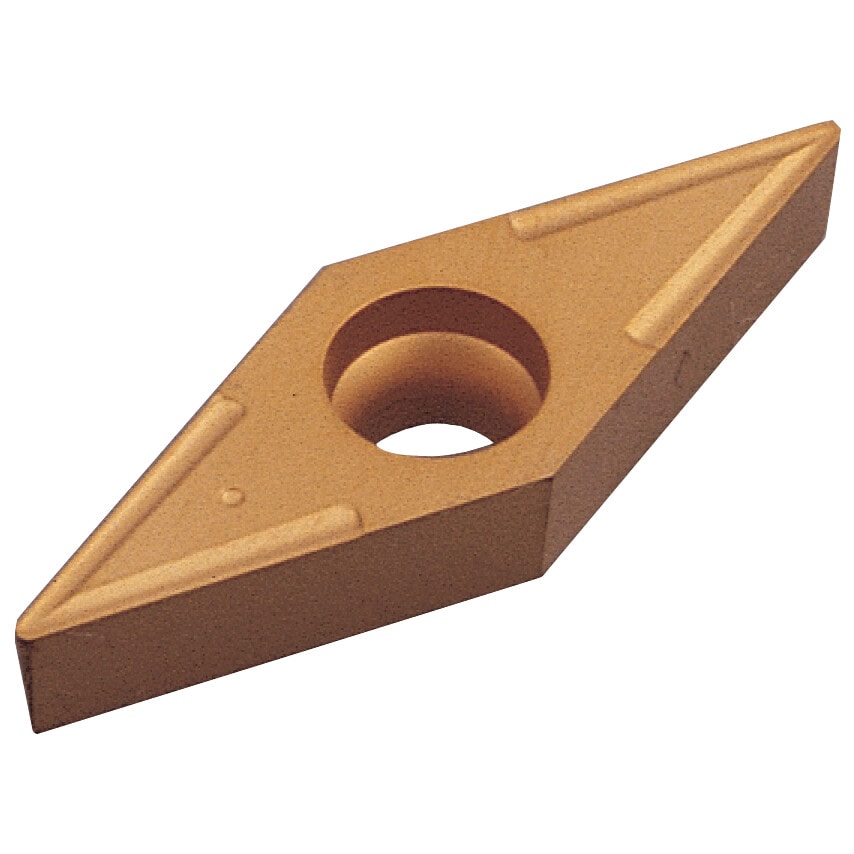

| Insert Shape | 35\u00b0 Rhombic |

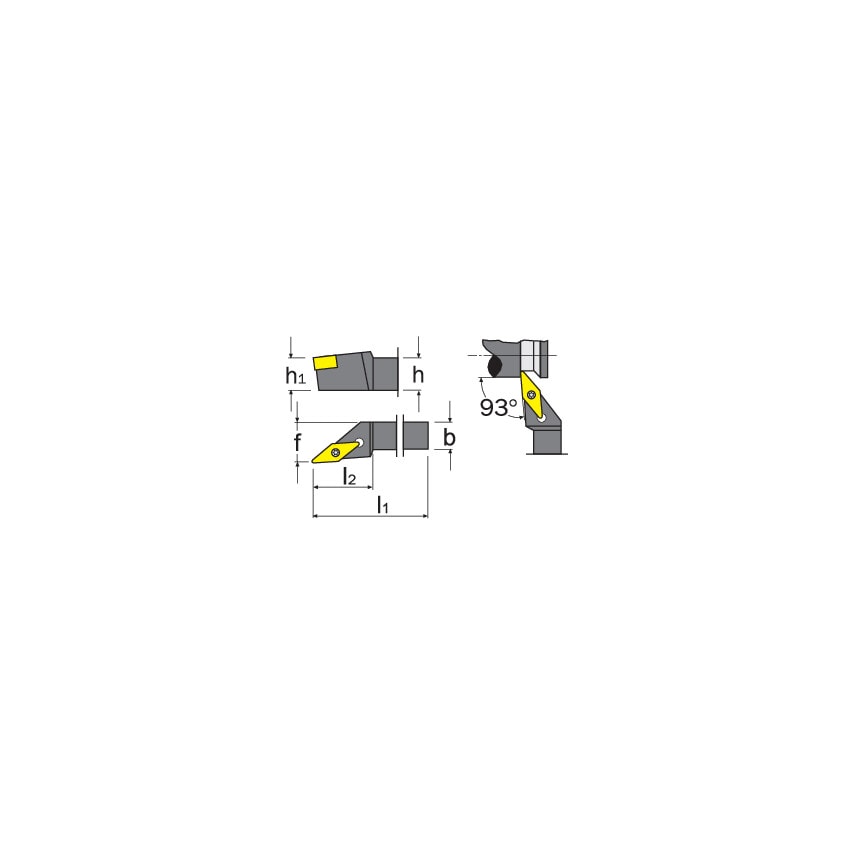

| Side to Cutting Tip (f) | 25mm |
| Clearance Angle | 0\u00b0 |
| Cutting Height (h1) | 20mm |
| ISO Designation | SVJNL 2020K12 |
| Neck Length | 22mm |
| Toolholder Style | SVJN |
| Set Type | Individual Toolholder |
| Insert Style | VN_G |
| Shank Style | Straight |
| MFR Part No. | SVJNL2020K12 |
| Cutting Direction | Right Hand |
| Insert Holding Type | Screw-On |
| Head Length (l2) | 22mm |
| Shank Height (h) | 20mm |
| Insert Size | 12T3 |
| Shank Material | Steel |
| Insert Cutting Edge Length | 12mm |
| Approach Angle | 93\u00b0 |
| Shank Width (b) | 20mm |
| Overall Length (l1) | 125mm |
