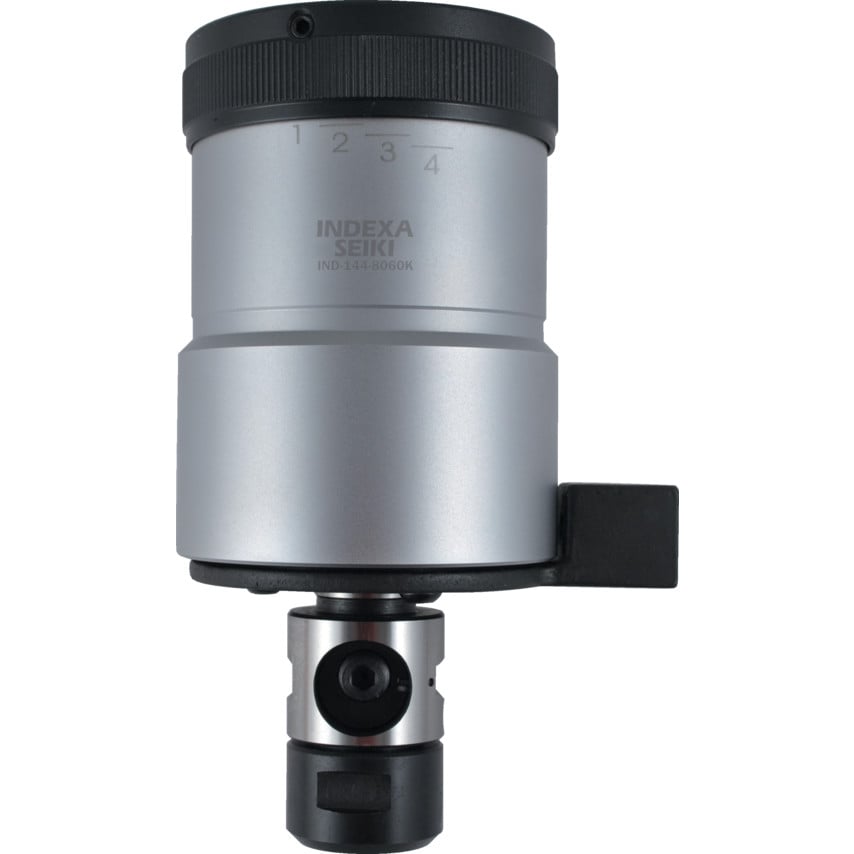

Adjustable torque control protects against tap breakage/overload. Auto-reverse withdraws the tap without reversing the machine spindle. Each set is supplied complete with two rubber-flex collets, two Morse arbors, kick bar and wrenches. Suitable for use with ISO, DIN and ANSI taps. These tapping heads are suitable for light and medium duty applications, not for production machining. Range capacity is nominal sizes only and is dependent on tap shank dimensions (ISO or DIN).
| Reverse Ratio | 0.000715278 |

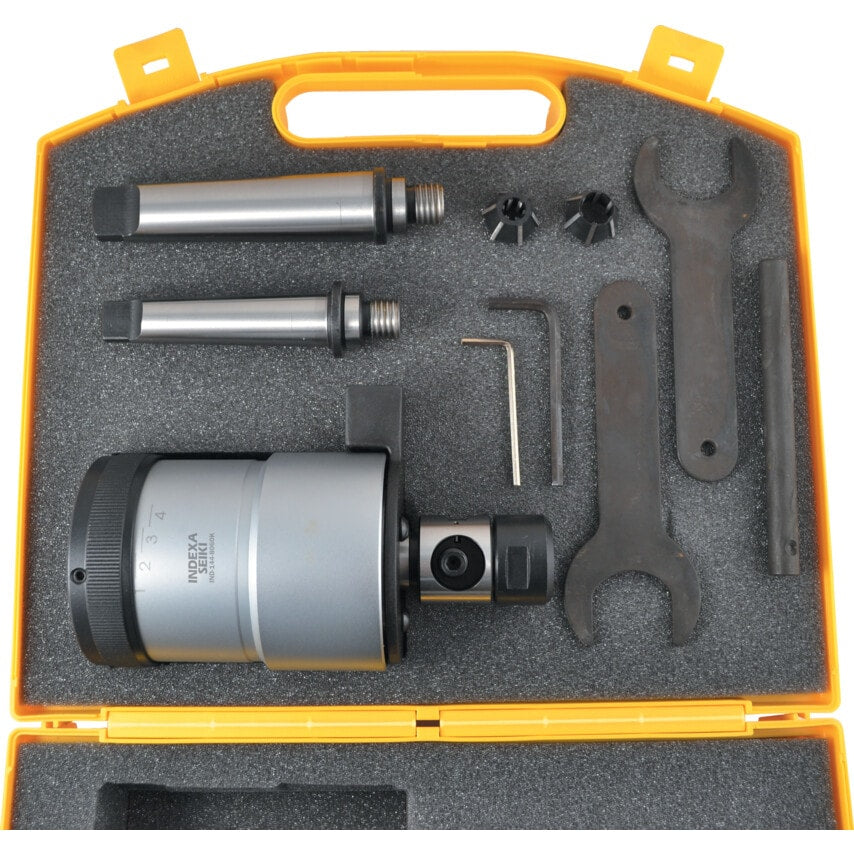

| Includes | (2) Morse Arbors | (2) Rubber Flex Collets | Carrying Cases | Kick Bar | Tapping Head | Wrenches |
| Shank Type | MT Taper |
| Number of Pieces | 9 |
| Type | Tapping Head Set |
| Maximum Speed | 600rpm |
| Overall Length | 205.0mm |
| Compatible Tap Standard | BS 949 | DIN 371 | DIN 376 | ISO 529 |
| Model Number | JSN20 |
| Body Diameter | 90.0mm |
| For Use With | JSN-20 |
| Clockwise Expansion | 14.0mm |
| Compatible Tap Size | M8 - M20 |
| Shank Size | MT3 | MT4 |
| Clockwise Compression | 6.0mm |
| MFR Part No. | JSN20 (2017) |
