Adjustable torque control protects against tap breakage/overload. Auto-reverse withdraws the tap without reversing the machine spindle. Each set is supplied complete with two rubber-flex collets, two Morse arbors, kick bar and wrenches. Suitable for use with ISO, DIN and ANSI taps. These tapping heads are suitable for light and medium duty applications, not for production machining. Range capacity is nominal sizes only and is dependent on tap shank dimensions (ISO or DIN).
| Number of Pieces | 9 |

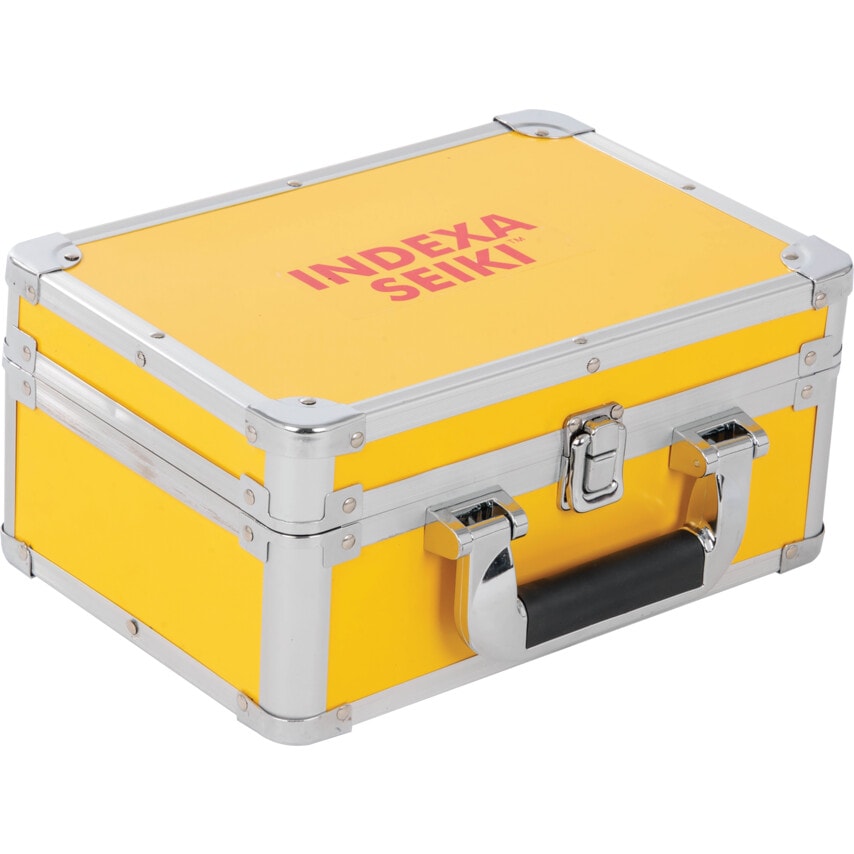

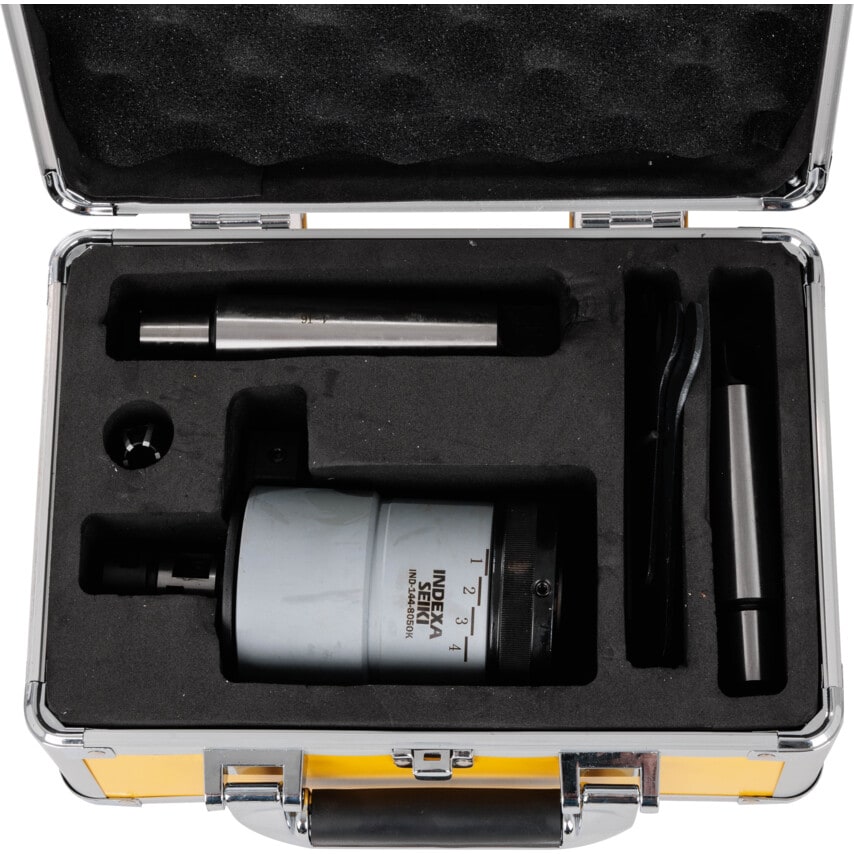

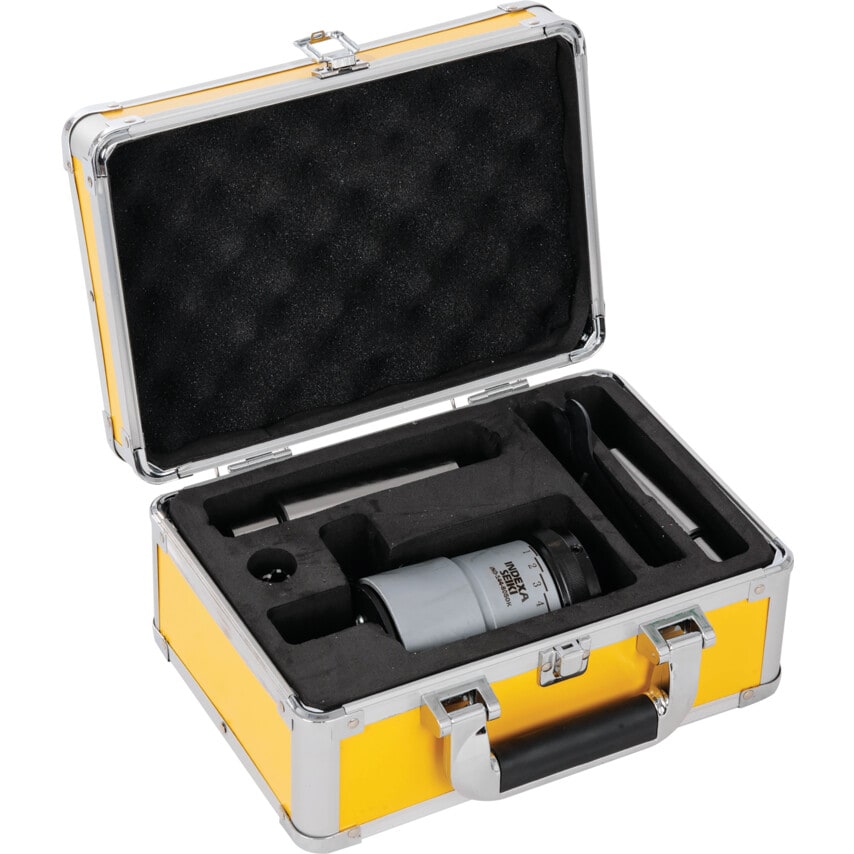

| Includes | (2) Morse Arbors | (2) Rubber Flex Collets | Carrying Cases | Kick Bar | Tapping Head | Wrenches |
| For Use With | JSN-12 |
| Type | Tapping Head Set |
| Overall Length | 156.0mm |
| Maximum Speed | 1000rpm |
| Shank Type | MT Taper |
| Compatible Tap Size | M4 - M12 |
| Clockwise Expansion | 14.0mm |
| Model Number | JSN12 |
| MFR Part No. | JSN12 (2017) |
| Compatible Tap Standard | BS 949 | DIN 371 | DIN 376 | ISO 529 |
| Clockwise Compression | 5.0mm |
| Reverse Ratio | 0.000715278 |
| Shank Size | MT3 | MT4 |
| Body Diameter | 75.0mm |
