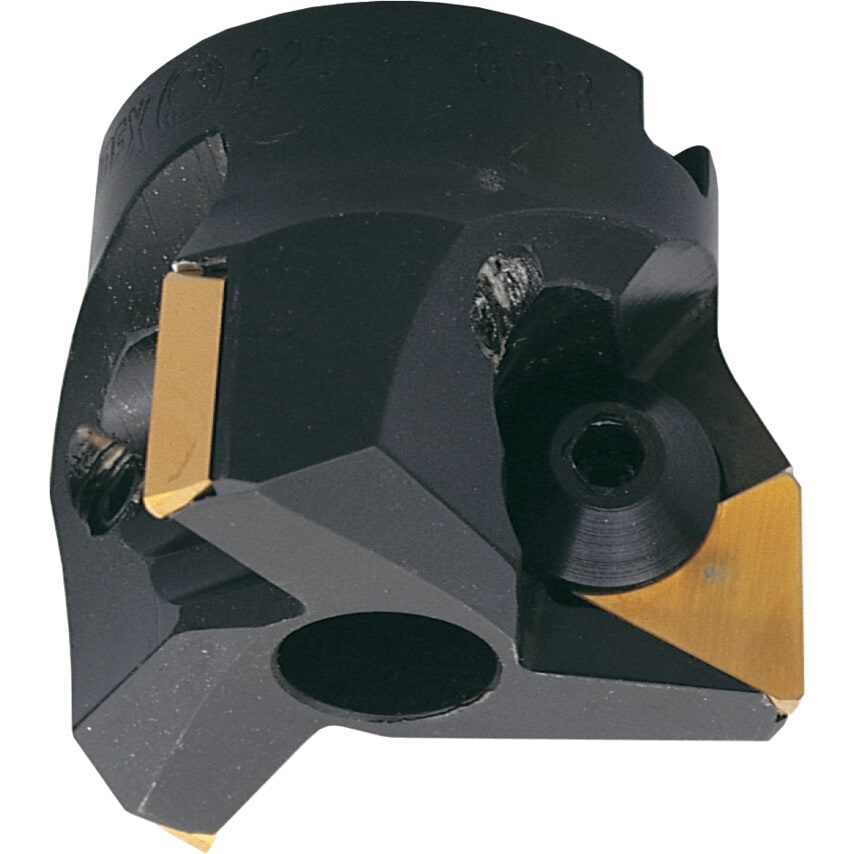

Tri Square 90 Shell Mills for TPKN 2204

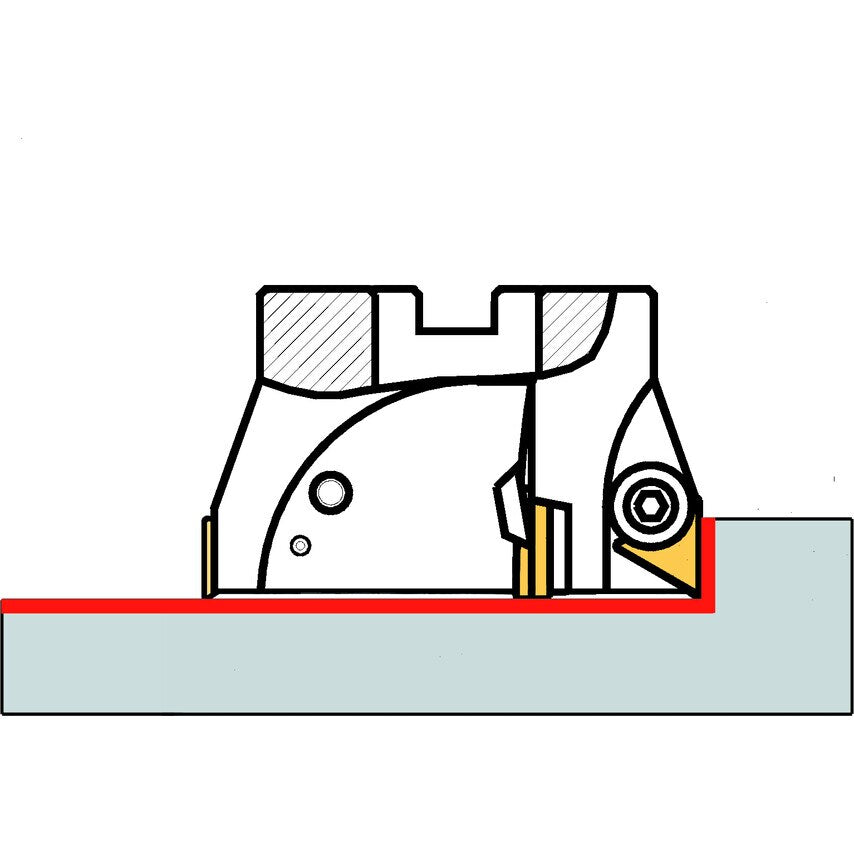

Uses top clamping triangular inserts to produce a 90 shoulder at the edge of a milled face. This is of major benefit when taking a number of cuts across a face as the shoulder produced is without steps.

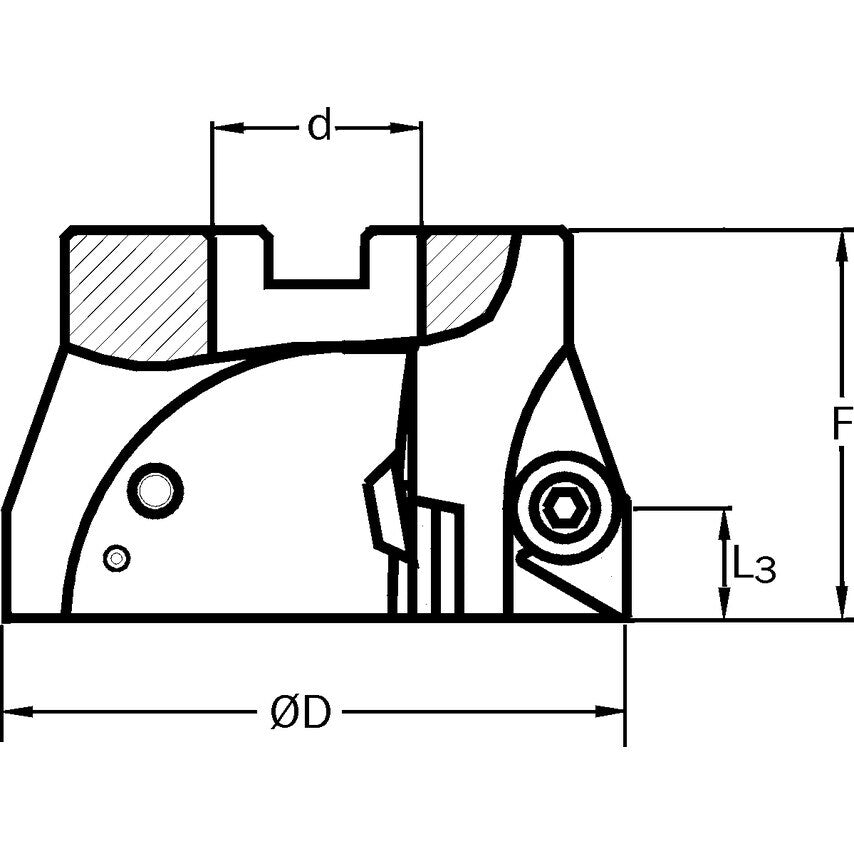

| Maximum Cutting Diameter | 160mm |
| Depth of Cut | 12mm |
| Product Type | Tri Square Milling Cutter |
| Insert Size | 2204 |
| Insert Style | TPKN |
| Coolant Delivery | External |
| Series | Tri Sq |
| Insert Shape | Triangle |
| Milling Application | Shouldering |
| Toolholder Material | Steel |
| Number of Inserts | 7 |
| Cutting Edge Angle | 90\u00b0 |
| Insert Holding Type | Top Clamp |
| Arbor Hole Diameter | 40mm |
