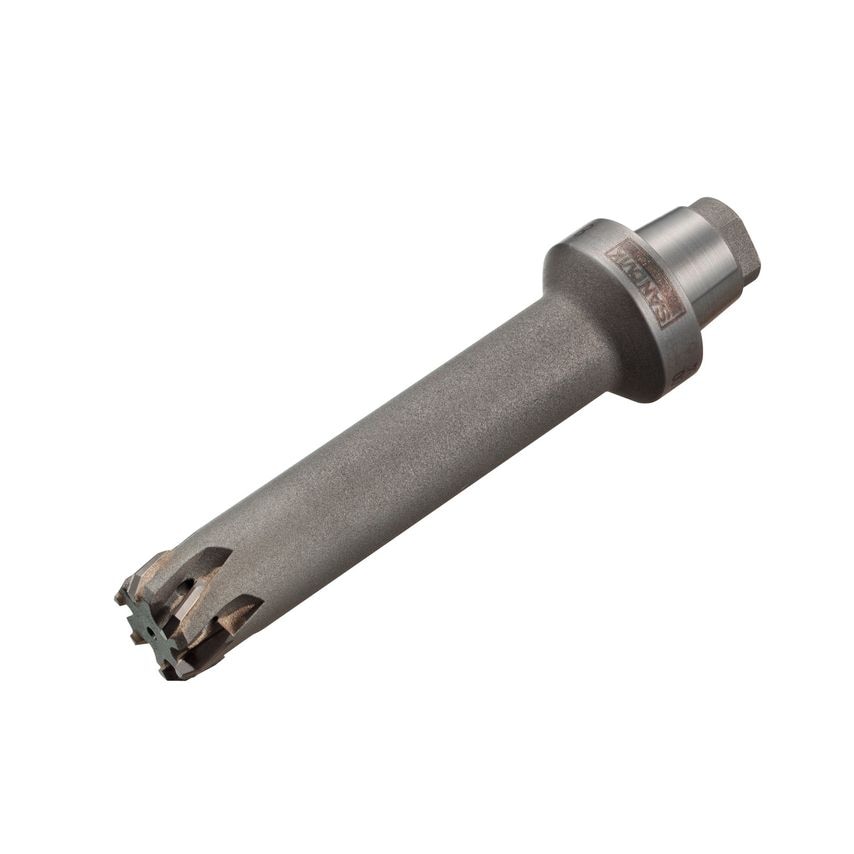

Product Range: CoroReamer 830Tool Type: ReamersCoroReamer 830 is a modular designed tool with replaceable cutting head, easy to change while still in the machine tool spindle. The cutting head is located in the holder by a precision made tapered coupling for highest concentricity and repeatability with a radial run-out of 3m (120inch)Features & Benefits- High surface finish and operation security- High penetration rate- Fast and easy head change with high accuracy < 3m (120inch)- Boring range: 1031.75 mm (0.394-1.250 inch)- Achievable hole tolerance: H7- Brazed cermet inserts in grade P10R- Effective chip evacuation by directing cutting fluid at each edge- Short and long shank options- Head changeApplication Area- For steel, nodular cast iron and malleable cast iron materials- Through holes, angled surface and cross hole

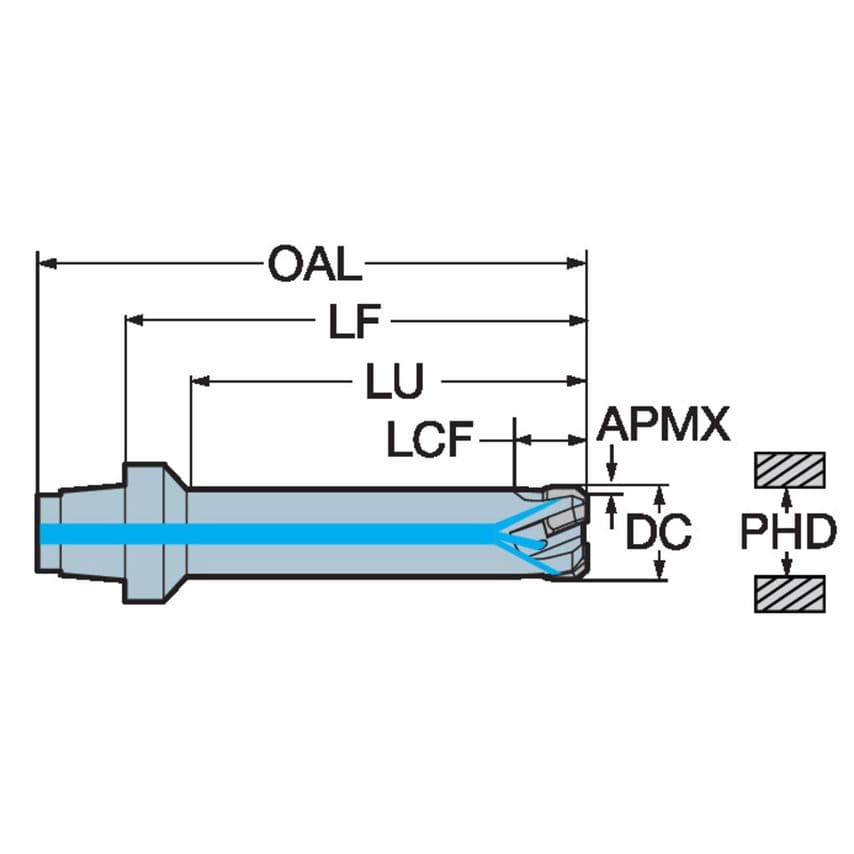

| Rotational Speed Maximum | 50000 1/min |
| Cutting Diameter | 12mm |
| Functional Length | 60mm |
| Usable Length | 45mm |
| Achievable Hole Tolerance | H7 |
| Overall Length | 71.35mm |
| Unit Measured | Metric |
| Coolant Entry Style | 1 |
| CoroPak | 5.1 |
| Adaptive Interface Machine Direction (ADINTMS) | Reamer 830 head - Size S12 |
| Connection Diameter | 12mm |
| Standards Met | COROMANT |
| Through Hole Function Property | Yes |
| MFR Part No. | 12006304 |
