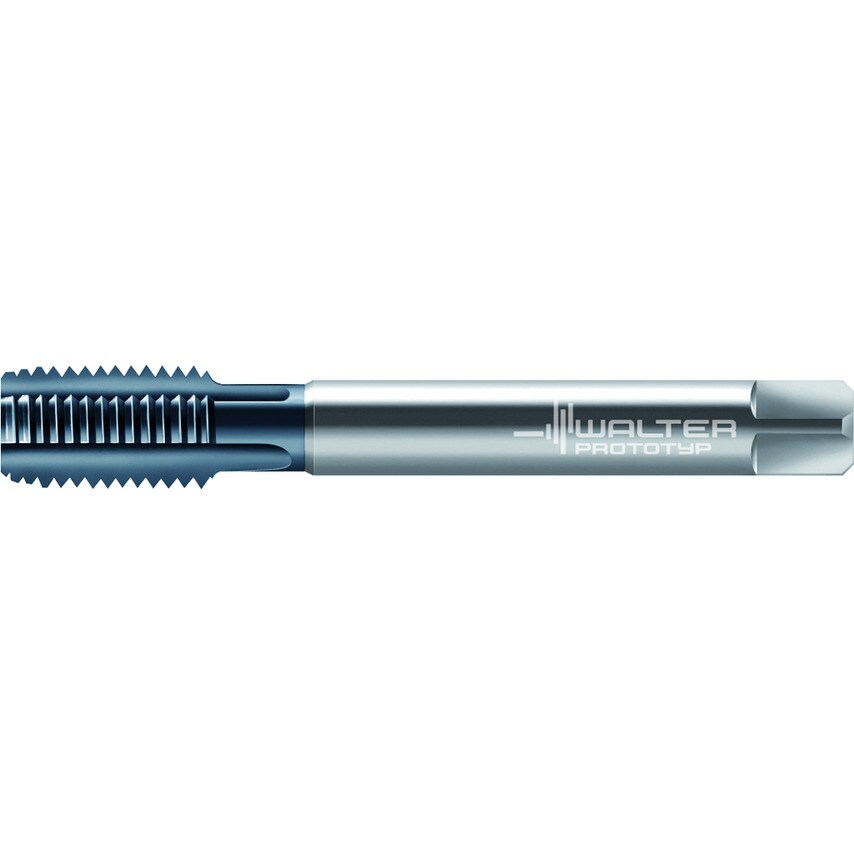

HSS-E PM machine taps Paradur Eco CI C = 2-3xTP (semi-bottom chamfer) 3xD MF/6HX DIN 374 neutral (straight) flute 0 Suitable for blind hole TICN MF 12x1.5 P=0.0591in
| Thread Pitch | 1.5mm |
| Functional Length | 100mm |
| Connection Diameter | 9mm |
| Number of Grooves | 4 |
| Cutting Edge Length | 21mm |
| Usable Length | 73mm |
| Clamping Width | 7mm |
| Thread Size | MF 12x1.5 |
| Driving Square Length | 10mm |
| MFR Part No. | 5603180 |
| Tool Designation | E2136416-M12X1.5 |
