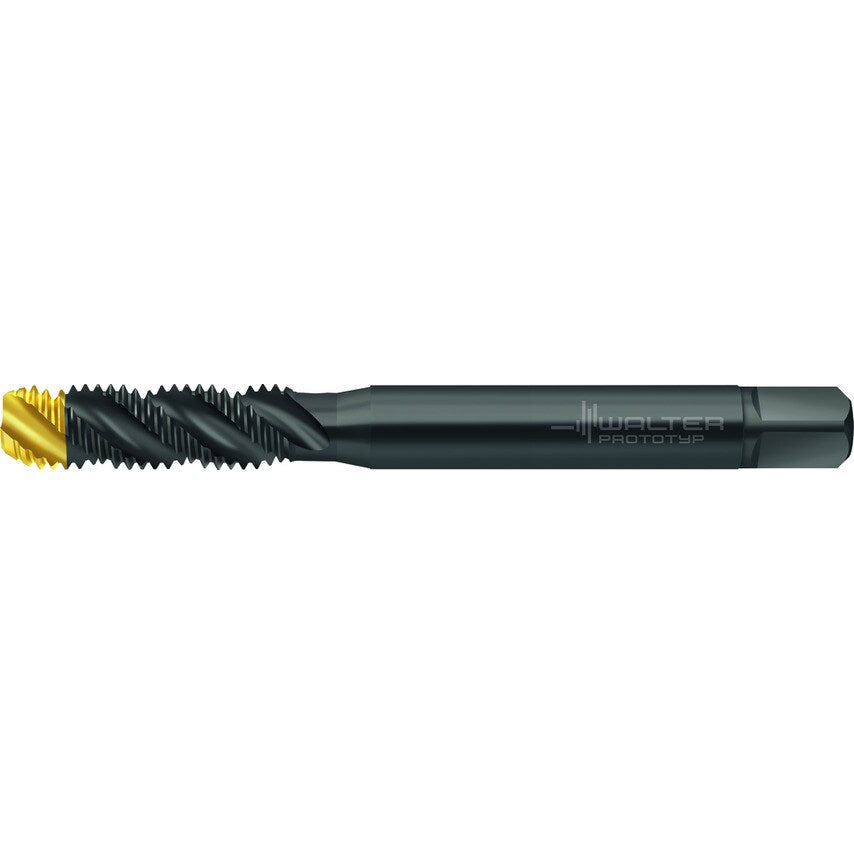

HSS-E PM machine taps Supreme C = 2-3xTP (semi-bottom chamfer) 3xD M/6HX DIN 371 right hand flute 45 Suitable for blind hole WW60AG M 6 P=0.0394in
| Clamping Width | 4.9mm |
| Thread Size | M 6 |
| Number of Grooves | 3 |
| Functional Length | 80mm |
| Tool Designation | TC120-M6-C0-WW60AG |
| Cutting Edge Length | 20mm |
| Usable Length | 30mm |
| Connection Diameter | 6mm |
| Driving Square Length | 8mm |
| MFR Part No. | 7263032 |
| Thread Pitch | 1mm |
