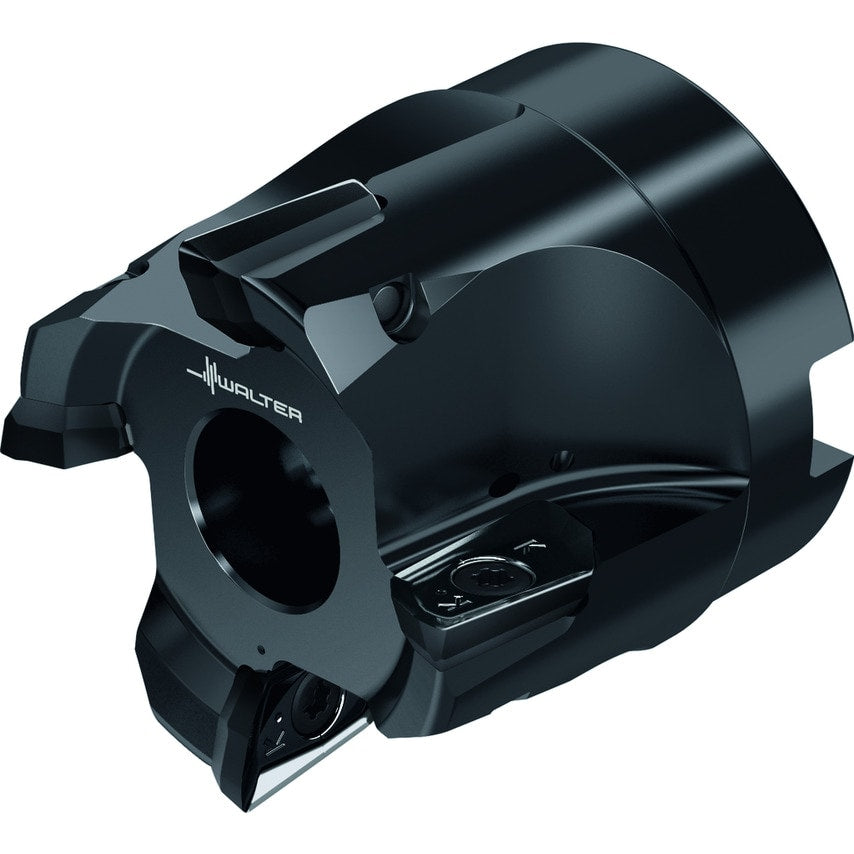

Ramping milling cutters Parallel bore DIN 138 transverse keyway =90 metric ZD .. 1504 .. Dc=1.9685in Z=4
| MFR Part No. | 6836966 |
| Connection Diameter | 22mm |
| Maximum Ramping Angle | 5\u00b0 |
| Tool Designation | M2131-050-B22-04-15 |
| Number of Inserts | 4 |
| Maximum Projection Length | 50mm |
| Cutting Edge Length | 15mm |
| Maximum Admissible Speed | 28000 |
| Number of Teeth | 4 |
| Cutting Edge Diameter | 50mm |
