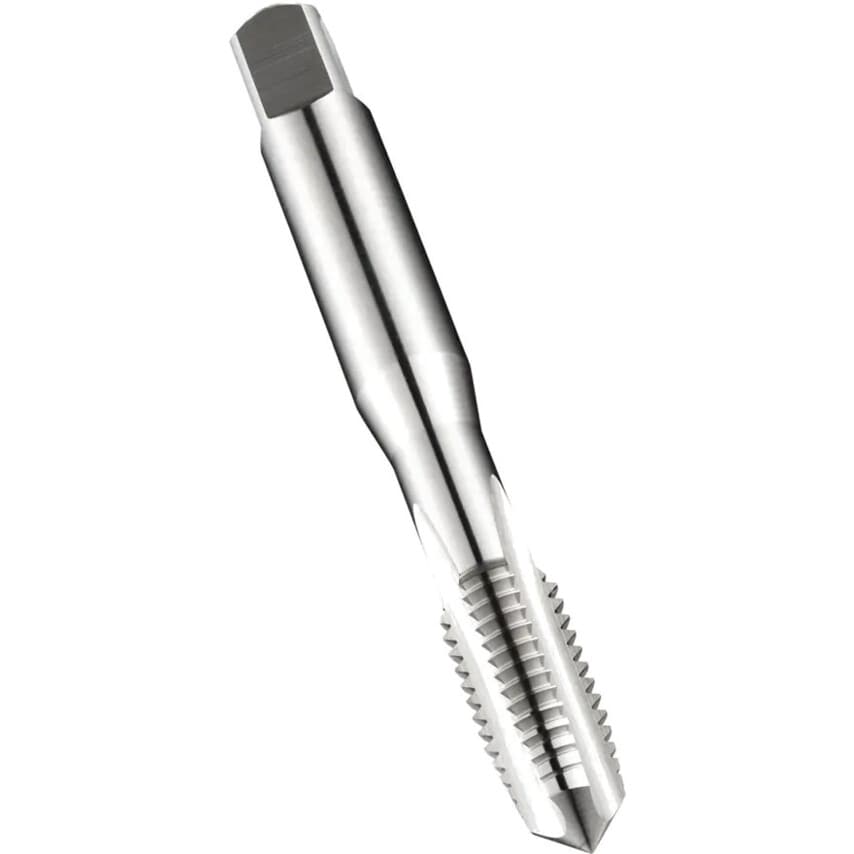

Series E500 HSS Straight Flute Second Taps are ideal for hand or machine tapping in a wide variety of materials. Manufactured to a bright finish from high speed steel for increased rigidity and durability with a second - 3-5 pitch chamfer length.
Features and Benefits
High speed steel construction for improved rigidity
Manufactured to a bright finish
Straight flute design for through or blind holes
Specifications
HSS
Bright finish
Straight flute
Manufactured to ISO 529
1.5Xd
Sizes M1 to M48
Second - 3-5 pitch chamfer length
Metric
Typical Applications
Tapping
Machining
Hand tapping
| ISO Category | K | N | P |
| Product Type | Second Tap |
| Material | HSS |
| Overall Length | 41.0mm |
| Thread Standard | Metric Coarse |
| Pitch | 0.40 |
| Thread Size | M2 |
| Number of Flutes | 3 |
| Tapping Depth | 8.0mm |
| Dimensions Standard | ISO 529 |
| Shank Diameter | 2.5mm |
| Tap Type | Straight Flute |
| MFR Part No. | E500M2NO2 |
| Class of Fit | 6H |
| Thread Direction | Right Hand |
| Series | E500 |
| Thread Length | 8mm |
| Chamfer | Second |
| Finish/Coating | Bright |
| Square Width | 2.0mm |
