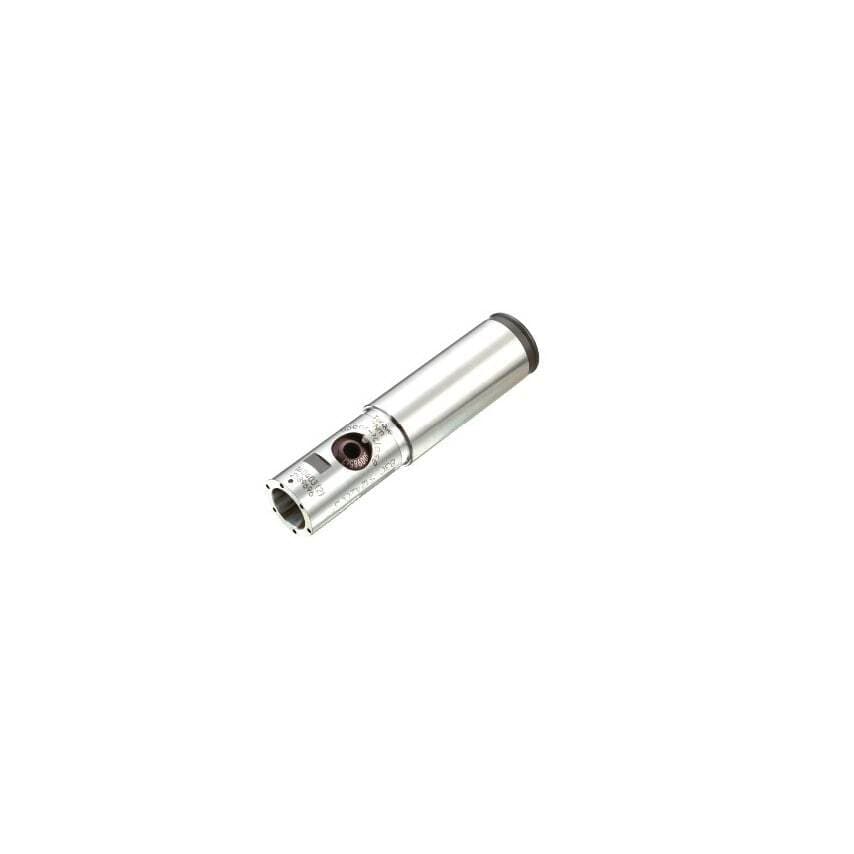

Product Range: CoroReamer 830Tool Type: ReamersCoroReamer 830 is a modular designed tool with replaceable cutting head, easy to change while still in the machine tool spindle. The cutting head is located in the holder by a precision made tapered coupling for highest concentricity and repeatability with a radial run-out of 3m (120inch)Features & Benefits- High surface finish and operation security- High penetration rate- Fast and easy head change with high accuracy < 3m (120inch)- Boring range: 1031.75 mm (0.394-1.250 inch)- Achievable hole tolerance: H7- Brazed cermet inserts in grade P10R- Effective chip evacuation by directing cutting fluid at each edge- Short and long shank options- Head changeApplication Area- For steel, nodular cast iron and malleable cast iron materials- Through holes, angled surface and cross hole
| Body Material | Steel |
| Functional Length | 211mm |
| Rotational Speed Maximum | 50000 1/min |
| CoroPak | 80 |
| Data Chip Provision | No |
| Damping Property | No |
| Coolant Exit Style Code | 103 |
| Coolant Entry Style Code | 1 |
| Through Hole Function Property | Yes |
| Balanced By Design | No |
| Unit System | Metric |
| Connection Diameter | 25mm |
| Diameter | 16mm |
| Weight | 703.7g |
| MFR Part No. | 12006503 |
| Adaptive Interface Workpiece Direction | Reamer 830 head - Size S16 |
