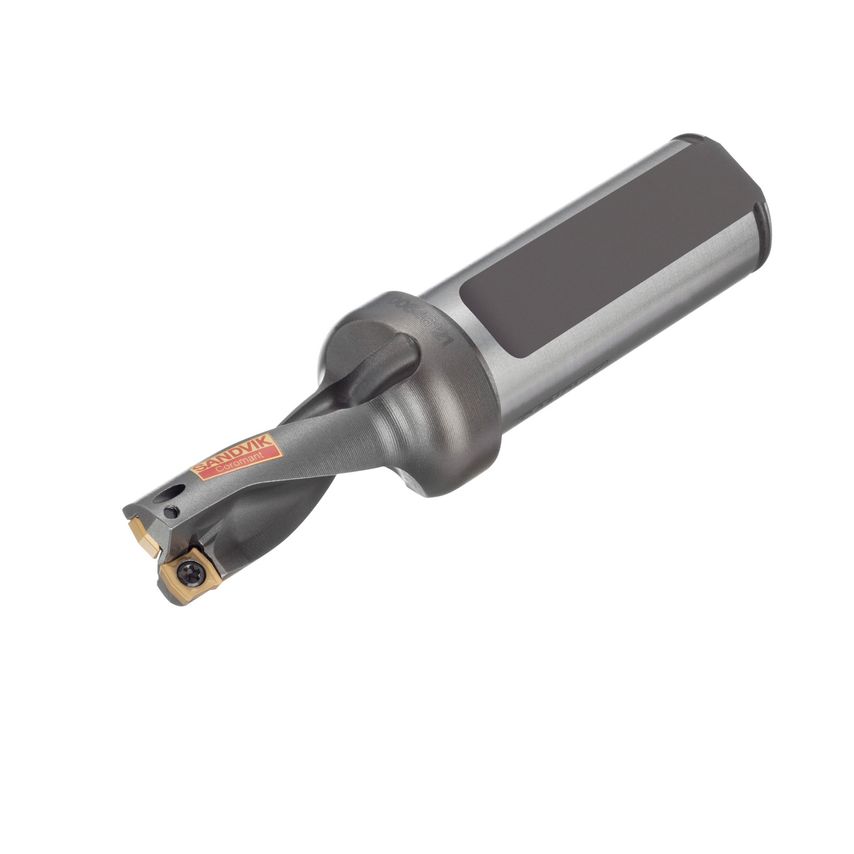

Product Range: CoroDrill 881Tool Type: Indexable drillsSecure holemaking for smaller diametersA problem solver for holes below 24 mm (0.945 inch) diameter. This complementary tool is optimized for unstable conditions, providing increased process security and stability for smaller hole diameters.Features & Benefits- Reliable hole-making for smaller diameters- Excellent choice for unstable conditions- Good choice for non-rotating applications- Easy to useApplication- Diameter range: 1423.50 mm (0.5620.937 inch)- Low to medium feed applications- Unstable conditions requiring strong, robust inserts- Non-rotating applications
| Maximum Adjustment Limit | 0.75mm |
| Tool Cutting Edge Angle | 78\u00b0 |
| Connection Diameter | 20mm |
| Usable Length Diameter Ratio | 2 |
| CoroPak | 11.1 |
| Cutting Diameter | 15.5mm |
| Functional Length | 48.7276mm |
| Usable Length | 31mm |
| Overall Length | 99mm |
| Weight | 0.21kg |
| Rotational Speed Maximum | 33000 1/min |
| Through Hole Function Property | Yes |
| Coolant Entry Style | 1 |
| Unit Measured | Metric |
| MFR Part No. | 25962241 |
