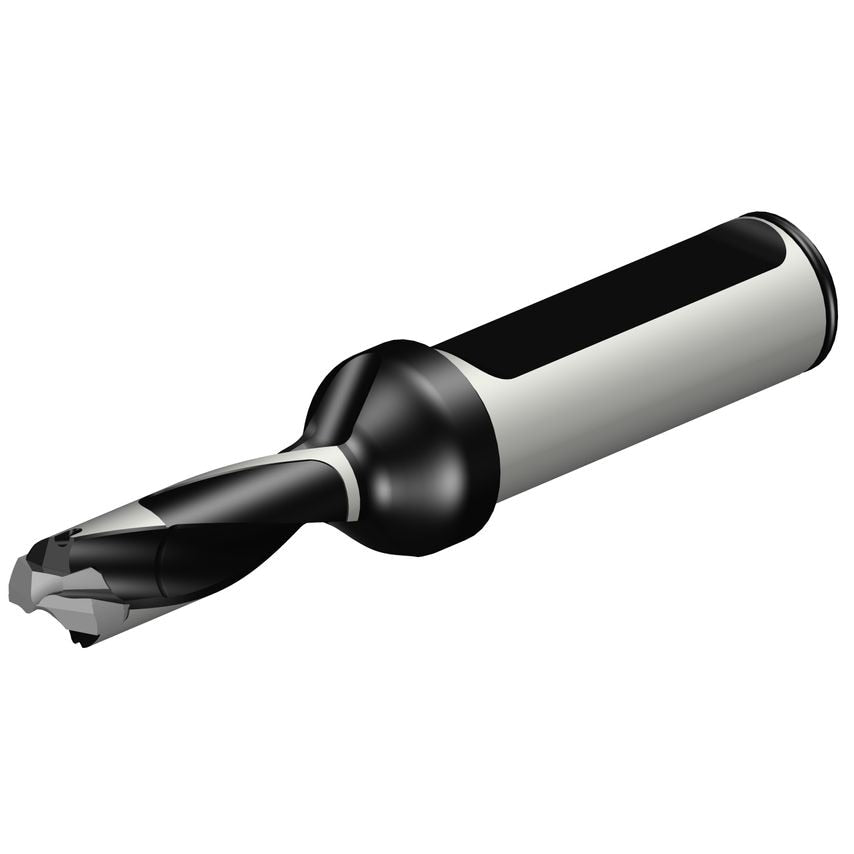

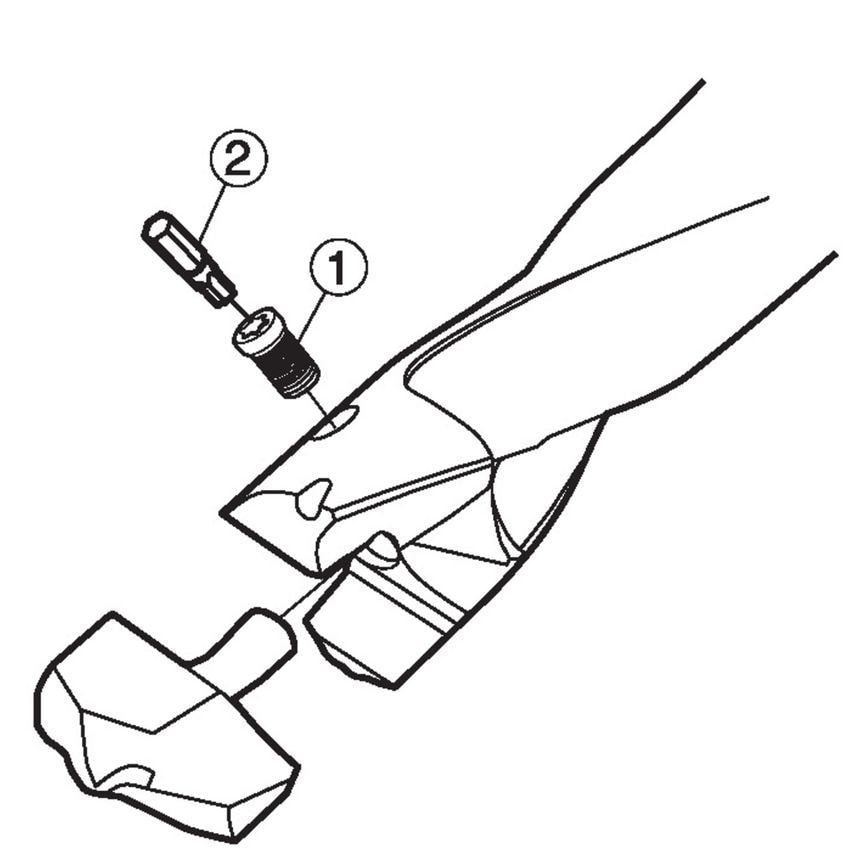

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation

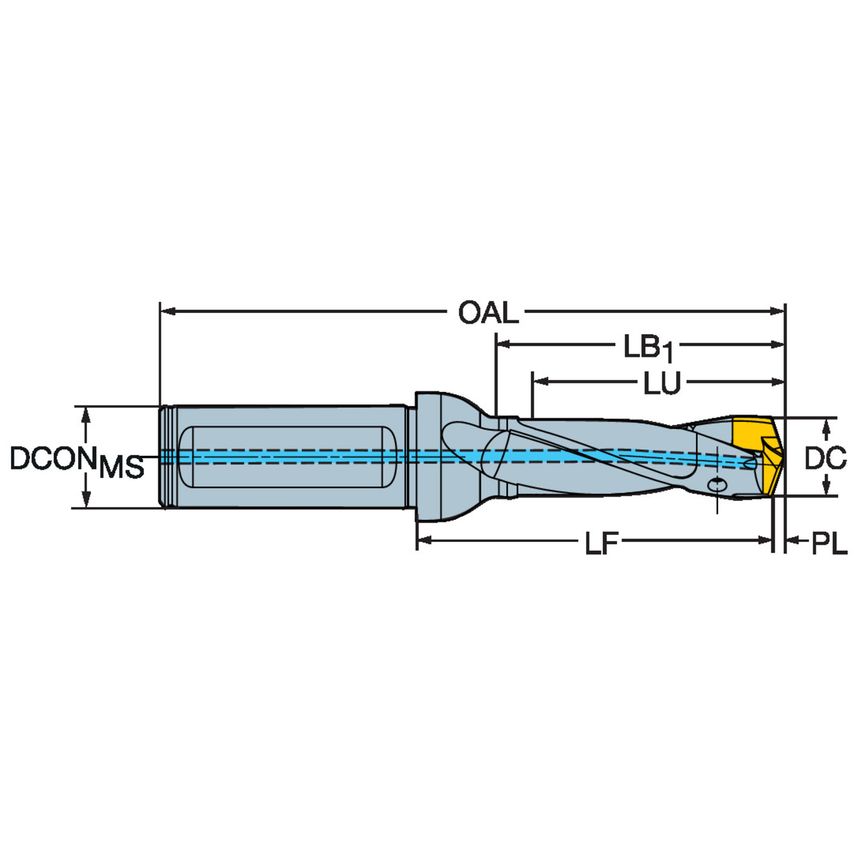

| Usable Length | 36.23mm |
| Rotational Speed Maximum | 33000 1/min |
| Through Hole Function Property | Yes |
| Functional Length | 49.25mm |
| CoroPak | 13.1 |
| Overall Length | 99mm |
| Achievable Hole Tolerance | H9 |
| Minimum Cutting Diameter | 11mm |
| Connection Diameter | 16mm |
| Maximum Cutting Diameter | 11.49mm |
| Unit Measured | Metric |
| Usable Length Diameter Ratio | 3.178070175439 |
| MFR Part No. | 26035614 |
| Cutting Diameter | 11.4mm |
| Coolant Entry Style | 1 |
| Weight | 103g |
