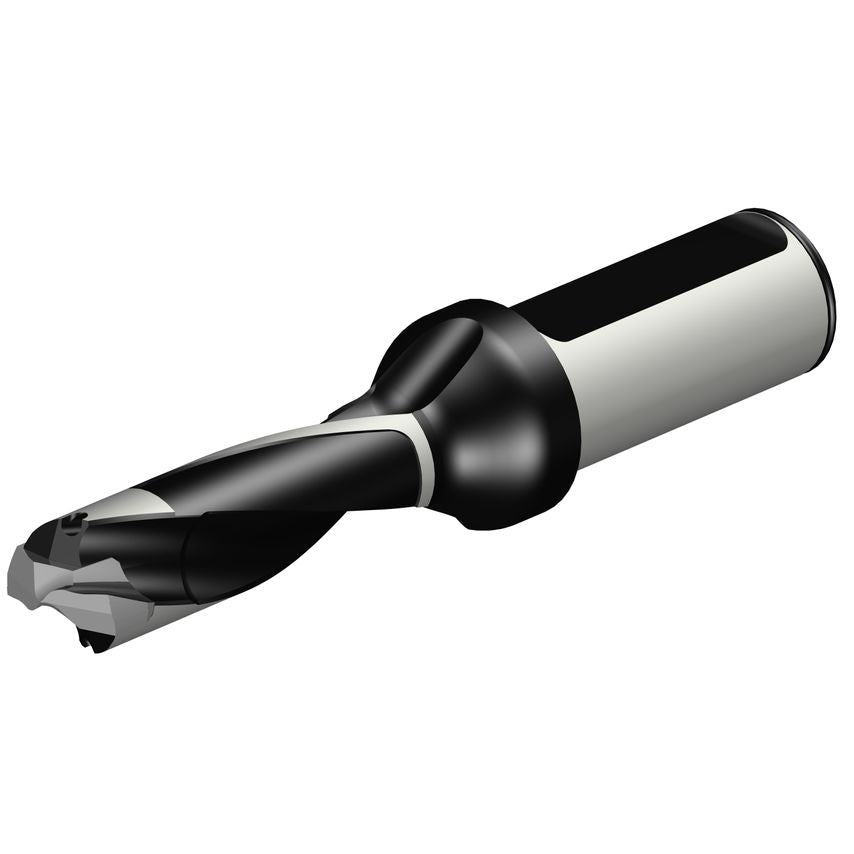

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation

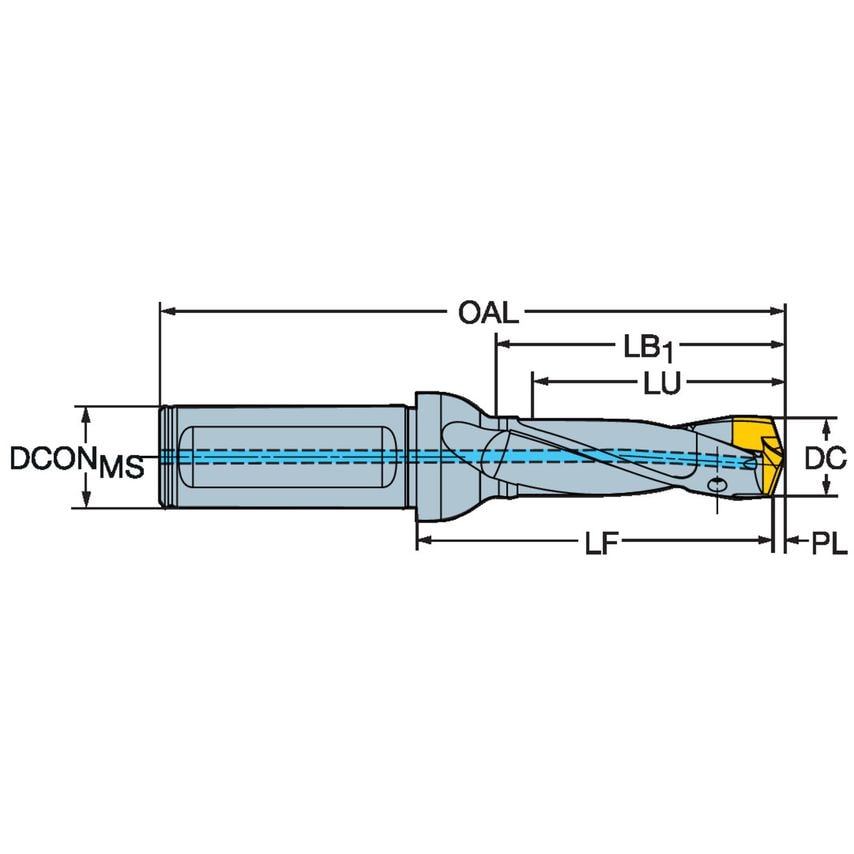

| Overall Length | 146mm |
| MFR Part No. | 26035759 |
| Connection Diameter | 25mm |
| Rotational Speed Maximum | 21500 1/min |
| Achievable Hole Tolerance | H9 |
| CoroPak | 12.1 |
| Coolant Entry Style | 1 |
| Through Hole Function Property | Yes |
| Unit Measured | Metric |
| Maximum Cutting Diameter | 20.99mm |
| Functional Length | 86.83mm |
| Usable Length Diameter Ratio | 3.165550239234 |
| Cutting Diameter | 20.9mm |
| Minimum Cutting Diameter | 20mm |
| Weight | 0.36kg |
| Usable Length | 66.16mm |
