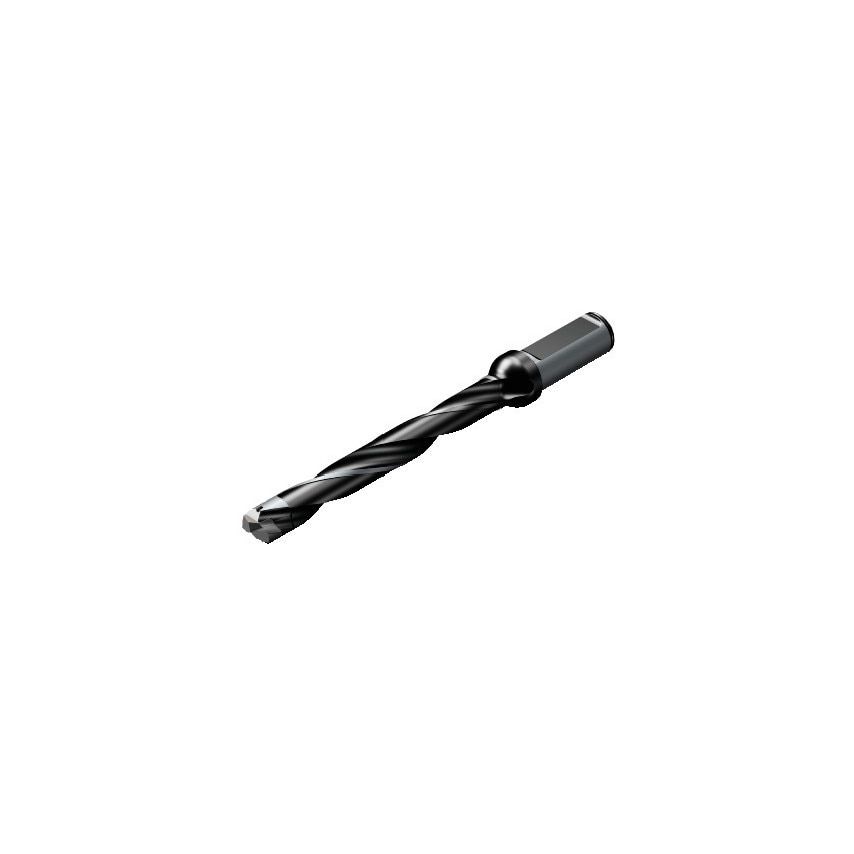

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Coolant Entry Style | 1 |
| Maximum Cutting Diameter | 23.99mm |
| Cutting Diameter | 23.9mm |
| CoroPak | 12.2 |
| Through Hole Function Property | Yes |
| Functional Length | 217.39mm |
| Rotational Speed Maximum | 6000 1/min |
| Overall Length | 277mm |
| Minimum Cutting Diameter | 23mm |
| Connection Diameter | 25mm |
| Usable Length | 195.54mm |
| Achievable Hole Tolerance | H9 |
| Usable Length Diameter Ratio | 8.181589958159 |
| Weight | 0.6kg |
| Unit Measured | Metric |
| MFR Part No. | 26239455 |
