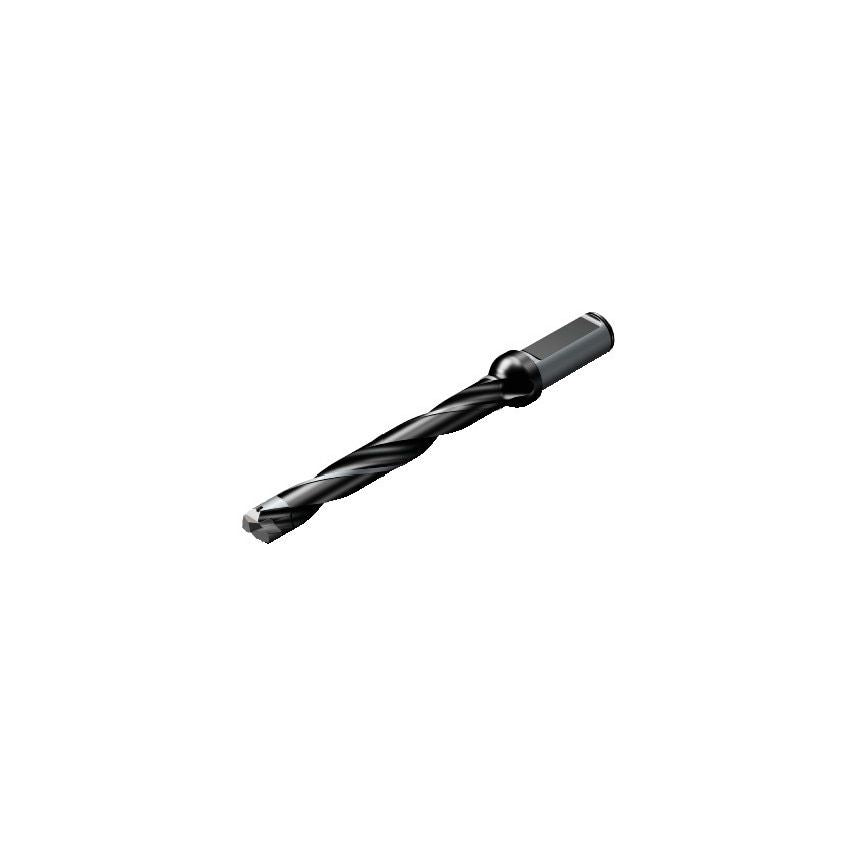

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Overall Length | 149mm |
| Usable Length | 85.54mm |
| Rotational Speed Maximum | 12000 1/min |
| Functional Length | 99.4mm |
| Unit Measured | Metric |
| Weight | 0.12kg |
| MFR Part No. | 26085523 |
| Through Hole Function Property | Yes |
| Cutting Diameter | 10.4mm |
| Minimum Cutting Diameter | 10mm |
| Maximum Cutting Diameter | 10.49mm |
| Achievable Hole Tolerance | H9 |
| Coolant Entry Style | 1 |
| Connection Diameter | 16mm |
| Usable Length Diameter Ratio | 8.225 |
| CoroPak | 13.1 |
