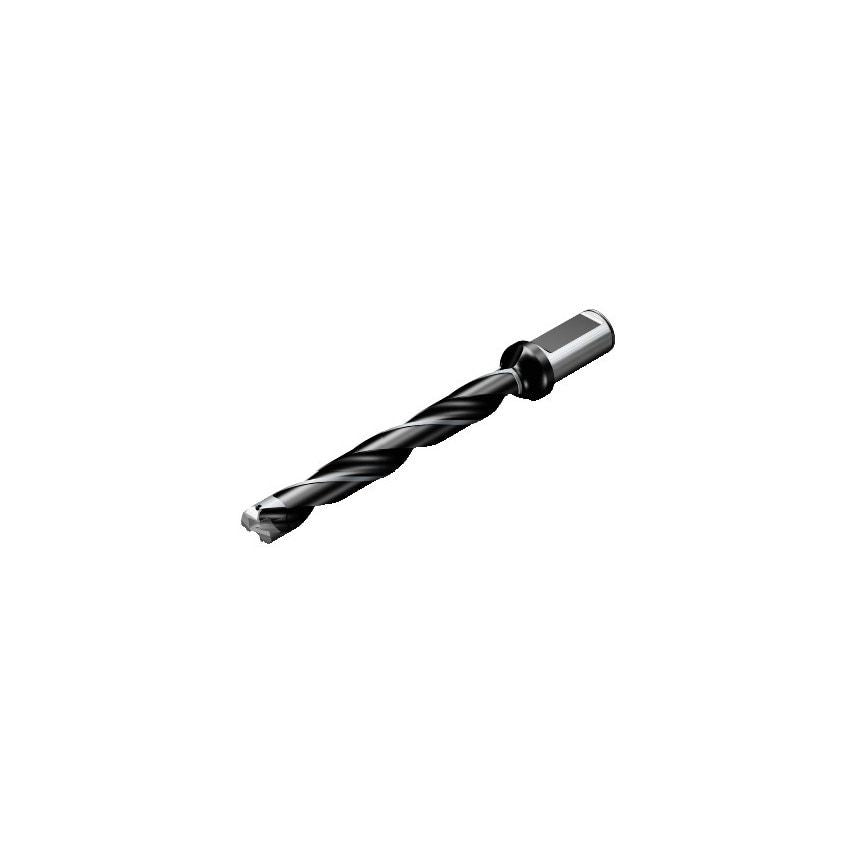

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Achievable Hole Tolerance | H10 |
| Usable Length | 121.75mm |
| Rotational Speed Maximum | 9000 1/min |
| Weight | 0.14kg |
| Maximum Cutting Diameter | 11.99mm |
| CoroPak | 14.1 |
| Through Hole Function Property | Yes |
| Minimum Cutting Diameter | 11.5mm |
| Overall Length | 185mm |
| Coolant Entry Style | 1 |
| Cutting Diameter | 11.9mm |
| Unit Measured | Metric |
| Usable Length Diameter Ratio | 10.231092436975 |
| Connection Diameter | 16mm |
| MFR Part No. | 26341263 |
| Functional Length | 135.17mm |
