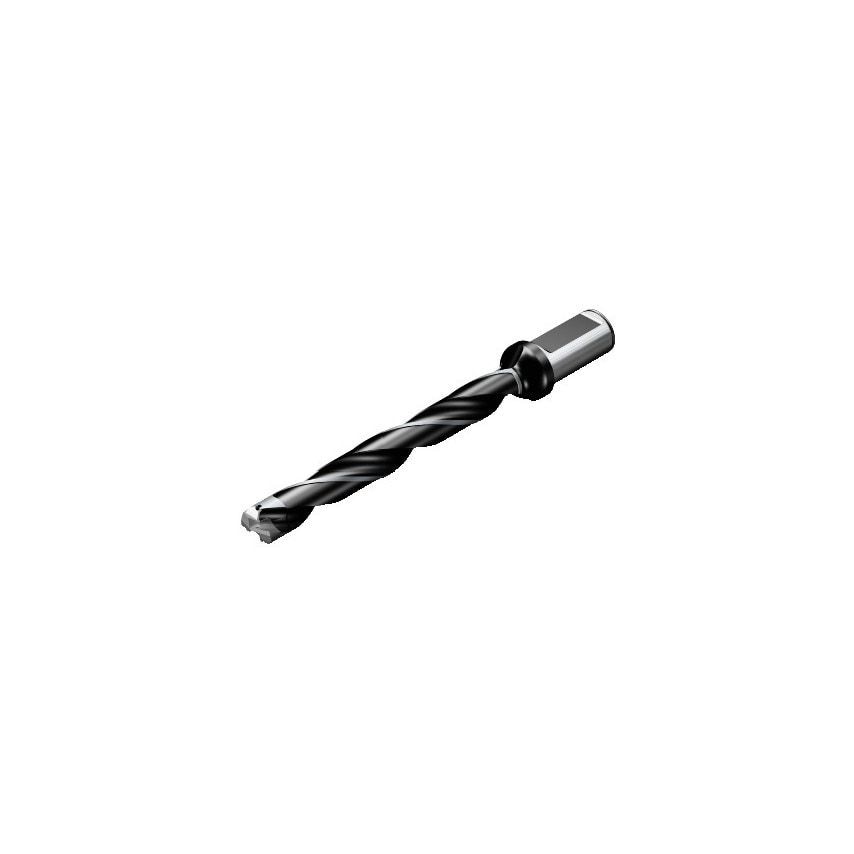

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Unit Measured | Metric |
| Achievable Hole Tolerance | H10 |
| Connection Diameter | 16mm |
| Maximum Cutting Diameter | 12.99mm |
| Minimum Cutting Diameter | 12.5mm |
| Rotational Speed Maximum | 7000 1/min |
| Overall Length | 195mm |
| Coolant Entry Style | 1 |
| MFR Part No. | 26341271 |
| CoroPak | 14.1 |
| Usable Length Diameter Ratio | 10.22480620155 |
| Through Hole Function Property | Yes |
| Weight | 0.15kg |
| Usable Length | 131.9mm |
| Functional Length | 145.02mm |
| Cutting Diameter | 12.9mm |
