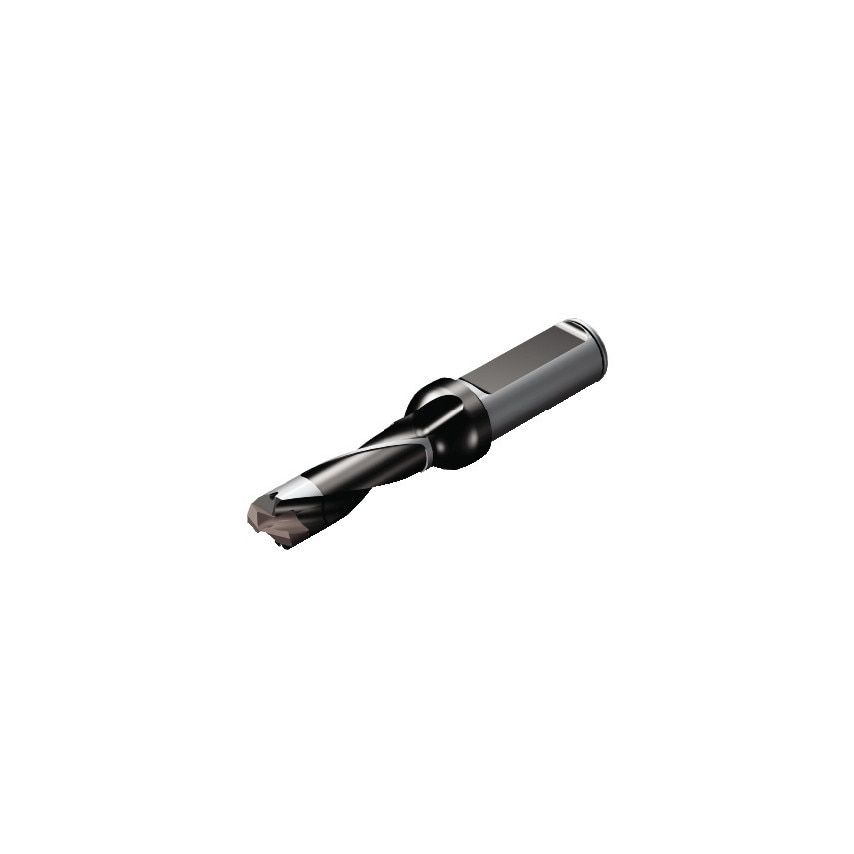

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Minimum Cutting Diameter | 31mm |
| Overall Length | 194mm |
| Cutting Diameter | 33mm |
| Maximum Cutting Diameter | 33mm |
| Achievable Hole Tolerance | H9 |
| Usable Length | 104.09mm |
| Through Hole Function Property | Yes |
| CoroPak | 14.1 |
| Rotational Speed Maximum | 16000 1/min |
| Usable Length Diameter Ratio | 3.154242424242 |
| Unit Measured | Metric |
| Connection Diameter | 32mm |
| Weight | 0.85kg |
| Functional Length | 128.92mm |
| MFR Part No. | 26426016 |
| Coolant Entry Style | 1 |
