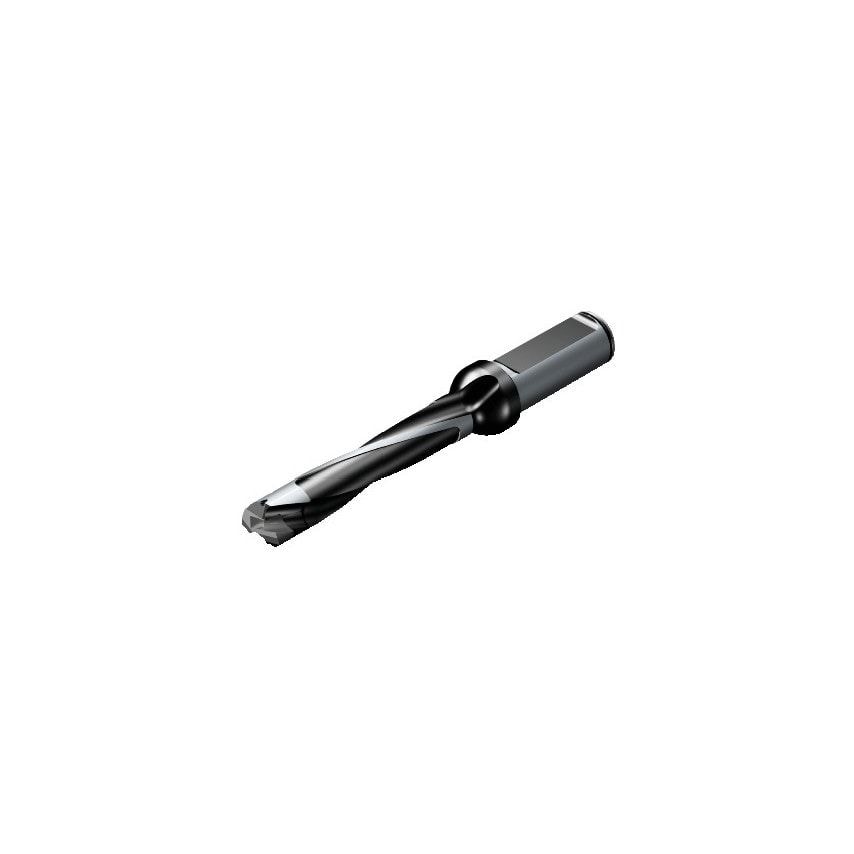

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Functional Length | 170.86mm |
| Minimum Cutting Diameter | 27mm |
| Overall Length | 235mm |
| Through Hole Function Property | Yes |
| Maximum Cutting Diameter | 27.99mm |
| Coolant Entry Style | 1 |
| Unit Measured | Metric |
| Usable Length Diameter Ratio | 5.243272727273 |
| Weight | 861g |
| Usable Length | 144.19mm |
| Achievable Hole Tolerance | H9 |
| MFR Part No. | 26425993 |
| CoroPak | 14.1 |
| Rotational Speed Maximum | 10500 1/min |
| Connection Diameter | 32mm |
| Cutting Diameter | 27.5mm |
