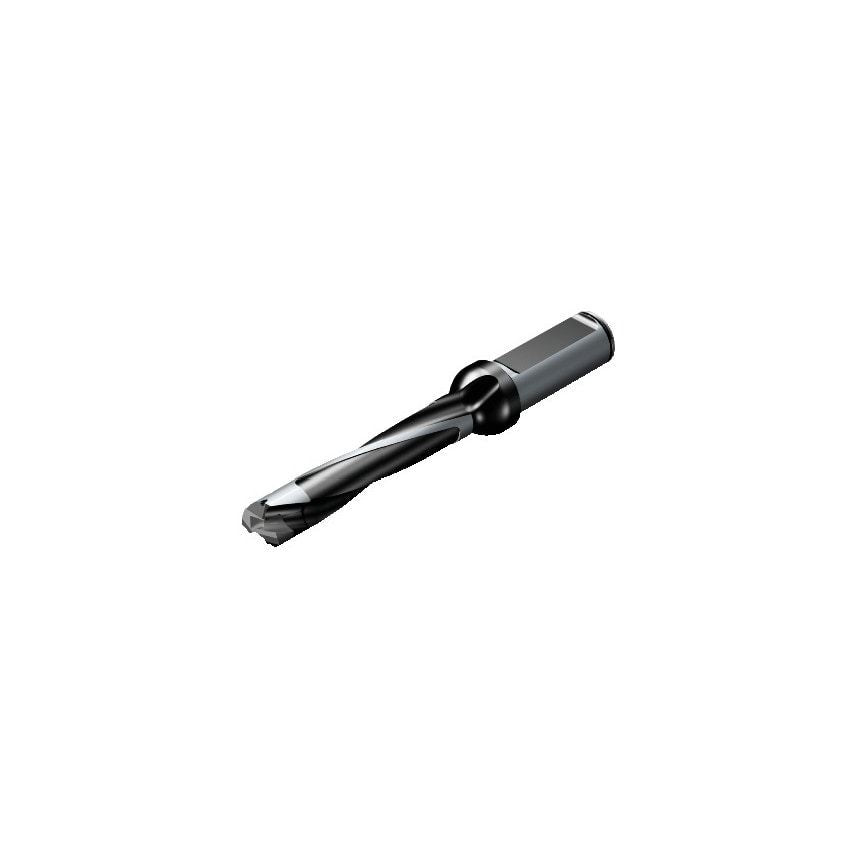

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation
| Unit Measured | Metric |
| Functional Length | 194.92mm |
| CoroPak | 14.1 |
| Minimum Cutting Diameter | 31mm |
| Cutting Diameter | 33mm |
| Through Hole Function Property | Yes |
| Usable Length Diameter Ratio | 5.154242424242 |
| MFR Part No. | 26426017 |
| Coolant Entry Style | 1 |
| Connection Diameter | 32mm |
| Weight | 1074g |
| Rotational Speed Maximum | 9500 1/min |
| Overall Length | 260mm |
| Usable Length | 170.09mm |
| Achievable Hole Tolerance | H9 |
| Maximum Cutting Diameter | 33mm |
