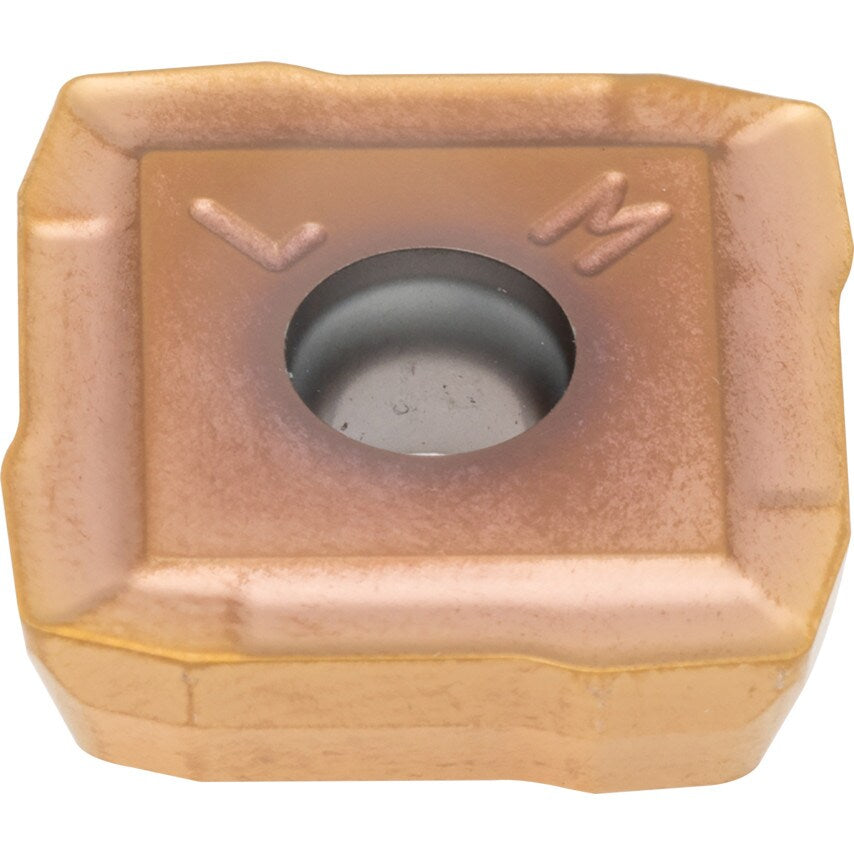

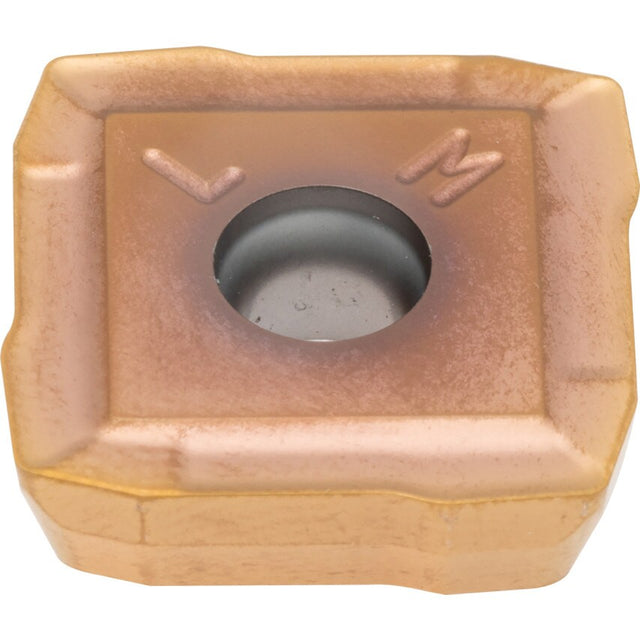

CoroDrill 880-C-LM inserts feature a geometry ideal for long chipping materials, e.g. low carbon steel and stainless steels at medium feeds. The insert features a sharp positive edge with a hard carbide construction and PVD TIALN for excellent durability when faced with heat and wear.
Features and Benefits
Hard carbide construction for increased rigidity
LM geometry suited for long chipping materials
Sharp positive edge for maximum cutting performance
PVD TIALN coating for efficient heat and wear resistance
Standards
Insert Usage Code - C
Insert Grade 1044
(P40)(M35)(K25)(N20)(S35)(H20)
Typical Applications
Low carbon steel
Stainless steel
| Material | Stainless Steel | Steel |
| ISO Designation | 880-09 06 08H-C-LM |
| Manufacturer Grade | 1044 |
| Product Type | Inserts |
| Drilling System | CoroDrill 880 |
| MFR Part No. | 12233524 |
| Series | 880 |
