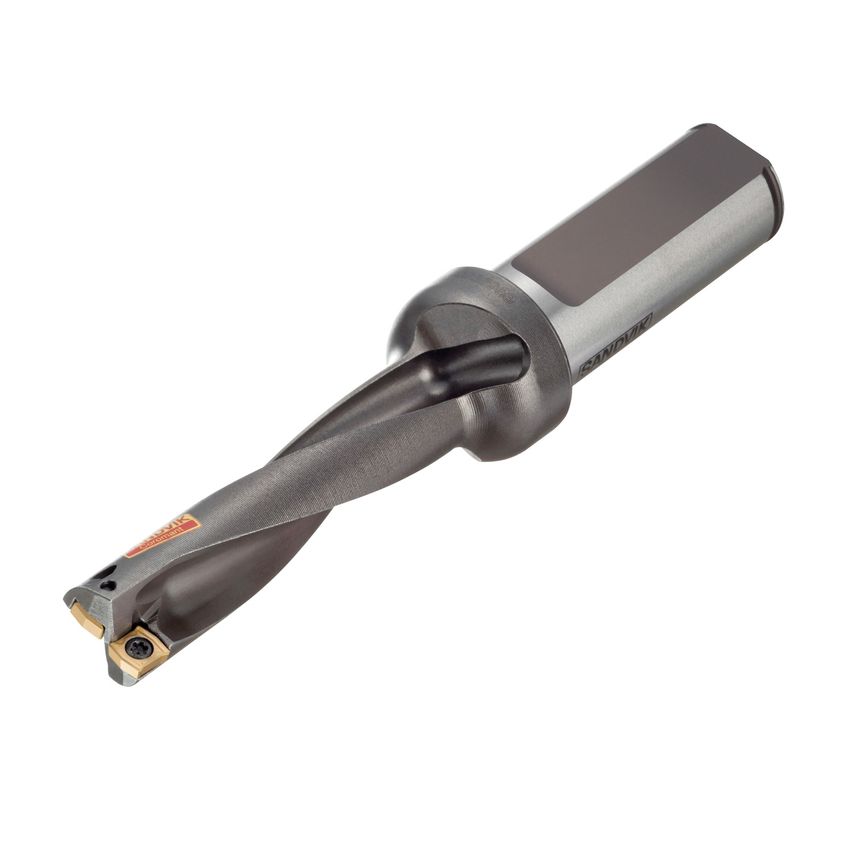

Product Range: CoroDrill 881Tool Type: Indexable drillsSecure holemaking for smaller diametersA problem solver for holes below 24 mm (0.945 inch) diameter. This complementary tool is optimized for unstable conditions, providing increased process security and stability for smaller hole diameters.Features & Benefits- Reliable hole-making for smaller diameters- Excellent choice for unstable conditions- Good choice for non-rotating applications- Easy to useApplication- Diameter range: 1423.50 mm (0.5620.937 inch)- Low to medium feed applications- Unstable conditions requiring strong, robust inserts- Non-rotating applications
| Usable Length Diameter Ratio | 4 |
| Through Hole Function Property | Yes |
| Overall Length | 123.99mm |
| Cutting Diameter | 14.2748mm |
| Usable Length | 57.0992mm |
| CoroPak | 11.1 |
| Connection Diameter | 19.05mm |
| Unit Measured | Imperial |
| Coolant Entry Style | 1 |
| Rotational Speed Maximum | 19000 1/min |
| Functional Length | 73.7178mm |
| MFR Part No. | 5962371 |
| Tool Cutting Edge Angle | 84\u00b0 |
| Weight | 0.21kg |
| Maximum Adjustment Limit | 0.89mm |
