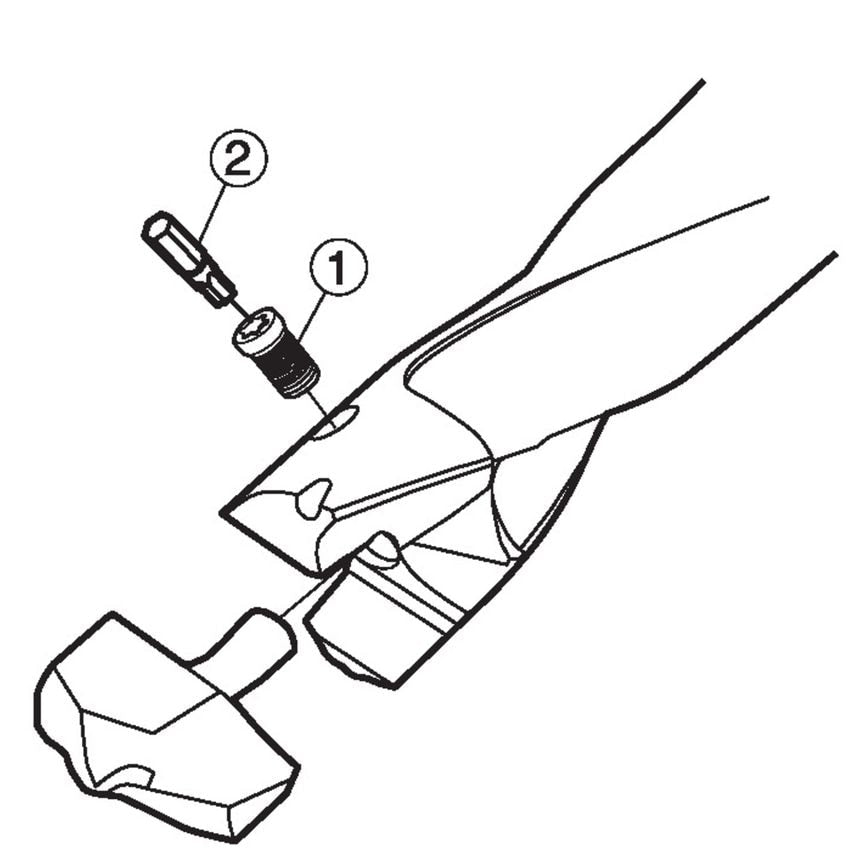

Product Range: CoroDrill 870Tool Type: Exchangeable tip drillsCoroDrill 870 exchangeable-tip drill saves time, increases productivity and reduces cost per hole. Tailored to suit your needs, CoroDrill 870 is designed to optimize applications through diameter range, steps and length possibilities for the H9-H10 hole-tolerance area.Features & Benefits- Low cost per hole and excellent hole quality- Easy handling and secure tip changing- Optimized chip control and evacuation

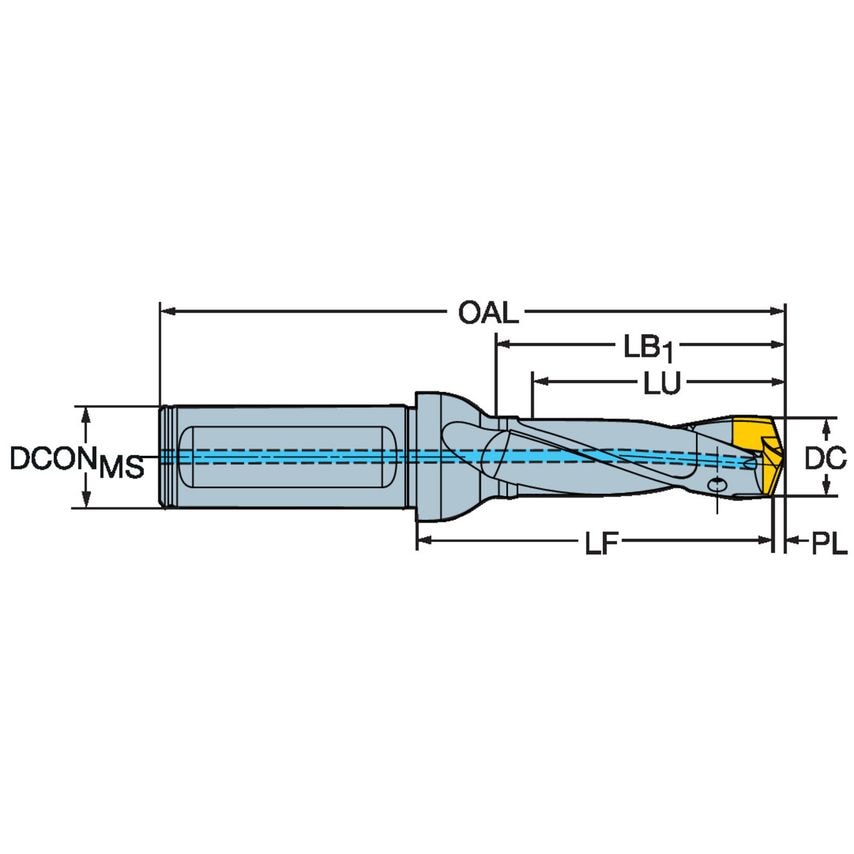

| Usable Length | 37.82mm |
| Overall Length | 101mm |
| CoroPak | 15.88 |
| Minimum Cutting Diameter | 11.5mm |
| Cutting Diameter | 15.2mm |
| Maximum Cutting Diameter | 11.99mm |
| Connection Diameter | 24.5mm |
| Coolant Entry Style | 1 |
| Through Hole Function Property | Yes |
| Unit Measured | Imperial |
| Achievable Hole Tolerance | H9 |
| Weight | 104g |
| MFR Part No. | 6035626 |
| Rotational Speed Maximum | 33000 1/min |
| Usable Length Diameter Ratio | 3.178151260504 |
| Functional Length | 12.7mm |
